Specifications
Brand Name :
US CONEC /SENKO / Customized
Model Number :
MPO-12 LC
Certification :
ISO9001:2015, ISO140001:2015, ROSH
Place of Origin :
Shenzhen China
MOQ :
10pcs
Payment Terms :
T/T, Western Union
Supply Ability :
50K/Month
Delivery Time :
3-8 days
Packaging Details :
PE bag
Polarity :
A/B/C
Loss data :
Elite loss/Standard loss
Connector type :
Female / Male
Cable color :
Orange / Violet / Purple
Cable Material :
LSZH / OFNP / PVC
Fiber type :
OM1 / OM2 / OM4
Connector Type :
LC / FC/ SC
Breakout lengthe :
0.5M / 1M /1.5M / Customized
Description

0.5M Mutilmode OM1 OM2 OM4 MPO LC DX Fanout Cable

Mutilmode OM1 OM2 OM4 MPO Breakout Patch Cord 12 core MPO to 6 LC-DX Fanout Cable

Description:

4cores/8cores/12cores/24cores breakout fan-out patch cords, MPO/MTP-SC OM1/OM2/OM3. Key up, Key down types. Short length(<=35cm) used inside of module box.

We supply MTP and MPO fiber optic cables. These are available in Female to female or a male to male and male to female configurations. The male version has MTP pins. These can be made with 12 fiber MTP connectors, 24 Fiber MTP connectors, 48 Fiber MTP connector variations. Many additional options and combinations are available. All multi fiber optic cables are customizable.

Features:

MTP/MPO standard compliant multifibre connector

LC (SFF data center standard), SC discrete interface

OS1/2, OM3, OM4 fibre grades (OM1 and OM2 available)

12 and 24 fibre versions - 12 LC (Duplex) / SC (Simplex) optical parts

Polarity A (standard), B or C

Factory terminated and tested

High performance zirconia sleeve adaptors

Applications:

The Data Center application with high dense degree environment

The optical fiber to the building

The internal connector application in fiber equipment.

Specifications:

ype/Performance Singlemode(APC/UPC polish) Multimode(PC / Flat Polish)
Standard Elite Low Loss Standard Elite Low Loss
Maximum Insertion Loss ≤ 0.6dB ≤ 0.35dB ≤ 0.5dB ≤ 0.35dB
Return Loss ≥60 dB ≥20 dB
Operating Temperature -20°C to +70°C
Test Wavelength 1310nm 850nm


Order infomation:

Range of Mode Single mode or Multi mode
Cable Type Simplex, Duplex Ziocord. or Multi-cores
Connector Style SC, FC, ST, LC, MTRJ, E2000, MU, MPO /MTP.etc
Polish or Ferrule Interface Type PC, UPC, APC
Cable Diameter 0.9mm, 1.2mm, 1.6mm, 1.8mm,2.0mm, 3.0mm
Outer Jacket PVC /LSZH/OFNP
Jacket Color SM Yellow | OM1, OM2 Orange | OM3 Aqua | OM4 Aqua or Violet | OM5 Lemon Green
Durability 500 cycles(0.2 dB max increase). 1000mate/de mate cycles
Operating Temp. -25℃ to +70℃
Storage Temp. -40℃ to +85℃

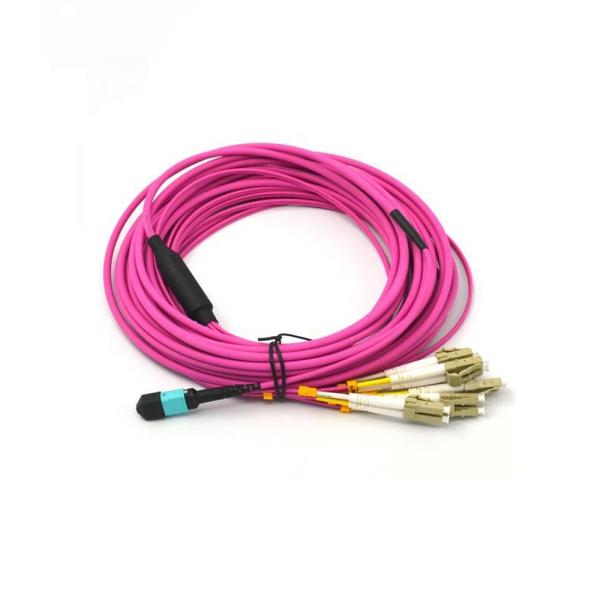

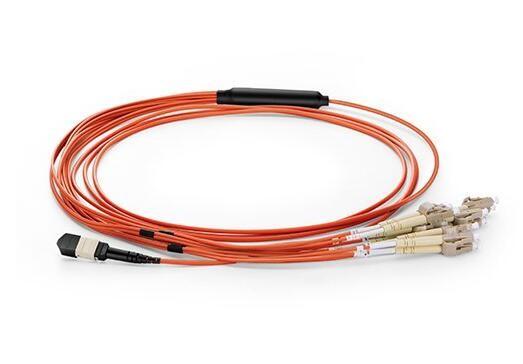

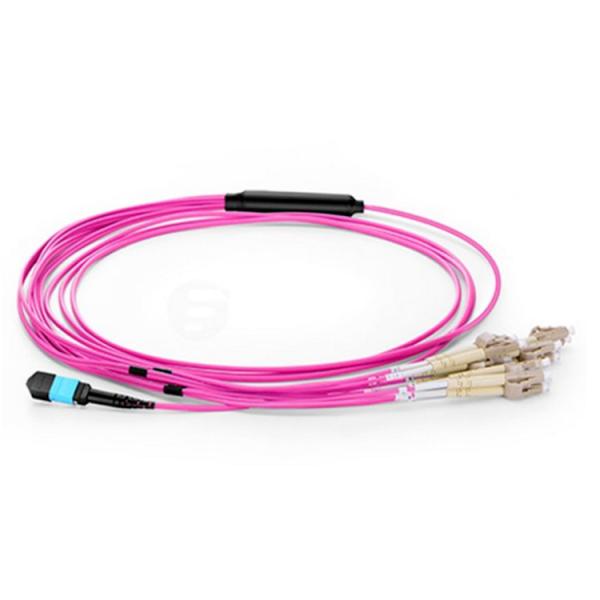

Drawing and Product Picture:

0.5M Mutilmode OM1 OM2 OM4 MPO LC DX Fanout Cable

0.5M Mutilmode OM1 OM2 OM4 MPO LC DX Fanout Cable

0.5M Mutilmode OM1 OM2 OM4 MPO LC DX Fanout Cable
