High Return Male to Female Fiber Optic 5dB SC APC Attenuator
High Return Male to Female Fiber Optic 5dB SC APC Attenuator
High Return Male to Female Fiber Optic 5dB SC APC Attenuator
High Return Male to Female Fiber Optic 5dB SC APC Attenuator
High Return Male to Female Fiber Optic 5dB SC APC Attenuator
High Return Male to Female Fiber Optic 5dB SC APC Attenuator
Specifications
Brand Name :
CY COM
Model Number :
SC
Certification :
ISO ROHS
Place of Origin :
Shenzhen China
Product name :
Attenuator
Fiber Mode :
Single mode, Multimode
Attenuation Accurancy :
1-9dB ±0.5dB, 10-30dB ±10%
Attenuation range :
0-30dB
Return loss :
PC≥45 dB; UPC≥50 dB ;APC ≥60 dB
Repeatability :
1000 times
Operating Wavelength (nm) :
1260~1620(SM)
Operating temperature :
-40-80°C
Color :
Blue
Connector :
SC
Description
High Return Male to Female Fiber Optic 5dB SC APC Attenuator
1dB 2dB 3dB 4dB 5dB SC Male to Female Fiber Optic 5dB SC APC Attenuator
Product Description
1. Introduction:

Fiber optic attenuator is a passive device used to reduce the amplitude of a light signal without significantly changing the wave form itself. This is often a requirement in Dense Wave Division Multiplexing (DWDM) and Erbium Doped Fiber where the receiver cannot accept the signal generated from a high-power light source.

2. Fiber Optical Attenuator Features:

1. Design flexibility with various connector style choices and with various attenuation levels

2. Excellent optical performance

3. Variety of fixed attenuation levels.1 to 16 db(in 1db increments),20,25,and 30 db

4. Low reflecation to meet stringent system tequirements

5. Backward compatible with existing transmission equipment

3. Fiber Optical Attenuator Applications:

1. Erbium Doped Fiber Amplifiers (EDFA)

2. Dense Wave Division Multiplexers (DWDM)

3. Optical Network Equipments,optical Test Equipments

4. Overpowered fiber optic systems

4. Technical parameters:

PARAMETER UNIT FIXED ATTENUATORS(FC/SC/ST/LC)

VARIABLE ATTENUATORS

(FC/SC)
Operation wavelength nm 1310,1550 1200-1600
Attenuation Value dB

±0.5dB (<10dB)

±1.0dB (>10dB)

 0-30
Max. Optical Input Power MW 500 500
Max. PDI dB ≤0.1 ≤0.1
Return Loss dB PC ≥45
UPC ≥55
APC ≥60
Operating Temperature C -30~+75 -30~+75
Storage Temperature C -40~+85 -40~+85

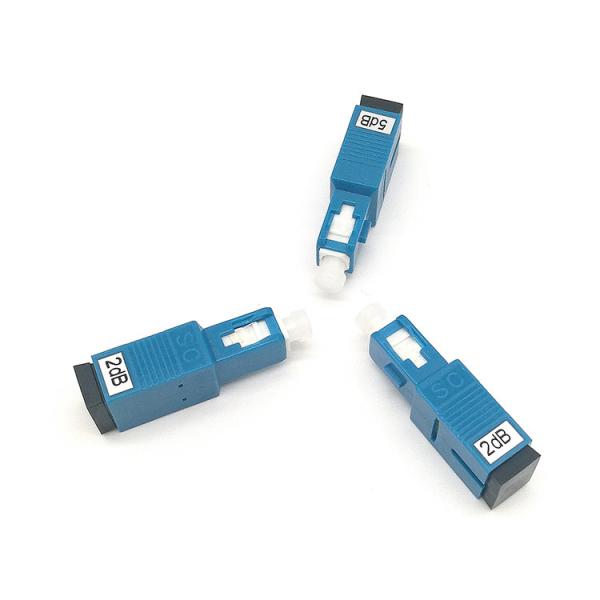

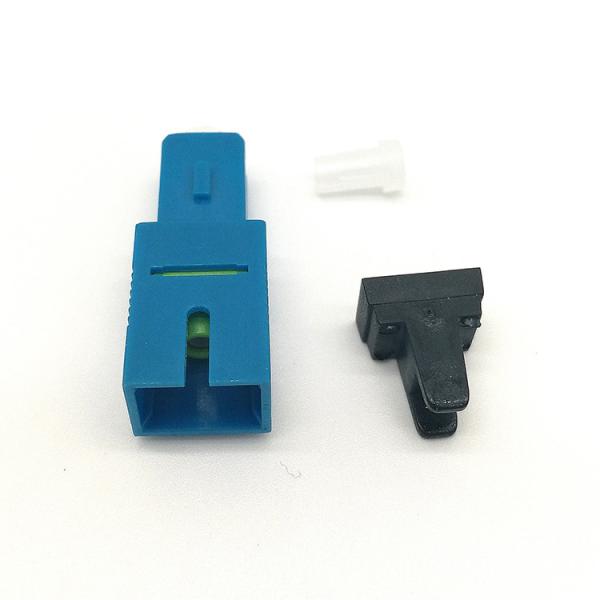

Product picture

High Return Male to Female Fiber Optic 5dB SC APC Attenuator

High Return Male to Female Fiber Optic 5dB SC APC Attenuator

Factory picture

High Return Male to Female Fiber Optic 5dB SC APC Attenuator
