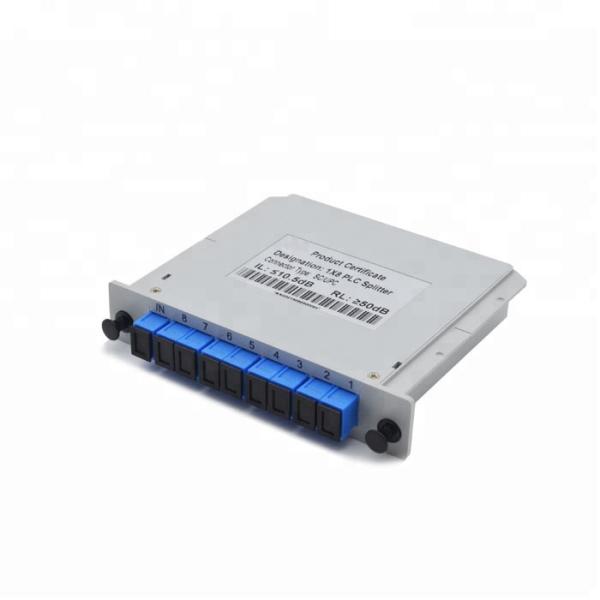

LGX Cassette Type 1x8 Fiber Optic Splitter
LGX Cassette Type 1x8 Fiber Optic Splitter
LGX Cassette Type 1x8 Fiber Optic Splitter
LGX Cassette Type 1x8 Fiber Optic Splitter
LGX Cassette Type 1x8 Fiber Optic Splitter
LGX Cassette Type 1x8 Fiber Optic Splitter
Specifications
Brand Name :
CY COM
Model Number :
1*2 FTB splitter
Certification :
ISO9001/ISO14001/OHSAS18001/TLC
Place of Origin :
Shenzhen China
MOQ :
20pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20K/ Month
Delivery Time :
8-9 working days
Packaging Details :
plastic box or Individual gift carton box
Model Type :
lgx cassette module 1x8 1x16 box fiber optic plc splitter
Length :
Customized Lengths(1m/2m/3m...+1
Model :
SINGLE MODE / MUTI MODE
Insertion Loss (dB) :
≤0.25
Connector :
SC FC LC ST APC
Description

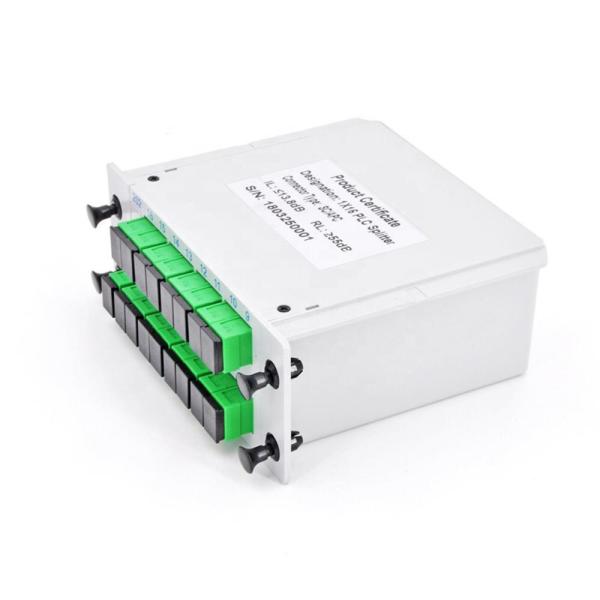

Factory supply LGX cassette module 1x8 1x16 box fiber optic plc splitter ​

Description:

Fiber optic coupler, is a device applicated in optical fiber systems with one or more input fibers and one or several output fibers.For the fused optical splitter,It can be divided into different ratios.such as 50/50 if the split is even, or 80/20 if 80% of the signal goes to one side and only 20% to the other.As a result of its great funciton,Optical splitter is a very important part in passive opitc networks (PON).FTB Fused fiber splitter (coupler) can do Singlemode (1310/1550nm) and Multimode (850nm).Cable diameter can be 0.9mm,2.0mm,3.0mm ,Single window,dual window and three window all we can supply .


1. Features:
1. 1xN and 2xN splitters tailored per application
2. Low Insertion Loss and low PDL
3. Superior Uniformity
4. Wide Operation Wavelength
5. Wide Operation Temperature
6. High Stability and Reliability
7.Telcordia GR-1209 and GR-1221 Compliance
8. YD/T 2000.1-2009 Compliance (TLC Product Certificate Compliance)

2. Applications:

Optic communication system
LAN
CATV
Test instrument
Fiber optic sensor

3. Specification:

Grade
Parameter

Grade“Premium”
Operating Wavelength (nm)1310&1550nm,others on request
Bandwidth (nm)±40nm
Excess Loss (dB)≤0.1dB(0.06dB TYP )
Coupling Ratio (%)50/5040/6030/7020/80
Typ. Insertion Loss (dB)3.14.2/2.45.4/1.77.2/1.1
Max. Insertion Loss (dB)3.44.5/2.75.8/2.07.6/1.5
Polarization Dependent Loss (dB)0.10.10.15/0.10.15/0.1
Thermal Stability (dB /℃)≤0.2dB
Directivity (dB)≥55 dB(≥60dB 2×2)
Operating Temperature(℃)-20℃to +70℃
Package Type1.bare fiber1:900um loose tube;2.Φ0.9& tube Φ3.0tube:900um loose tube or3mm loose cable (or 2mm);3Pigtail Type l4.19″Standard rack type
Lead length1 meter, others on request
Package Dimensions(mm)Φ3×5490×20×10100×80×10


LGX Cassette Type 1x8 Fiber Optic Splitter LGX Cassette Type 1x8 Fiber Optic Splitter

LGX Cassette Type 1x8 Fiber Optic SplitterLGX Cassette Type 1x8 Fiber Optic Splitter
LGX Cassette Type 1x8 Fiber Optic Splitter
