SC APC 9/125um OS2 Single Mode 0.9mm Fiber Optic Pigtail
SC APC 9/125um OS2 Single Mode 0.9mm Fiber Optic Pigtail
SC APC 9/125um OS2 Single Mode 0.9mm Fiber Optic Pigtail
SC APC 9/125um OS2 Single Mode 0.9mm Fiber Optic Pigtail
Specifications
Brand Name :
CY COM
Model Number :
SC/APC
Certification :
RoHS,ISO9001
Place of Origin :
Shenzhen China
MOQ :
10PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30000pcs per day
Delivery Time :
3-5 working days
Packaging Details :
PE bag or plastic box and Carton box
Length :
1m or customized
Cable color :
Colors
Connector :
SC,FC,LC
Ferrule End-face :
APC
Cable diameter :
0.9mm/2.0mm/3.0mm
Return loss :
>50dB
Fiber Count: :
4/6/8/12 Fibers
Description

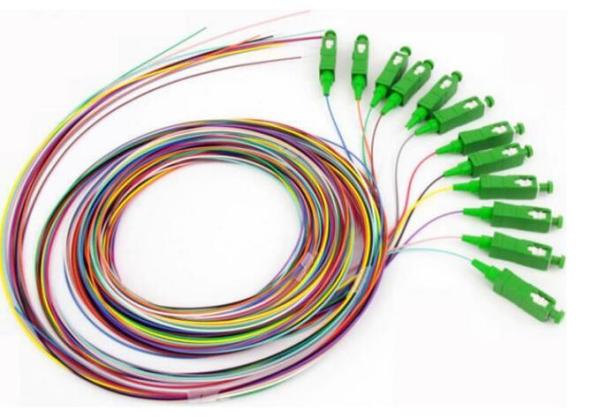

SC APC 9/125um OS2 Single Mode 0.9mm Fiber Optic Pigtail
Fiber optic pigtail SC/APC 12-colour pack 9/125um OS2 Single Mode 0.9mm PVC/OFNR/LSZH G657A 1m
Description:
CY COM 250um,900um 4/6/8/12 core multi-fiber fan-out pigtails with different connectors of SC, LC,FC, ST , it come with UPC or APC polish. the pigtails can be singlemode, multimode or OM3, with PVC or LSZH jacket. Widely used in CATV, FTTH/FTTX, telecomunication networks, premise installations, Data processing networks, LAN/WAN network, and more
Features :
Complying with IEC, Telcordia GR-326-CORE, YD-T 1272.3-2005,standard.
Low insertion loss, high return loss
Good in repeatability and exchangeability
High dense connection, easy for operation
Application:
Telecommunication
Computer networks
CATV networks Active device termination
Instrumentation

Parameters

Parameter Singlemode Fiber Multimode Fiber
PC UPC APC PC
Insertion Loss(dB) ≤0.3 ≤0.2 ≤0.3 ≤0.3
Return Loss(dB) ≥45 ≥50 ≥60 ≥20
Exchangeability(dB) ≤0.2
Plug-pull life(times) ＞1000
Operating temperature(℃) -40~+75
Storage temperature(℃) -45~+80
Fiber model φ0.9mm, φ2.0mm, φ3.0mm

SC APC 9/125um OS2 Single Mode 0.9mm Fiber Optic Pigtail
