24 36 Core Outdoor Waterproof Armoured Fiber Optic Pigtail
24 36 Core Outdoor Waterproof Armoured Fiber Optic Pigtail
24 36 Core Outdoor Waterproof Armoured Fiber Optic Pigtail
24 36 Core Outdoor Waterproof Armoured Fiber Optic Pigtail
24 36 Core Outdoor Waterproof Armoured Fiber Optic Pigtail
24 36 Core Outdoor Waterproof Armoured Fiber Optic Pigtail
Specifications
Brand Name :
CY COM
Model Number :
Waterproof fiber optic pigtail
Certification :
ISO9001:2015 , ISO14001:2015, RoHS,SGS
Place of Origin :
Shenzhen China
MOQ :
10PCS
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30000pcs per day
Delivery Time :
3-5 working days
Packaging Details :
PE bag or plastic box and Carton box
Fiber count: :
2,4,6,8,12 Core optional
Fiber Type: :
G652D,G657A,OM3,OM4
Jacket Material: :
LSZH PE sheath
Connector type: :
SC/APC or SC/UPC
Length :
50M 100M 150M Or Customized
Description

24 36 Core Outdoor Waterproof Armoured Fiber Optic Pigtail

2 4 6 8 12 24 36 Core Outdoor Waterproof Armoured Fiber Optic Pigtail Patch Cord Jumper Wire Cable

Description:

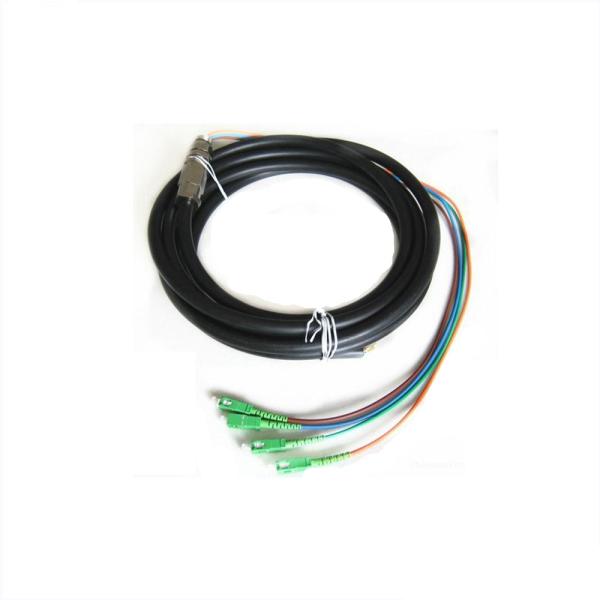

Waterproof fiber optic pigtail is made up with high quality connector, high quality waterproof fiber
optic cable and qualified waterproof copper joint assembly. It features high environmental suitability, easy installation, a long lifetime, high tensile strength and sound grounding. Due to great water resistance, the fiber pigtail can also work normally even in many harsh conditions. The waterproof optical fiber pigtail can be equipped with different connectors such as FC,SC,LC,ST,MU,MTRJ,SMA...according to customers' specific requirements.

Waterproof fiber optic pigtail is a fiber optic component that has a durable and waterproof fiber optic connector installed on one end and a length of exposed fiber at the other end. Fiber optic pigtails are used to connect the major optical cable lines and the optical receivers in optical fiber communication
systems.

Characteristics:
1. Fiber core: 2, 4, 6, 8,12 optional
2. Waterproof features & reliable performance
3. Pull & erosion resistance, good grounding
4. Low insertion loss, high return loss, excellent exchangeability, high stability
5. The cable and pigtail is not moved when tighten the connection screw, which ensure the convenient construction.

Application:
Optic fiber communications systems Optical CATV & LAN
Data & Communication System
Connection for main fiber and optical receiver.

Operating Temperature: -40°C to +85°C

arameter: Single mode Multi mode(optional)
Insertion Loss ≤0.3dB ≤0.20dB
Return Loss

≥45 dB (PC)

≥50 dB (UPC)

≥60 dB (APC)

≥35 dB (PC)

≥45 dB (UPC)
Wavelength 1310nm,1550nm 850nm,1310nm
Repeatability ≤0.1
Durability ≤0.2 dB typical change, 1000 matings
Interchangeability ≤0.2dB
Cord diameter 3.0mm
Connector Available SC,FC,ST,LC,MU,MTRJ
Fiber core available 4,6,8,12,24 fiber…

24 36 Core Outdoor Waterproof Armoured Fiber Optic Pigtail

24 36 Core Outdoor Waterproof Armoured Fiber Optic Pigtail
24 36 Core Outdoor Waterproof Armoured Fiber Optic Pigtail
