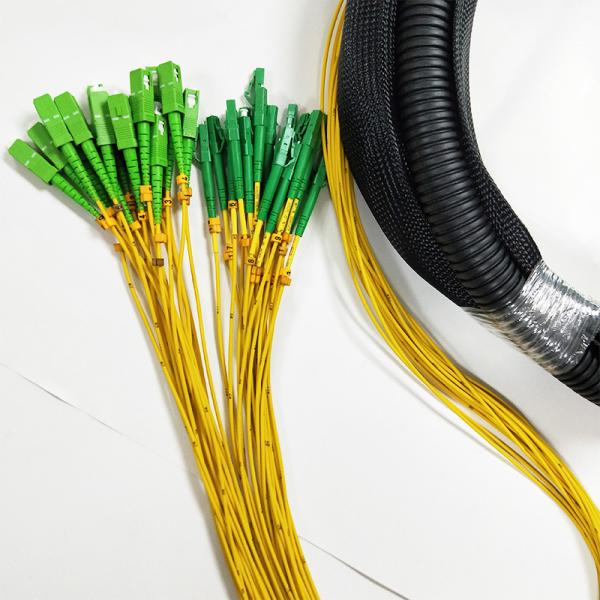

Sc Apc To Sc Apc 18 Core 0.9mm Fiber Optic Patch Cords
Sc Apc To Sc Apc 18 Core 0.9mm Fiber Optic Patch Cords
Sc Apc To Sc Apc 18 Core 0.9mm Fiber Optic Patch Cords
Sc Apc To Sc Apc 18 Core 0.9mm Fiber Optic Patch Cords
Specifications
Brand Name :
CY COM
Certification :
ISO ROHS
Place of Origin :
Shenzhen
MOQ :
10
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Delivery Time :
5-10 work days
Product name :
Branch Fiber patch cord
Cable color :
Yellow
length :
1m,2m,3m or customized
Cable Dimension :
0.9mm, 2.0mm,3.0mm
Connector :
SC LC
Model :
Single mode
wavelength: :
1310nm or 1550nm
Cable type :
G652D, G657A1,OM3
Description

Sc Apc To Sc Apc 18 Core 0.9mm Fiber Optic Patch Cords

1. Feature

1. High return loss

2. Low insertion loss

3. Patch cord Passed RoHS,ISO9001

4. LZSH or PVC jacket

5. CCTC A Type optical fiber Ferrule

General patch cords

2. Application

1). Communication rooms

2). FTTH (Fiber to The Home)

3). LAN (Local Area Network)

4). FOS (fiber optic sensor)

5). Fiber Optic Communication System

6). Optical fiber connected and transmitted equipment

7). Defense combat readiness

3. Specification

Type Standard,Master
Style LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC
Fiber

Singlemode/Multimode

50/125, 62.5/125 (Multimode) OM2&OM1

50/125, 10G (Multimode) OM3
Cable

Simplex, Duplex

Φ3.0mm, Φ2.0mm, Φ0.9mm

PVC or LSZH
Polishing Manner UPC,SPC,APC (8°& 6°)
Insertion Loss

≤ 0.1dB (For Singlemode Master)

≤ 0.25dB (For Singlemode Standard)

≤ 0.25dB (For Multimode)

Tested by JDS RM 3750

Return Loss

(Singlemode)

UPC ≥ 50dB

SPC ≥ 55dB

APC ≥ 60dB (typ.65dB)

Tested by JDS RM3750
Repeatability ±0.1dB
Operating temperature -400C to 850C

Geometry Requirement

( Singlemode)

Ferrule Endface Radius

7mm ≤ R ≤ 12mm (For APC)

10mm ≤ R ≤ 25mm (For Standard)

Apex Offset ≤ 30 μm (For Master)

Apex Offset ≤ 50 μm (For Standard)

Undercut -50nm ≤ U ≤ 50nm

Tested by DORC ZX-1

4. Specifications&Performances

Fiber Type Singlemode(APC Polish) Multimode(PC/Flat Polish)
Parameter Standard Low loss Standard Low loss
Insertion Loss Maximum <0.70 <0.35db <0.70dB <0.35dB
Retrurn Loss >60dB None
Durability 500Matings
Operating Temperature -40C to 80C
Test Wavelength 1310nm 850nm

5. Product list

Boot Connector Fiber Type Cable number
