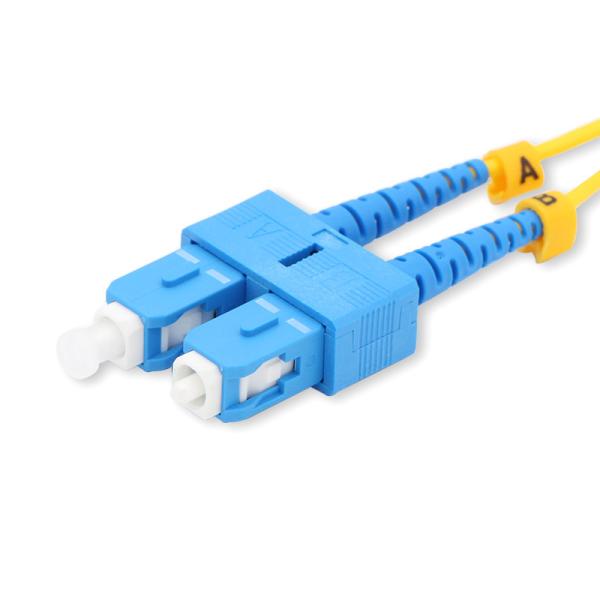

3m 9/125um Duplex PVC LSZH Lc To Sc Fiber Patch Cable
3m 9/125um Duplex PVC LSZH Lc To Sc Fiber Patch Cable
3m 9/125um Duplex PVC LSZH Lc To Sc Fiber Patch Cable
3m 9/125um Duplex PVC LSZH Lc To Sc Fiber Patch Cable
Specifications
Brand Name :
CY COM
Certification :
ISO ROHS
Place of Origin :
Shenzhen
MOQ :
10
Payment Terms :
T/T, Western Union, MoneyGram, L/C
Delivery Time :
5-10 work days
Product name :
Fiber patch cord
Cable color :
Yellow
length :
1m,2m,3m or customized
Cable Dimension :
0.9mm, 2.0mm,3.0mm
Connector :
SC/APC
Model :
Single Model
wavelength: :
1310nm or 1550nm
Cable type :
G652D, G657A1
Description

3m 9/125um Duplex PVC LSZH Lc To Sc Fiber Patch Cable

1. Description

LC SC SM Duplex fiber optic patch cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch, or other telecommunication equipment. Having a thick layer of protection, it is used to connect the optical transmitter, receiver, and the terminal box. This is known as "interconnect-style cabling".

2. Feature

1). Low Insertion loss

2). High return loss

3). Good Repeatability

4). Good Interchange

5). Excellent Environmental Adaptability

3. Application

1). Communication rooms

2). FTTH (Fiber to The Home)

3). LAN (Local Area Network)

4). FOS (fiber optic sensor)

5). Fiber Optic Communication System

6). Optical fiber connected and transmitted equipment

7). Defense combat readiness

4. Specification

Type Standard,Master
Style LC,SC,ST,FC.MU,DIN,D4,MPO, SC/APC,FC/APC,LC/APC.MU/APC
Fiber

Singlemode/Multimode

50/125, 62.5/125 (Multimode) OM2&OM1

50/125, 10G (Multimode) OM3
Cable

Simplex, Duplex

Φ3.0mm, Φ2.0mm, Φ0.9mm

PVC or LSZH
Polishing Manner UPC,SPC,APC (8°& 6°)
Insertion Loss

≤ 0.1dB (For Singlemode Master)

≤ 0.25dB (For Singlemode Standard)

≤ 0.25dB (For Multimode)

Tested by JDS RM 3750

Return Loss

(Singlemode)

UPC ≥ 50dB

SPC ≥ 55dB

APC ≥ 60dB (typ.65dB)

Tested by JDS RM3750
Repeatability ±0.1dB
Operating temperature -400C to 850C

Geometry Requirement

( Singlemode)

Ferrule Endface Radius

7mm ≤ R ≤ 12mm (For APC)

10mm ≤ R ≤ 25mm (For Standard)

Apex Offset ≤ 30 μm (For Master)

Apex Offset ≤ 50 μm (For Standard)

Undercut -50nm ≤ U ≤ 50nm

Tested by DORC ZX-1

5. Product list

Boot Connector Fiber Type Cable number Ferrule Connector

0.9mm

2.0mm

3.0mm

LC

FC

SC

ST

MU

D4

MTRJ

MPO

DIN

9/125um SM

50/125um MM

62.5/125um MM

OM3

OM4

Simplex

Duplex

Multi-fiber

Ribbon

PC

APC

UPC

1M

2M

3M4M

5M
