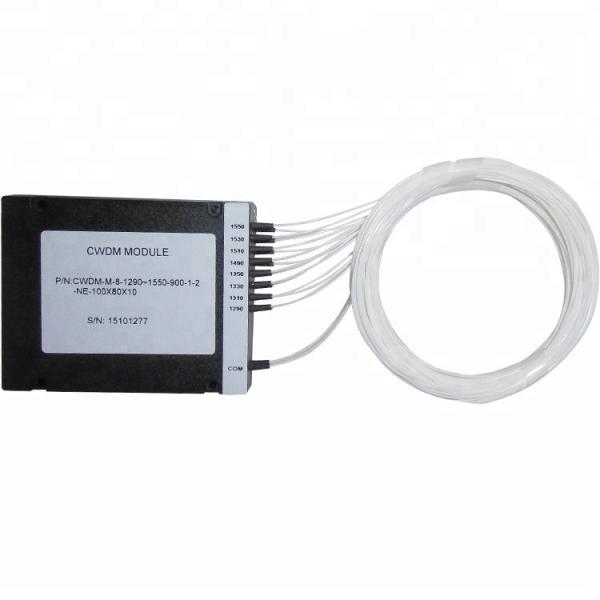

Low Insertion Loss 16 Channel FC SC LC CWDM DWDM Module
Low Insertion Loss 16 Channel FC SC LC CWDM DWDM Module
Low Insertion Loss 16 Channel FC SC LC CWDM DWDM Module
Low Insertion Loss 16 Channel FC SC LC CWDM DWDM Module
Specifications
Brand Name :
CY COM
Model Number :
CWDM DWDM
Certification :
ISO RoSH SGS
Place of Origin :
Shenzhen China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
8-9 working days
Packaging Details :
Individual gift carton box
Model No. :
CWDM DWDM
Product Name :
Optical CWDM Mux/Demux Module
Wavelength :
1270~1610nm
Connector :
FC SC LC
Case :
ABS LGX Box
Application :
FTTx Solutions
Channel Number :
(2~18channel optional)
Pigtail Length :
1Meter
Description

Low Insertion Loss16 Channel FC SC LC CWDM DWDM Module

4,8,16,18-Channel CWDM Module fibre optic explay communicator WDM

Description

Coarse Wavelength Division Multiplexer (CWDM) Utilizes Thin Coating Technology and Proprietary Design of Non-flux Metal Bonding Micro Optics Packaging. It provides low insertion loss, high channel isolation, wide pass band, low temperature sensitivity and epoxy free optical path.Our CWDM Mux Demux products provide up to 18-channel Multiplexing on a single fiber.

Due the the low insertion loss is needed in WDM networks, we can also add “Skip Component” in a CWDM Mux/Demux module to reduce the IL as an option. Standard CWDM Mux/Demux package type include: ABS box package, LGX pakcage and 19” 1U rackmount.

Applications

CWDM System

PON Networks

CATV Links

Features&Advantage:

High Isolation

Compact Design

Low insertion loss, low PDL

High Reliability and Stability

Good channel-to-channel uniformity

Specification:

Parameter Value
Channels Number 2 4 8 16 18
Central Wavelength(nm) ITU-T Grid
Bandwidth(@0.5dB Pass band)(nm) ITU-T ±6.5
Channel Pass band(nm) 20
I.L(dB) Typ. 1.2 1.6 2.2 3.2 3.8
MAX. 1.4 1.8 2.8 5.0 5.6
Ripple(dB) ≤0.3
PDL(dB) ≤0.10 ≤0.15 ≤0.20 ≤0.25 ≤0.30
Isolation(dB) Adjacent Channel ≥30
Non-adjacent Channel ≥45
Directivity(dB) ≥50
R.L(dB) ≥45
Operating Temperature(℃) -5~+75
Storage Temperature(℃) -40~85
Note:
1. All the data above does not include connectors
2. For more details, please contact our sales

Low Insertion Loss 16 Channel FC SC LC CWDM DWDM Module

Low Insertion Loss 16 Channel FC SC LC CWDM DWDM Module
