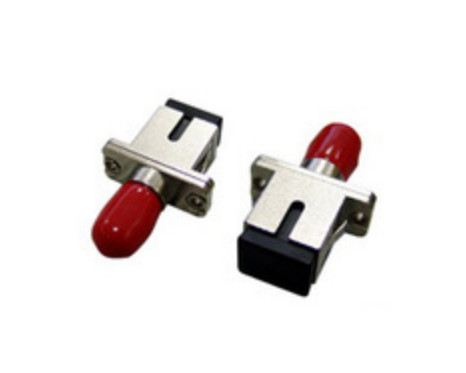

Female Hybrid SC ST SGS Fiber Optic Receptacle
Female Hybrid SC ST SGS Fiber Optic Receptacle
Female Hybrid SC ST SGS Fiber Optic Receptacle
Female Hybrid SC ST SGS Fiber Optic Receptacle
Female Hybrid SC ST SGS Fiber Optic Receptacle
Female Hybrid SC ST SGS Fiber Optic Receptacle
Female Hybrid SC ST SGS Fiber Optic Receptacle
Female Hybrid SC ST SGS Fiber Optic Receptacle
Specifications
Brand Name :
CY COM
Model Number :
ST-SC adapter
Certification :
ISO9001:2015 ,ISO14001:2015,ROSH,SGS
Place of Origin :
Shenzhen China
MOQ :
50pcs
Payment Terms :
T/T, Western Union
Supply Ability :
5 MIllion PCS / Month
Delivery Time :
2-3 days
Packaging Details :
Blister Box
Item :
ST-SC hybrid adapter
FC Side :
Female
SC Side :
Female
Shape :
Rectangle
FC Material :
Zinc or Copper alloy
SC Material :
Zinc or Copper alloy
Fiber type :
Singlemode / Mutilmode
Type :
Simplex
Description

Female Hybrid SC ST SGS Fiber Optic Receptacle

ST Female to SC Female Hybrid SC-ST Simplex Fiber optic Adapter , Zinc or Copper alloy Metal material Coupler

Description:

Hybrid fiber optic adaptors allow users to convert from one connector type to another..
These adaptors are comprised of a polymer/Metal outer body and inner assembly fitted with a precision alignment mechanism. These adaptors are precision made and manufactured to demanding specifications. The combination of a ceramic/phosphor bronze alignment sleeves and a precision moulded polymer housing provides consistent long-term mechanical and optical performance.

We provide Products, AS LC-SC/APC,LC-SC/PC,ST-LC,FC-LC,ST-SC,FC-SC,ST-FC ,etc.

Features:

Single mode and Multimode
Zirconia sleeves or Phosphor bronze sleeves
NTT standard compatible
Available without flanges or with flange for duplex, saving panel space
Meet JIS5974 and bellcore GR-326 standard
Compliant with IEC874-14 & IEC874-19
All parts compliant with ROHS

Application:

Fiber optic transmission system

Fiber optic sensing

Fiber optic distribution frame

Testing/Measurement Instruments

LAN

CATV

Telecommunication networks

Specification:

TYPE ROHS ST - SC Fiber Adapter Hybrid Optical Fiber Adapter Fiber Optic Adaptor, Low Insert Loss
Product Type FC or FC/D ST SC LC SMA ST/SC FC/SC FC/ST Utralow insertion loss
(FC SC ST)
Insertion loss ≤0.2 ≤0.2 ≤0.2 ≤0.1 ≤0.5 ≤0.4 ≤0.5 ≤0.1 MM≤0.05 SM≤0.1
Repeated mating ≤0.1 ≤0.1 ≤0.1 ≤0.1 ≤0.3 ≤0.2 ≤0.3 ≤0.2 ≤0.05
Sleeve material Mainly zirconia ceramic, phosphor bronze can be optional
Plug and unplug (times) ≥500
Insertion force (g) 300-600
Operating Temperature (°C) -40~+70
Storage Temperature (°C) -55~+85
According Standrand BelicoreTA-NWT-001209
Note 1. Optical jumper connectors are similar to wire plugs,adptors are similar to outlets.
2. The key indicators of adaptor are insert loss and tensile strength,the smaller interpolation loss & the range of interpolation force, the better.
3.The performance of ceramic sleeve is better than phosphorus bronze sleeve.

Drawing and Pictures:

Female Hybrid SC ST SGS Fiber Optic Receptacle
