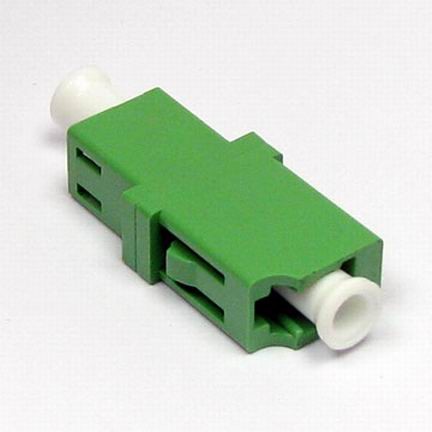

Plastic LC / APC Simplex Flangeless Fiber Optic Receptacle
Plastic LC / APC Simplex Flangeless Fiber Optic Receptacle
Plastic LC / APC Simplex Flangeless Fiber Optic Receptacle
Plastic LC / APC Simplex Flangeless Fiber Optic Receptacle
Plastic LC / APC Simplex Flangeless Fiber Optic Receptacle
Plastic LC / APC Simplex Flangeless Fiber Optic Receptacle
Plastic LC / APC Simplex Flangeless Fiber Optic Receptacle
Plastic LC / APC Simplex Flangeless Fiber Optic Receptacle
Specifications
Brand Name :
CY COM
Model Number :
LC/APC-SX
Certification :
ISO9001:2015 ,ISO14001:2015,ROSH,SGS
Place of Origin :
Shenzhen China
MOQ :
100pcs
Price :
USD 0.12-0.24 / PCS
Payment Terms :
T/T, Western Union
Supply Ability :
5 MIllion PCS / Month
Delivery Time :
3-7 days
Packaging Details :
Plastic Box
Item :
LC / APC Adapter
Color :
Green
Structure :
Flangeless
Test :
100%
Materials :
FBT+PC
Ferrule material :
Ceramic
Cap color :
White
Type :
Simplex
Description

Plastic LC / APC Simplex Flangeless Fiber Optic Receptacle

LC / APC Fiber optical adapter ,Plastic optical fiber coupler, Single mode, Flangeless ,Green color

Description:

LC Adapters were developed by Lucent Technologies. They are composed of a plastic housing with an RJ45 push-pull style clip.

Fiber Adapter (also known as flange, coupling) is a fiber optic connector for connection components, the product is very variety, including FC, SC, ST, LC, MTRJ, as well as carry out the transfer between each other such as: ST-SC, FC-ST, it's widely used in optical distribution frame (ODF), fiber-optic communications equipment, instrumentation, the feature is stable and reliable

Features:

Small size, large capacity
High reliability & stability

Low insertion loss, high return loss

Used to mate two connectors together.

Double the capacity, perfect space saving solution
Push-and-pull bayonet structure, convenient for installation and operation.

Application:

Local Area Network (LAN)
Data communication network
Telecommunication optical transmission network
Optical access network(OAN)
Active device termination
Fiber optics data transmission(FODT)
Test Equipment
CATV

Operation Environment:
Working Temperature:-40~+85ºC
Storage Temperature:-40~+85ºC
Humidity ≤95%(0-35ºC)
Atmospheric pressure: 62kpa~106kPa
Technical Specification:
Item
Parameter
Polish Type
PC,UPC,APC
Fiber Counts
Simplex, Duplex
Applicable Fiber mode
SM/MM
Operation time
About 15s (exclude fiber presetting)
Insert loss
≤ 0.3dB


Return loss
≥ 45 dB(PC )≥ 50 dB(UPC )
≥ 55 dB(APC )
Mechanical Durability
> 500 Times


Pictures and Drawing:

Plastic LC / APC Simplex Flangeless Fiber Optic Receptacle

Plastic LC / APC Simplex Flangeless Fiber Optic Receptacle
