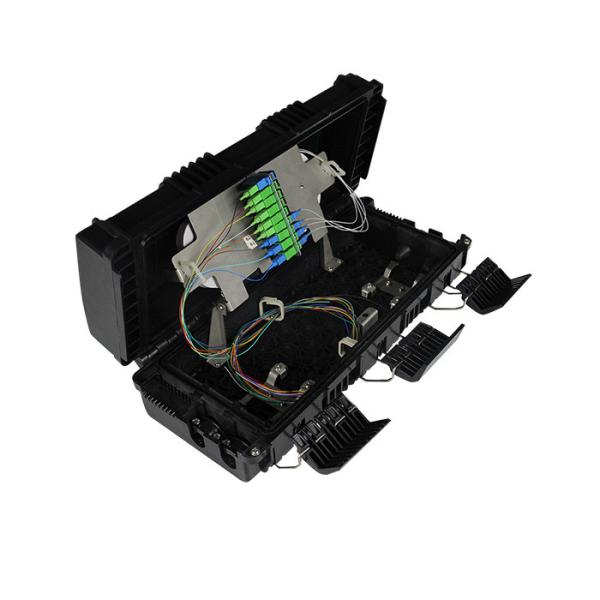

Horizontal PLC Type 96 Core Fiber Optical Splice Closure
Horizontal PLC Type 96 Core Fiber Optical Splice Closure
Horizontal PLC Type 96 Core Fiber Optical Splice Closure
Horizontal PLC Type 96 Core Fiber Optical Splice Closure
Horizontal PLC Type 96 Core Fiber Optical Splice Closure
Horizontal PLC Type 96 Core Fiber Optical Splice Closure
Horizontal PLC Type 96 Core Fiber Optical Splice Closure
Horizontal PLC Type 96 Core Fiber Optical Splice Closure
Specifications
Brand Name :
CY COM
Model Number :
GJS-H004
Certification :
ISO9001:2015,SGS,ROSH
Place of Origin :
Shenzhen ,China
MOQ :
20pcs
Payment Terms :
Western Union, T/T
Supply Ability :
500K/ Month
Delivery Time :
5-8 days
Packaging Details :
Carton
Diameter of Fiber Cable: :
Max. 20mm
Dimension :
440*205*115mm
Type :
Horizontal Type
Protection Class :
IP65
Cable Port: :
4 Ports
Max qty of splice tray :
96 core
Application :
FTTH
Material :
PC
Description

Horizontal PLC Type 96 Core Fiber Optical Splice Closure

Horizontal PLC Type 96 coreFiber Optical Splice Closure With Splitter In-line Enclosure

1. Application:

This installation specification apply to GJS-H004 PLC type fiber optic closure,which explain how to install in the right way.GJS-H004 can be used in aerial-mounting,which provide straight and divergent, spectroscopic and related joint protection for all kinds of fiber cable type. IP65. 4 inlet ports, 18 FTTH cable outlet port.

2. Product Structure:

The product is mainly composed of a closure cover, a closure body, support parts (including adapter holder), splice tray, cable fixing unit and closure fixed part. The closure body is a tool free open type structure, which is sealed by a silicon rubber sealing material

2.1: Dimension(L×W×H): 440×205×115mm;

2.2: Gross Weight:3.2KGs

2.3: Numbers of cable Ports: 4 ports

2.4: Maximum cable diameter:18mm

2.5: Maximum FTTH Ports:18 Ports

2.6: Optical branching ratio:1:2 1:4 1:8 1:16

2.7: Operating temperature:-40℃~+60℃

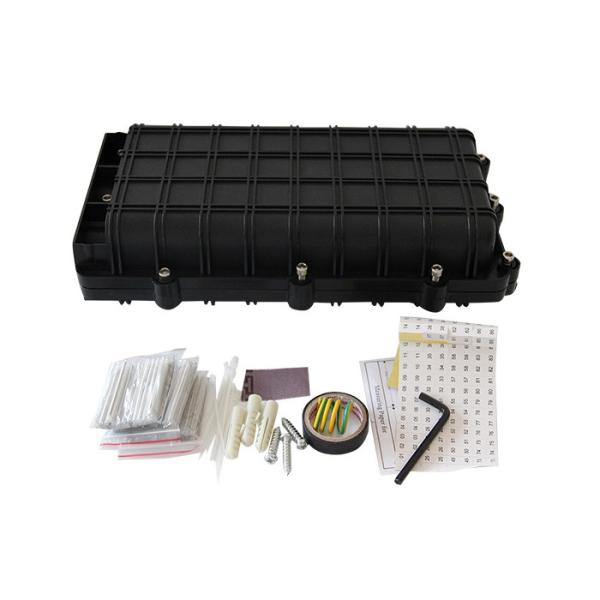

3. Main accessories and tools:

1. Sealing tape (for winding optical cable)

2. Silicone rubber cable seal

3. Silicone rubber covered cable seal

4. Silicone rubber sealing strip

5. Optical cable and reinforced core fixing piece

6. Hose clamps

7. Stainless steel hook

8. Heat shrinkable tube

9. nylon cable tie

10. Digital paper

11. Electrical tape

12. Sand Paper

4. Our advantage:

1. Competitive price

2. Fast delivery

3. Free sample provided

4. Long time warranty

5. Reliable quality, OEM service available

6. Professional product and technical support

7. Prompt answer for any question or inquiry

4. Preparation and installation of optical cable:

Horizontal PLC Type 96 Core Fiber Optical Splice Closure

Horizontal PLC Type 96 Core Fiber Optical Splice Closure
