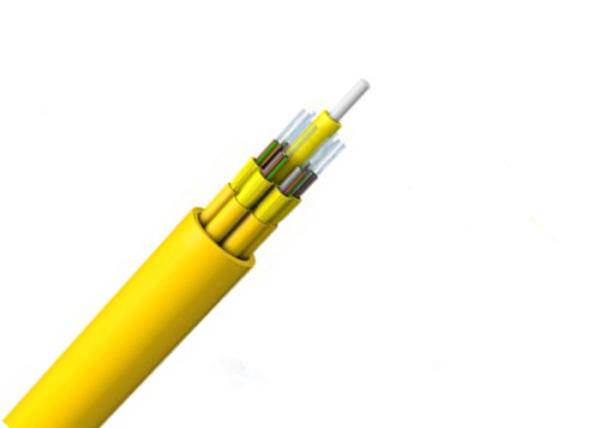

48 Core LSZH Jacket Multipurpose Singlemode Yellow Jacket Fiber Optic Distribution Cable with 2.0mm / 3.0mm Branch
48 Core LSZH Jacket Multipurpose Singlemode Yellow Jacket Fiber Optic Distribution Cable with 2.0mm / 3.0mm Branch
48 Core LSZH Jacket Multipurpose Singlemode Yellow Jacket Fiber Optic Distribution Cable with 2.0mm / 3.0mm Branch
48 Core LSZH Jacket Multipurpose Singlemode Yellow Jacket Fiber Optic Distribution Cable with 2.0mm / 3.0mm Branch
Specifications
Brand Name :
FURONG
Model Number :
GJBFJV
Certification :
ISO, SGS, ROHS
Place of Origin :
GUANGDONG
MOQ :
1000M
Price :
NEGOTIABLE
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000KM/DAY
Packaging Details :
2KM/ROLL
OUTER JACKET :
LSZH
Stucture :
2.0/3.0mm
Fiber Core :
24C
OEM :
Yes
Color :
Yellow
Fiber Type :
9/125
Description

48 Core LSZH Jacket Multipurpose Singlemode Yellow Jacket Fiber Optic Distribution Cable with 2.0mm / 3.0mm Branch

Description
GJPFJV cable is made by the tight buffer fiber wrapped with a layer of aramid yarn as strength member units,multi fibers as the sub unit twist with FRP into the circle ,and finally into fiber optic cable with PVC or LSZH sheath, with dry-type water-blocking materials between fiber and sheath.

Features:
--2.0mm or 3.0 tight buffered cable
--Good mechanical and temperature performance
--Soft,flexible,easy to splice,and with big capacity date transmission
--PVC, LSZH, OFNP jacket for option for both inner or outer sheath

--Easy to Strip, high tensile strength member


Application:
1. Suitable for communication equipment servrd
2. Can be installed conveniently and perated simply
3. Adopted to indoor distribution.
4. As pigtail of communication equipment

5. Terminated with connectors


Fiber Cable Characteristics:

G.652D 50/125μm 62.5/125μm
Attenuation (+20℃) @850nm ≤3.0 dB/km ≤3.0 dB/km
@1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km
@1550nm ≤0.22 dB/km
Bandwidth (Class A) @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm

Mechanical Characteristics:

Tensile Strength Long Term 80N 60 50
Short Term 150N 120 100
Crush Resistance Long Term 100N/100mm 100N/100mm 100N/100mm
Short Term 500N/100mm 500N/100mm 500N/100mm
Bending Radius Dynamic 20XD 20XD 20XD
Static 10XD 10XD 10XD

48 Core LSZH Jacket Multipurpose Singlemode Yellow Jacket Fiber Optic Distribution Cable with 2.0mm / 3.0mm Branch48 Core LSZH Jacket Multipurpose Singlemode Yellow Jacket Fiber Optic Distribution Cable with 2.0mm / 3.0mm Branch
