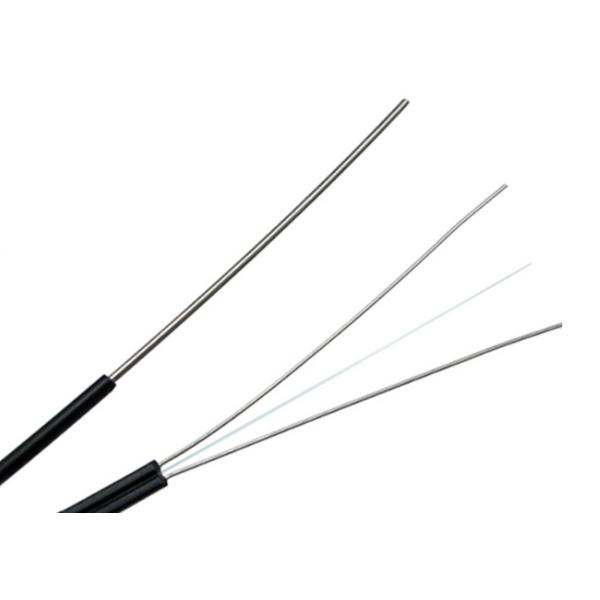

FRP Strength Member G657A2 Two Core FTTH Fiber Optic Cable LSZH Jacket
FRP Strength Member G657A2 Two Core FTTH Fiber Optic Cable LSZH Jacket
FRP Strength Member G657A2 Two Core FTTH Fiber Optic Cable LSZH Jacket
FRP Strength Member G657A2 Two Core FTTH Fiber Optic Cable LSZH Jacket
Specifications
Brand Name :
FURONG
Model Number :
FTTH CABLE
Certification :
ISO, SGS, ROHS
Place of Origin :
GUANGDONG
MOQ :
1000M
Price :
NEGOTIABLE
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000KM/DAY
Packaging Details :
2KM/ROLL
OUTER JACKET :
LSZH
Fiber :
G657A2
APPLICATION :
FTTH Project
Fiber Core :
one
Color :
Black
Strength Member :
FRP
Description

Two Core Steel Messenger with FRP Strength Member G657A2 FTTH Fiber Optic Cable LSZH Jacket

FTTH drop cables are good to use for fiber to the home last mile solution, we provide FTTH drop cable with different counts from 1, 2, 4, to 12. This cable adopts the popular design in the industry, its structure and performance is optimized for FTTH applications.

Characteristic

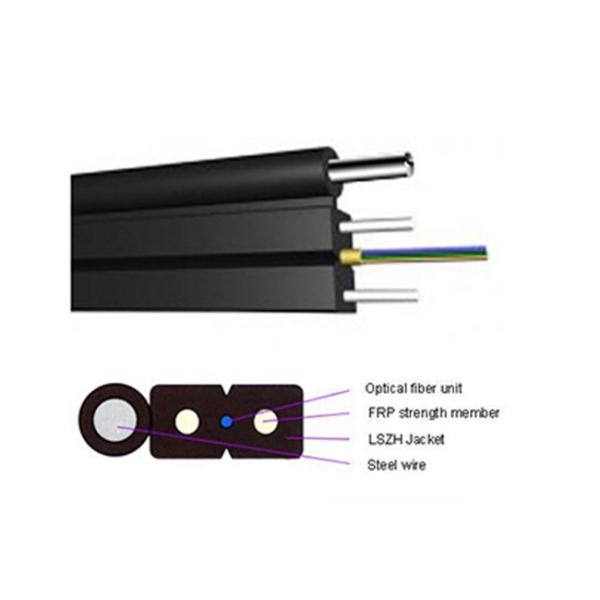

Self-supporting butterfly drop cable (GJYXFCH/GJYXFDCH) is made from the disc into the optical fiber cable outer in add a stout rope suspension wire.

1.Thick wire

2 Not metal or metal strengthening element

3.Single Fiber core or optical fiber belt (G657, A2) (1-4 core)

4.Low smoke zero halogen resistance sheath

Fiber G.652D G.657A 50/125μm 62.5/125μm

Attenuation

(+20℃)

 @850nm ≤3.0 dB/km ≤3.5 dB/km
@1300nm ≤1.5dB/km ≤1.5dB/km
@1310nm ≤0.40 dB/km ≤0.35 dB/km
@1550nm ≤0.3 dB/km ≤0.25dB/km

Bandwidth

(Class A)

 @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wave length ≤1260nm ≤1480nm
FRP Strength Member G657A2 Two Core FTTH Fiber Optic Cable LSZH Jacket
FRP Strength Member G657A2 Two Core FTTH Fiber Optic Cable LSZH Jacket
