2-12Core FRP Strength Member Loose Tube Outdoor Fiber Optic Cable GYFXTY
2-12Core FRP Strength Member Loose Tube Outdoor Fiber Optic Cable GYFXTY
2-12Core FRP Strength Member Loose Tube Outdoor Fiber Optic Cable GYFXTY
2-12Core FRP Strength Member Loose Tube Outdoor Fiber Optic Cable GYFXTY
Specifications
Brand Name :
Furong
Model Number :
GYFXTY
Certification :
SGS, ISO
Place of Origin :
DONGGUANG CHINA
MOQ :
1KM
Price :
NEGOTIABLE
Supply Ability :
2000KM/DAY
Packaging Details :
WOODEN DRUM
Outer Jacket :
PE
Strength Member :
FRP
Fiber Core :
2-12
Package :
Wooden Drum 1-4km/drum
OEM :
Accepted
Fiber Type :
singlemode or multimode
Description

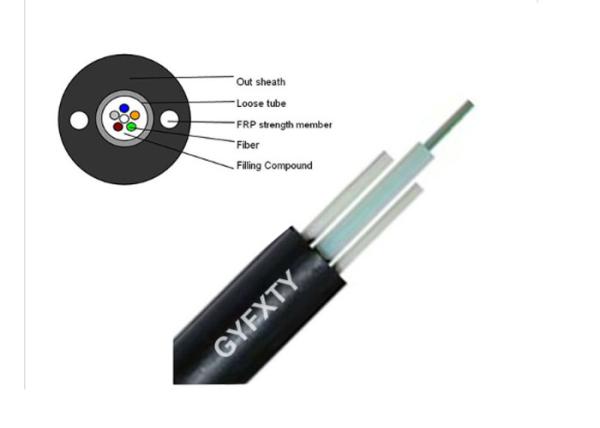

GYFXTY is an outdoor communication optical cable of of the central tube jelly-filled structure with embedding steel-polyethylene laminated sheath, consisting of the central loose tube, two parallel FRP strength members, and sheath.

Features:

--Good mechanical and temperature performance.
--High strength loose tube that is hydrolysis resistant.
--Special tube filling compound ensure a critical protection of fiber.
--Crush resistance and flexibility.
--Two parallel steel wires ensure tensile strength.
--Small diameter, light weight and friendly installation.

Technical Parameters:
Cable Count Out sheath
Diameter		 Weight Minimum allowable Tensile Strength
(N)		 minimum allowable Crush Load
(N/100mm)		 Minimum Bending Radius
(MM)		 Storage
temperature
(MM) (KG) short term long term short term long term short term long term (°C)
2 7.2 45 1200 500 1000 300 20D 10D -40+60
4 7.2 45 1200 500 1000 300 20D 10D -40+60
6 7.2 45 1200 500 1000 300 20D 10D -40+60
8 7.2 45 1200 500 1000 300 20D 10D -40+60
12 7.2 45 1200 500 1000 300 20D 10D -40+60

Optical Characteristics
Fiber Sort Multimode G.651 A1a:50/125 Graded-index fiber
A1b:62.5/125
Singlemode G.652(A,B,C,D) B1.1:Conventional fiber
G.653 B2: Zero dispersion shifted
G.654 B1.2 :Cut-off wavelength shifted
G.655 B4: Main technical data for positive
dispersion shifted single-mode fiber

2-12Core FRP Strength Member Loose Tube Outdoor Fiber Optic Cable GYFXTY2-12Core FRP Strength Member Loose Tube Outdoor Fiber Optic Cable GYFXTY
