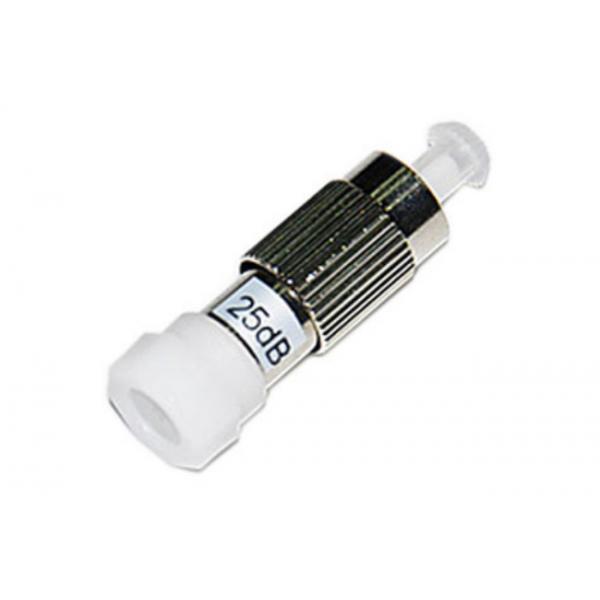

1-30dB Female to Male Plug In FC UPC Single Mode Fiber Attenuator For CATV
1-30dB Female to Male Plug In FC UPC Single Mode Fiber Attenuator For CATV
1-30dB Female to Male Plug In FC UPC Single Mode Fiber Attenuator For CATV
1-30dB Female to Male Plug In FC UPC Single Mode Fiber Attenuator For CATV
Specifications
Brand Name :
FURONG
Model Number :
ATT-FC-XDB
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
1
Price :
NEGOTIABLE
Supply Ability :
10000000
Delivery Time :
1-8DAYS
Packaging Details :
CARTON
HOUSING :
METAL
CONNECTOR TYPE :
FC MALE TO FC FEMALE
FIBER TYPE :
Singlemode
ATTENUATION LEVEL :
0-30DB
POLARIZATION Dependent Loss :
≤0.1dB
POLISH :
UPC
Description

FC Fixed-Type Optical Attenuators with doped fiber are available from 1 to 5dB attenuation with 1dB step and from 5dB to 30dB attenuation with 5dB step with low tolerance. These reliable attenuators are able to accommodate up to 200mw high power and typically offer 50dB or more return loss. The FC Attenuator is available for single-mode with a wavelength range of 1310nm to 1550um. We also offer FC/SC male/female and SC/FC female/male attenuators.

They are used in telecommunication networks, CATV, LAN & WAN Networks and FTTX applications and they are suitable for both testing and commercial applications.

Features:

--Fixed-type optical attenuator with doped fiber

--Accommodates up to 200mw high power

--50dB or more typical return loss

--IEC, TIA/EIA standards compliance

--Flammability rating: UL 94V-0

--RoHs and REACH compliant

PARAMETERS

Attenuation Value 1dB ~ 30dB
Operating Wavelength 1240 ~ 1620nm (Dual 1310/1550nm)
Premium
Return Loss UPC >55dB
APC >65dB

Attenuation

Accuracy

 1 ~ 7 dB ±0.5dB
8 ~ 12 dB ±0.7dB
13 ~ 17 dB ±1.0dB
18 ~ 25 dB ±1.3dB
Maximum Optical Input Power 1000mW
Polarization Dependent Loss ≤0.1dB
Operating Temperature Range -40 to 75
Storage Temperature Range -40 to 85
Humidity 95%RH

1-30dB Female to Male Plug In FC UPC Single Mode Fiber Attenuator For CATV
