Non - Metallic FRP 2-288C GYFTA53 Outdoor Fiber Optic Cable With Multi Tube Structure
Non - Metallic FRP 2-288C GYFTA53 Outdoor Fiber Optic Cable With Multi Tube Structure
Specifications
Brand Name :
Furong
Model Number :
GYFTA53
Certification :
SGS, ISO
Place of Origin :
DONGGUANG CHINA
MOQ :
2KM
Price :
NEGOTIABLE
Supply Ability :
2000KM/DAY
Packaging Details :
WOODEN DRUM
Loose Tube Material :
PBT
Application :
duct/direct-buried
Fiber Core :
2-144
Structure :
Multi Tube
OUTER SHEATH :
PE
Strength Member :
FRP
Description

NON-METALLIC STRENGTH MEMBER FRP 2-288C GYFTA53 for DUCT OR DIRECT BURIED FIBER OPTIC OUTDOOR CABLE

Description:

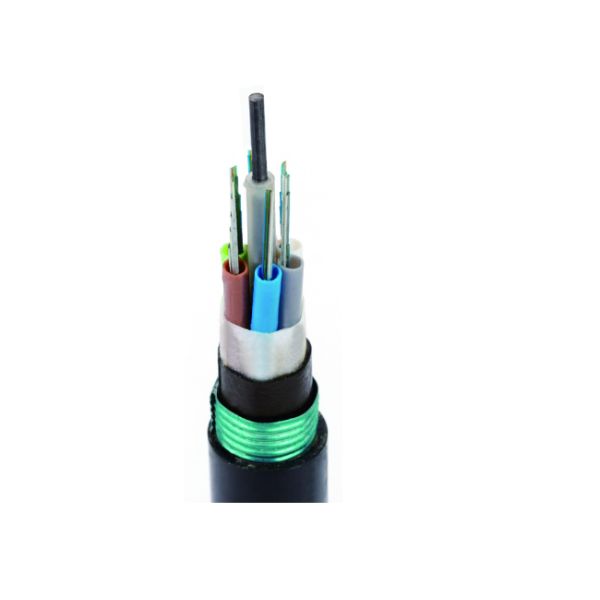

GYFTA53 Outdoor Fiber Optic Cable is a loose tube style, optical fiber cable with non-metallic central strength member of FRP and peripheral strength members and polyethylene sheath. GYFTA53 Fiber Cable is suitable for duct or aerial installation in area with high incidence of lightning or exposure to high voltage. Tubes of fiber GYFTA53 cable contain optical single-mode or multimode fibers color coded as per color coding scheme.

Features

1．PBT loose tube of 24fibers
Tube number: 2 Tube thickness: 0.3±0.05mm Diameter: 2.1±0.1 um
GYFTA53 Cable Fiber (Fiber characteristic):
Cladding diameter: 125.0±0.1 Fiber characteristics: Diameter: 242±7 um
UV color fiber: Standard chromatogram
2. Filling Compound
3. Central Strength member: FRP
4. Filler rod: number: 3
5. APL: Aluminum Polyethylene Laminate moisture barrier
6. Black HDPE inner sheath
7. Water-blocking tape
8. PSP: Longitudinal corrugated steel tape laminated with polyethylene on both sides
Corrugated steel Thickness: 0.4 ±0.015 Steel thickness: 0.15±0.015
9. PE outer sheath
Jacket thickness: 1.8 ±0.20mm
Diameter: Cable Diameter: 12.5±0.30mm

Specification

G652 G655 50/125μm 62.5/125μm

Attenuation

(+20℃)

 @850nm ≤3.0 dB/km ≤3.0 dB/km
@1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km
@1550nm ≤0.22 dB/km ≤0.23dB/km
Bandwidth (Class A) @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelengthλcc ≤1260nm ≤1480nm

Non - Metallic FRP 2-288C GYFTA53 Outdoor Fiber Optic Cable With Multi Tube StructureNon - Metallic FRP 2-288C GYFTA53 Outdoor Fiber Optic Cable With Multi Tube Structure
