2-288core Anti Rodent Steel Armored Outdoor Fiber Optic Cable GYTY53
2-288core Anti Rodent Steel Armored Outdoor Fiber Optic Cable GYTY53
2-288core Anti Rodent Steel Armored Outdoor Fiber Optic Cable GYTY53
2-288core Anti Rodent Steel Armored Outdoor Fiber Optic Cable GYTY53
Specifications
Brand Name :
FURONG
Model Number :
GYTY53
Certification :
ISO, SGS, ROHS
Place of Origin :
GUANGDONG
MOQ :
1000M
Price :
NEGOTIABLE
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000KM/DAY
Packaging Details :
2KM/ROLL
FIBER TYPE :
SM, OM1, OM2, OM4, OM3
FIBER COUNT :
2-288C
OUT SHEATH :
PE/LSZH/PU
OEM :
LOGO, COMPANY NAME, PART NUMBER CUSTOMIZED
ARMORED :
YES
APPLICATION :
TELECOM
Description

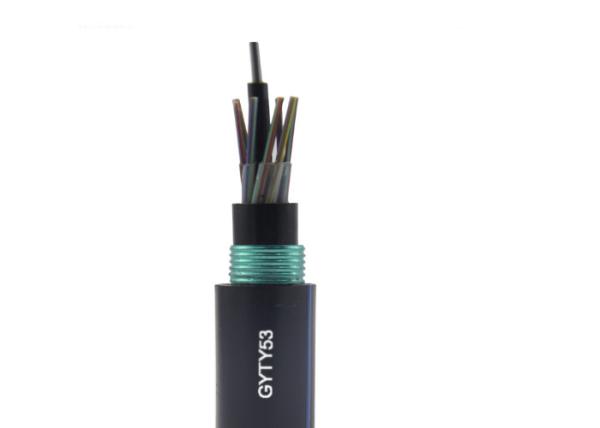

2-288core Anti Rodent Steel Armored Fiber Optic Outdoor Cable GYTY53

Description

GYTY53 fiber optic cable is used for direct buried underground, it suit for long distance and LAN fiber communications, we supply both the single mode GYTY53 cable and multimode GYTY53 cables.

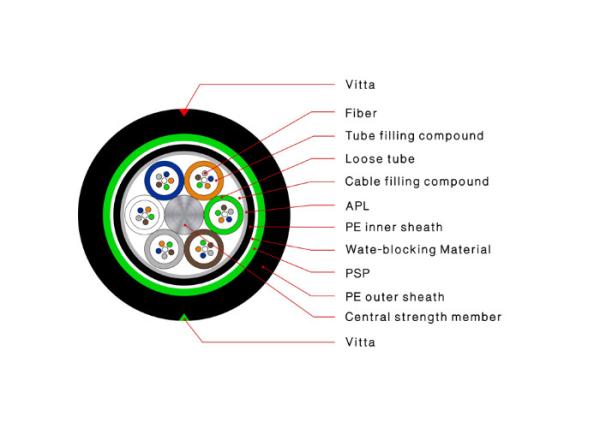

GYTY53 fiber cable is stranded loose tube structure with steel tape double sheaths, the loose tube stranding technology make the fibers have good secondary excess length and allow the fibers free movement in the tube ,which keeps the fiber stress-free while the cable is subjected to longitudinal stress. GYTY53 cable is steel tape armored and double PE sheath providing excellent crush resistance and rodent resistance. Metal strength member provides excellent strain performance.

Features:

--Good mechanical and temperature performance
--High strength loose tube that is hydrolysis resistant
--Special tube filling compound ensure a critical protection of fiber
--Crush resistance and flexibility
--PE/LSZH sheath protects cable from ultraviolet radiation
--100% cable core filling

General Details:

G.652D 50/125μm 62.5/125μm
Attenuation @850nm ≤3.0 dB/km ≤3.0 dB/km
(+20℃) @1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km
@1550nm ≤0.22 dB/km
Bandwidth (Class A) @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelengthλcc ≤1260nm
