4-12C Indoor Fiber Optic Cable Riser Rated Ribbon Fiber Optic Cable For Mass Splicing Service
4-12C Indoor Fiber Optic Cable Riser Rated Ribbon Fiber Optic Cable For Mass Splicing Service
4-12C Indoor Fiber Optic Cable Riser Rated Ribbon Fiber Optic Cable For Mass Splicing Service
4-12C Indoor Fiber Optic Cable Riser Rated Ribbon Fiber Optic Cable For Mass Splicing Service
Specifications
Brand Name :
FURONG
Model Number :
GJFDBV
Certification :
ISO, SGS, ROHS
Place of Origin :
GUANGDONG
MOQ :
1000M
Price :
NEGOTIABLE
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000KM/DAY
Packaging Details :
2KM/ROLL
OUTER JACKET :
PVC, LSZH, OFNP
Stucture :
Ribbon
APPLICATION :
Indoor
OEM :
LOGO, COMPANY NAME, PART NUMBER CUSTOMIZED
Color :
Yellow , Orange, Aqua or Customized
Fiber Type :
9/125， 50/125
Description

Description

Ribbon Fiber Cables offer a compact, efficient, and versatile solution to applications requiring maximum connectivity in a minimum amount of space. Based on single ferrule MT technology, these cable assemblies provide up to 72 fiber connections in a single point, reducing the physical space and labor requirement, while providing the same bandwidth capacity of a multi-fiber cable with individual fiber/connector terminations per fiber.

Ribbon Fiber Cables are used in many applications requiring multiple fibers from point to point and/or multiple fiber distribution from one point to several separate points.

The advantage of utilizing Ribbon Fiber Cables resides in the ability to achieve a much higher density in patch panel, cable routing/ducting, and device connection environments, without compromising the quality or quantity of the connection.

Features

--Flexible Riser Jacket

--Aramid Strength member

--Compatible with industry termination products

--Fan Out Kits Available

--Rohs compliant

--2 fiber ready for MTRJ terminations

Applications

--Color coded for ease of termination

--MTP assemblies

--Network Room Applications

--Available in multi-mode or singlemode

--Furcation tubing also available

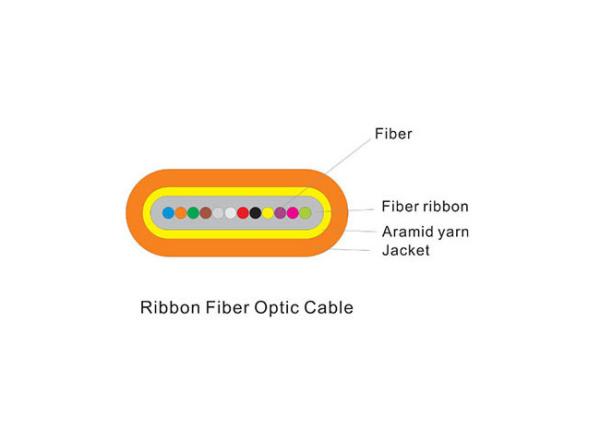

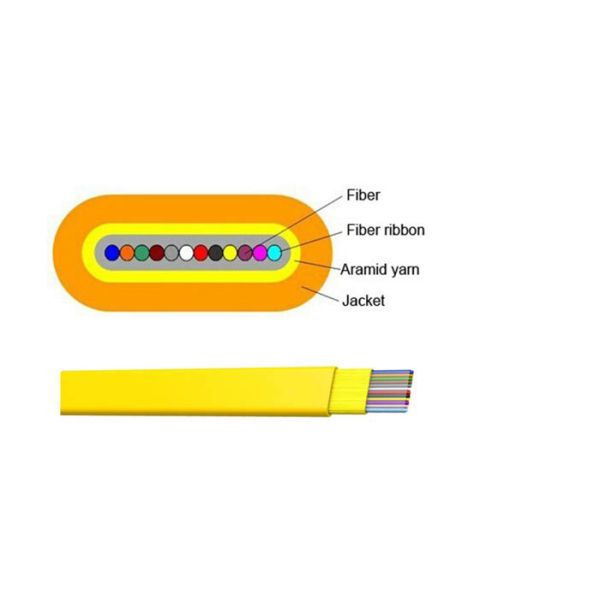

Cable Type Ribbon Flat Fiber Count 4-12 Fibers
Flammability Rating LSZH Fiber Type Singlemode G.652D (Yellow)
Cable Diameter 4.5mm Weight 17kg/km
Tensile Strength (long/short term) 600/1500(N) Crush Load (long/short term) 300/1000 (N/100mm)
Bending Radius (long/short term) 10D/20D(mm) Application Indoor
Operating Temperature -20°C~+60°C Storage Temperature -20°C~+60°C


4-12C Indoor Fiber Optic Cable Riser Rated Ribbon Fiber Optic Cable For Mass Splicing Service4-12C Indoor Fiber Optic Cable Riser Rated Ribbon Fiber Optic Cable For Mass Splicing Service
