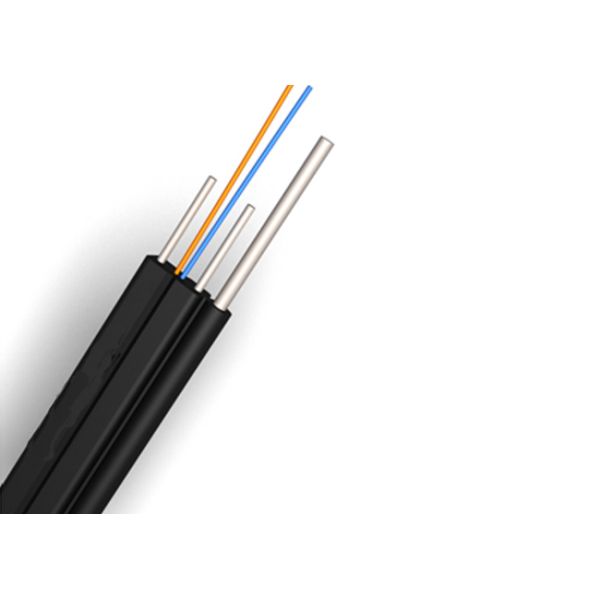

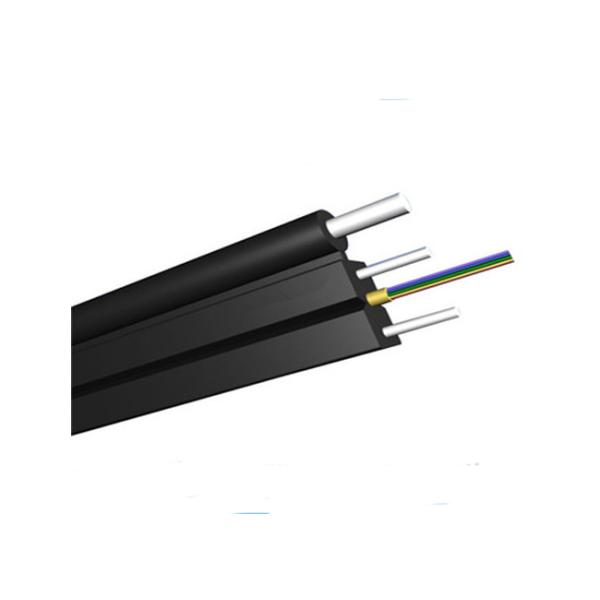

Self Supporting with FRP OR Steel Messenger G657A1 OR G657A2 FTTH Outdoor Cable
Self Supporting with FRP OR Steel Messenger G657A1 OR G657A2 FTTH Outdoor Cable
Self Supporting with FRP OR Steel Messenger G657A1 OR G657A2 FTTH Outdoor Cable
Self Supporting with FRP OR Steel Messenger G657A1 OR G657A2 FTTH Outdoor Cable
Specifications
Brand Name :
FURONG
Model Number :
FTTH, GJXFH/GJXH
Certification :
ISO, SGS, ROHS
Place of Origin :
GUANGDONG
MOQ :
1000M
Price :
NEGOTIABLE
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000KM/DAY
Packaging Details :
2KM/ROLL
OUTER JACKET :
LSZH
Fiber :
G657A1 or G657A2
APPLICATION :
Outdoor
Fiber Core :
one
Color :
Black
Strength Member :
FRP or Steel
Description

FTTH drop cables are good to use for fiber to the home last mile solution, we provide FTTH drop cable with different counts from 1, 2, 4, to 12. This cable adopts the popular design in the industry, its structure and performance is optimized for FTTH applications.

Characteristic

--lighter and small diameter,separated easily and excellent softness

--the glass fiber bar, aramid fiber rods and small wire are as strength member

--the steel wire and stranding steel wire have excellent tensile strength as the self-supporting bow-type cable messenger wire

--special low sensitivity of bending fiber provides higher bandwidth and realize the integration of Internet,CATV and telephone

--2 parallel strength members protect fibers and ensure crush and tensile strength

--unique gouge design,strip and splice easily,simplify installation and maintenance

--environment friendly flame retardant LSZH sheath

Fiber Core 1 2 4 6
Cable Dimension(mm) 2.0x5.0 2.0x5.0 2.0x5.5 2.0x6.0
Cable Weight (kg/km) 20 20 21 21

Mechanical Characteristics

Tensile strength(N) Long Term 60
Short Term 120
Bending Radius(CM) Dynamic 35
Static 15

Fiber

Fiber Type(core/cladding dimension) G.657A,G.652D

Transmission Characteristics

SMF
1310/1550(nm)
Attenuation(db/km) ≤0.4/0.30
Minimum Bandwidth(MHz·km) -----------------------

Environmental Characteristics

Storage Operating Temperature -20℃~+60℃
Self Supporting with FRP OR Steel Messenger G657A1 OR G657A2 FTTH Outdoor CableSelf Supporting with FRP OR Steel Messenger G657A1 OR G657A2 FTTH Outdoor Cable
