Assembled FC SINGLEMODE / Multimode Fiber Connectors WITH Ceramic Ferrule
Assembled FC SINGLEMODE / Multimode Fiber Connectors WITH Ceramic Ferrule
Assembled FC SINGLEMODE / Multimode Fiber Connectors WITH Ceramic Ferrule
Assembled FC SINGLEMODE / Multimode Fiber Connectors WITH Ceramic Ferrule
Specifications
Brand Name :
FURONG
Model Number :
CONFCSX
Certification :
ISO, ROHS
Place of Origin :
SHENZHEN
MOQ :
1
Price :
NEGOTIABLE
Supply Ability :
10000PCS/DAY
Packaging Details :
PE BAG
CONNECTOR :
FC
BOOT COLOR :
BLACK, BLUE, GREEN, RED
HOUSING COLOR :
METAL
BOOT SIZE :
0.9, 2.0, 3.0MM
END FACE :
UPC/APC
PACKAGE :
100PCS/BAG
Description

Description:

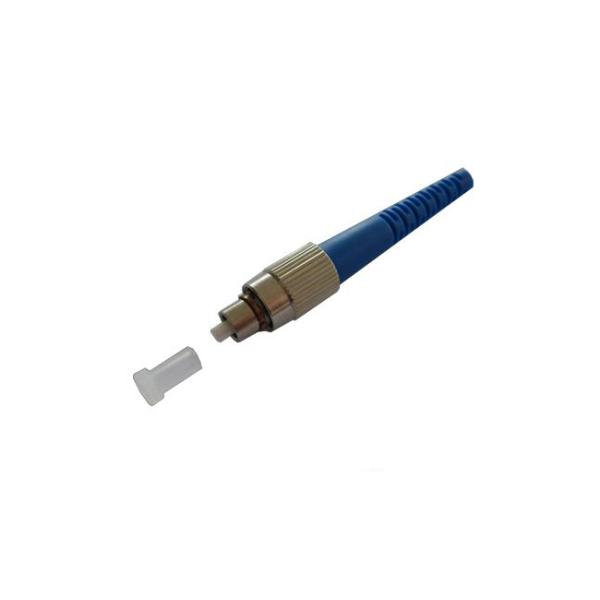

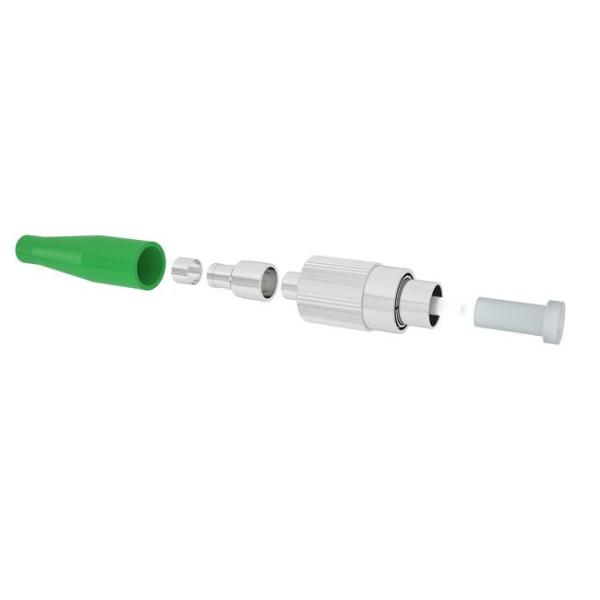

The FC was the first optical fiber connector to use a ceramic ferrule, but unlike the plastic bodied SC and LC, it utilizes a round screw-type fitment made from nickel-plated or stainless steel. The connector end face relies on an alignment key for correct insertion and is then tightened into the adaptor/jack using a threaded collet.

Features:

--Fiber FC Connector Epoxy-polish are especially designed to provide low insertion loss and back reflection, along with high precision and mechanical stability.

--Our male Fiber Connectors have pre-polished zirconia ceramic ferrule with a slight spherical end-face. They also feature a screw-on collet that ensures precise connections in high vibration environments.

--These fiber optic connector kit comply with IEC 61754-13 and TIA 604-4-B, FOCIS-4 intermateability standards and conform to RoHS environmental requirements.

--Singlemode Connector body is made of nickel plated metal, which resist corrosion. They come with boots suitable for 0.9mm, 2.0MM, 3.0MM fiber cable diameters.

Applications
Telecommunication
LAN & WAN
Broadband
CATVNetwork
FTTX.
Connector Type FC, SC, ST, LC, MPO, MTRJ etc.
Operating Wavelength 1260nm-1650nm
Insertion Loss ≤0.20dB, max 0.3dB
Return Loss PC≥45.0dB ,UPC≥50.0dB,APC≥60.0dB
Exchangeability ≤0.20dB
Vibration 10-60Hz, 1.5mm ≤0.10dB
Tensile ≤0.10dB (0-15Hg, except Ø0.9mm)
Plug times >1000 (Times), ≤0.20dB
Storage Temperature -40°C ~ +85°C
Operating Temperature -40°C ~ +85°C
Relative humidity 95%, (+25°C~ +65°C, after 100h)

Assembled FC SINGLEMODE / Multimode Fiber Connectors WITH Ceramic FerruleAssembled FC SINGLEMODE / Multimode Fiber Connectors WITH Ceramic Ferrule
