Outdoor FRP round FTTH mainly used in duct installation GYFXTZY -2G657A2 LSZH
Outdoor FRP round FTTH mainly used in duct installation GYFXTZY -2G657A2 LSZH
Outdoor FRP round FTTH mainly used in duct installation GYFXTZY -2G657A2 LSZH
Outdoor FRP round FTTH mainly used in duct installation GYFXTZY -2G657A2 LSZH
Specifications
Brand Name :
Furong
Model Number :
GYFXTZY
Certification :
SGS, ISO
Place of Origin :
DONGGUANG CHINA
MOQ :
2KM
Price :
NEGOTIABLE
Supply Ability :
2000KM/DAY
Packaging Details :
WOODEN DRUM
WATERPROOF :
YES
Application :
DUCT
Fiber Core :
2
FIBER TYPE :
G657A2
JACKET :
LSZH
Strength Member :
FRP
Description

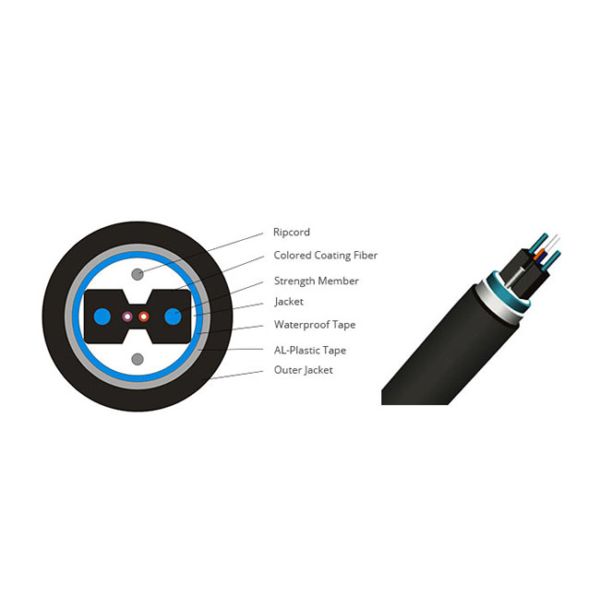

FTTH duct cables are made for connecting user's devices with outdoor feeder cable, especially suitable for duct installation. The optical fiber unit is located in the center. The two parallel FRP strength member improves the tensile strength. With the LSZH (LSZH, Low smoke, Zero halogen) material jacket, this cable has good flame retardant performance. Water blocking tape & AL-plastic tape provide good water proof ability.
Cable Type FTTH Drop Cable Fiber Count 2 Fibers
Construction Single-Armored Fiber Type Singlemode G.657A
Inner/Outer Jacket LSZH (Black) Central Strength Member FRP
Cable Diameter 7.0mm Cable Weight 52kg/km
Tensile Strength (long/short term) 30/60N Crush Load (long/short term) 30/1000 (N/100mm)
Bending Radius (long/short term) 15/30mm Operating/Storage Temperature -20 to +60°C/-40 to +60°C
Feature
Soft and flexible, good bending performance
water-proof tape prevent the ingression of water into the cable
AL-plastic tape makes the cable crush resistant and moisture proof
FRP strength member improves the tensile strength
LSZH flame-retardant inner and outer jacket has good flame retardant performance
Application
Used in aerial and duct access cabling
Used in aerial and duct access cabling

Suitable for the connection between indoor and outdoor

Specially used where good insulation performance are expected

Ideal Solution For FTTH Drop Cable Use
With low smoke, zero halogen and flame retardant inner and outer jackt, this cable can be especially used in aerial and duct access cabling, suitable for the connection between indoor and outdoor. It can also be directly terminated connecting to communicaion equipments.
Outdoor FRP round FTTH mainly used in duct installation GYFXTZY -2G657A2 LSZH
