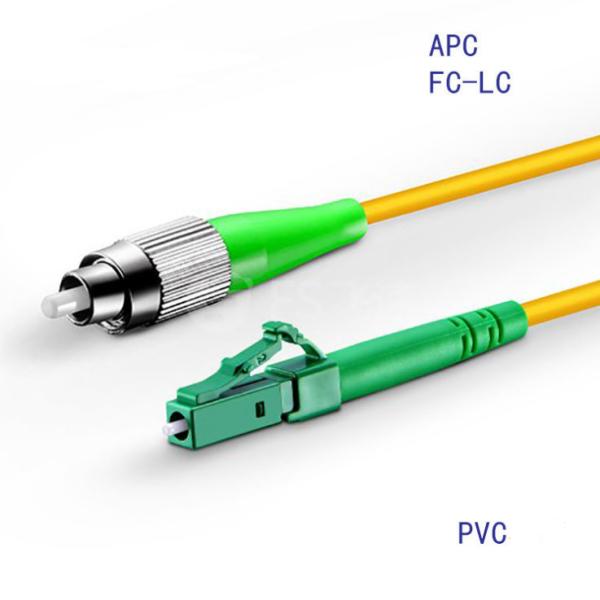

Best Price FC-LC/APC Single Mode Simplex Fiber Optic Patch Cord,Fiber Optic Jumper Cable
Best Price FC-LC/APC Single Mode Simplex Fiber Optic Patch Cord,Fiber Optic Jumper Cable
Best Price FC-LC/APC Single Mode Simplex Fiber Optic Patch Cord,Fiber Optic Jumper Cable
Best Price FC-LC/APC Single Mode Simplex Fiber Optic Patch Cord,Fiber Optic Jumper Cable
Best Price FC-LC/APC Single Mode Simplex Fiber Optic Patch Cord,Fiber Optic Jumper Cable
Best Price FC-LC/APC Single Mode Simplex Fiber Optic Patch Cord,Fiber Optic Jumper Cable
Best Price FC-LC/APC Single Mode Simplex Fiber Optic Patch Cord,Fiber Optic Jumper Cable
Best Price FC-LC/APC Single Mode Simplex Fiber Optic Patch Cord,Fiber Optic Jumper Cable
Best Price FC-LC/APC Single Mode Simplex Fiber Optic Patch Cord,Fiber Optic Jumper Cable
Best Price FC-LC/APC Single Mode Simplex Fiber Optic Patch Cord,Fiber Optic Jumper Cable
Specifications
Brand Name :
FURONG Or OEM Or ODM
Model Number :
FC-LC/APC
Certification :
ISO/ROSH
Place of Origin :
China
MOQ :
10
Price :
$0.8-1/pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
9000pcs/day
Delivery Time :
3-5 days
Packaging Details :
Plastic Bag
Color :
Yellow or Customized
Jacket Material :
PVC or LSZH
Product Name :
FC-LC/APC Connector Fiber Jumper
Quality Control :
100% Testing Before Shipment
Cable Diameter :
3mm,2mm,0.9mm
Polishing Type :
UPC, APC
Insertion Loss: :
UPC< 0.2dB, APC<0.3dB
Return Loss :
UPC>55dB, APC>65dB
Description

Description:

fiber optic patch cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV , an optical switch or other telecommunication equipment. Its thick layer of protection is used to connect the optical transmitter, receiver, and the terminal box. The fiber optic patch cables can be configured with different types of connectors, such as LC, FC, SC, ST, MU, MTRJ and E2000 etc and fiber cables.

We provide a comprehensive fiber optic patch cables with customized requirement from single fiber to multistrand fiber to meet your flexbile installation service.

Optical Fiber Cable Features
1. PC, UPC, APC polished
2. Male, female optional(For MPO MTRJ)
3. High return loss, low insertion loss
4. High reliability, high temperature stability
5. Good exchangeability
6. Push pull structure, compact size, dense type

Optical Fiber Cable Applications
* CATV, Metro, Test equipment
* Telecommunication networks
* Wide Area networks(WANS)
* Data processing networks
* Local area netwirks(LANS)
* Premise installations

Fiber Optic Patch Cord Technical Standard:
Insertion Loss: PC≤0.3dB, UPC≤0.3dB, APC≤0.3dB ;
Return Loss: SM PC≥50dB, UPC≥55dB, APC≥60dB; MM PC≥35dB, UPC≥35dB
Interchangeability: ≤0.2dB
Salt Spray : ≤0.2dB
Repeatability : (1000 times) ≤0.1dB
Vibration: (550Hz 1.5mm) ≤0.1dB
High Temperature : ( +85 sustain 100 hours) ≤0.2dB
Low Temperature : (-40 sustain 100 hours) ≤0.2dB
Temperature Circularly: (-40+85 sustain 100 hours) ≤0.2dB
Humidity : (+25+65 93 R.H.100 hours) ≤0.2db
Apex Offset: 0μm≤≤50μm
Radius of Curvature: 7mm≤≤25mm
Cable TypeSimplex, Duplex, Fan-Out;

Technical parameter

Characteristic SM , MM
Connector type FC/SC/ST/LC/MU/MT-RJ/ESCON/E2000
Diameter(mm) 0.9,2.0,3.0
Polishing grade SM PC MM PC UPC APC
Insertion loss ≤0.3dB ≤0.3dB ≤0.3dB ≤0.3dB
Return loss ≥40dB ≥55dB ≥60dB
Interchangeability ≤0.2dB
Repeatability ≤0.2dB
Operation temperature -40~+80
