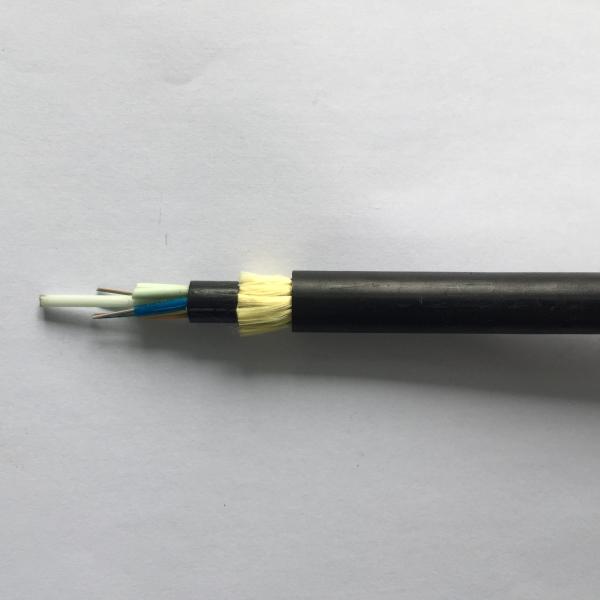

ADSS All Dielectric Self supporting Aerial Cable PE Sheath with FRP Strength Member
ADSS All Dielectric Self supporting Aerial Cable PE Sheath with FRP Strength Member
ADSS All Dielectric Self supporting Aerial Cable PE Sheath with FRP Strength Member
ADSS All Dielectric Self supporting Aerial Cable PE Sheath with FRP Strength Member
ADSS All Dielectric Self supporting Aerial Cable PE Sheath with FRP Strength Member
ADSS All Dielectric Self supporting Aerial Cable PE Sheath with FRP Strength Member
ADSS All Dielectric Self supporting Aerial Cable PE Sheath with FRP Strength Member
ADSS All Dielectric Self supporting Aerial Cable PE Sheath with FRP Strength Member
Specifications
Brand Name :
FURONG
Model Number :
ADSS
Certification :
ROHS
MOQ :
1KM
Place of Origin :
GUANGDONG CHINA
Packaging Details :
wooden roll
Jacket Color :
Black
Jacket Material :
PE OR AT
FIBER COUNT :
4-144
FIBER TYPE :
G652D 9/125
SPAN :
100M, 150M, 200M
LENGTH PER ROLL :
2KM OR CUSTOMIZED
Description

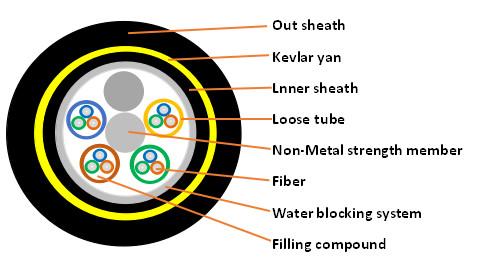

Dielectric Loose Tube Cable(ADSS)
Description
ADSS is an alternative to OPGW with lower installation cost. The cables are designed to be strong enough to allow lengths of up to 700 metres to be installed between support towers. ADSS cable is designed to be light weight and small in diameter to reduce the load on tower structures due to cable weight, wind, and ice.

Application
--Adopted to outdoor distribution Adopted to turk power transmission;
--System Access network and local network in high electromagnetic interfering places;
--Suitable for aerial pipeline laying method;
--Long distance and local area network communication.

Characteristics
--Non-Metal and kevlar yam strength member gaivanized Filling Compound;
--Good ultra violet radiation resistant property;
--Can be constructed without switching off the power.

--Dual sheath provides good protection for the fiber and ensure the tensile.

external diameter

(mm)

weight

(KG/KM)

tension

(KN)

maximum tension

(KN)

breaking strength

(KN)

Cross sectional area of tensile component

(mm2

Modulus of elasticity

(KN/
mm2)

 Operation, storage, transportation / temperature range(℃)

Coefficient of thermal expansion

(X10-6/K)

Suitable span(m)
(Corresponding

meteorological

conditions)
PE Outer sheath AT Outer sheath A B C D
12.5 125 136 1.5 4 10 4.6 7.6 -40~+60 1.8 160 100 140 100
13.0 132 142 2.25 6 15 7.6 8.3 -40~+60 1.5 230 150 200 150
13.3 137 148 3.0 8 20 10.35 9.45 -40~+60 1.3 300 200 290 200
13.6 145 156 3.6 10 24 13.8 10.8 -40~+60 1.2 370 250 350 250
13.8 147 159 4.5 12 30 14.3 11.8 -40~+60 1.0 420 280 400 280
14.5 164 177 5.4 15 36 18.4 13.6 -40~+60 0.9 480 320 460 320
14.9 171 185 6.75 18 45 22.0 16.4 -40~+60 0.6 570 380 550 380
15.1 179 193 7.95 22 53 26.4 18.0 -40~+60 0.3 670 460 650 460
15.5 190 204 9.0 26 60 32.2 19.1 -40~+60 0.1 750 530 750 510
15.6 194 208 10.5 28 70 33.0 19.6 -40~+60 0.1 800 560 800 560
16.3 211 226 12.75 34 85 40.0 20.1 -40~+60 0.1 880 650 880 650
16.8 226 242 15.45 41 103 48.0 24.0 -40~+60 -0.4 1000 750 1000 760
17.2 236 253 16.2 45 108 51.0 25.1 -40~+60 -0.5 1100 800 1100 830
17.9 249 266 18.0 50 120 58.8 26.1 -40~+60 -0.8 1180 880 1180 900



ADSS All Dielectric Self supporting Aerial Cable PE Sheath with FRP Strength MemberADSS All Dielectric Self supporting Aerial Cable PE Sheath with FRP Strength Member
