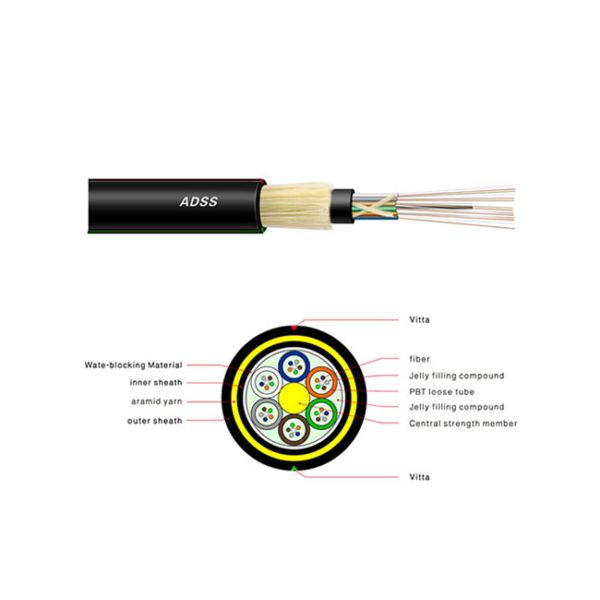

48 Core Armoured Fiber Optic Cable Singlemode ADSS Fiber Optic Cable
48 Core Armoured Fiber Optic Cable Singlemode ADSS Fiber Optic Cable
48 Core Armoured Fiber Optic Cable Singlemode ADSS Fiber Optic Cable
48 Core Armoured Fiber Optic Cable Singlemode ADSS Fiber Optic Cable
Specifications
Brand Name :
FURONG
Model Number :
ADSS
Certification :
ISO, SGS, ROHS
Place of Origin :
GUANGDONG
MOQ :
1000M
Price :
NEGOTIABLE
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000KM/DAY
Packaging Details :
2KM/ROLL
OUTER JACKET :
PE / AT
FIBER COUNT :
UPTO 288CORE
APPLICATION :
AERIAL
OEM :
LOGO, COMPANY NAME, PART NUMBER CUSTOMIZED
Structure :
All dielectric
STRENGTH MEMBER :
NON-METALIC
Description

Description

The ADSS fiber optic cables features a light type fiber optic cable without using conductive metal elements but strong enough to support itself between structures to work as alternative for OPGW cable at lower installation cost , this feature enable the ADSS cable share the same support structures as the electrical conductors.

ADSS cable is with light weight, small diameter design to reduce the load from the load on the tower structure due to the cable weight, wind and ice. the excessive slack fiber length prevents strain on the fiber to ensure good performance. It can be applied in short , medium, long span distance. ADSS cables offer a rapid and economical deployment for the CATV operators, telephone companies and pwoer utilities.

Advantages:

1. Light weighted and small diameter to reduce the load caused by ice, wind ect for the worst case combination of temperature.

2. Different span length with largest span over 1000m.

3. Cost saving , can erect on the same pole with power line

General Details:

Model Number ADSS
Type Coaxial
Number of Conductors ≥ 10
Application Aerial fiber cable
Function Delivery signal light
Certification ADSS pass ISO9001,UL, SGS, CE
Sheath material PE or AT for adss fiber optic cable
Fiber type OS1/OS2,OM1,OM2,OM3,OM4
Length per roll 2km/3km/4km ADSS fiber
Marking Printing
Fiber count 2 to 288 core
Strength member FRP

Optical Fiber Performance:

Fiber Type G.652D,125.0+-1.0μm
Mode Field Diameter 9.2+-0.2μm at 1310 nm
Cladding Diameter 125+-1μm
Cladding Non-Circularity <=1%
Coating Diameter 245+-10μm
Attenuation Coefficient <=0.38dB/km at 1310nm,<=0.22dB/km at 1550nm
Chromatic Dispersion <=3.5ps/nm/km at1285-1330nm,<=18ps/nm/km at 1550nm
Zero Disperson Wavelength 1300-1322nm
PMD Coefficient <=0.2ps/√km
