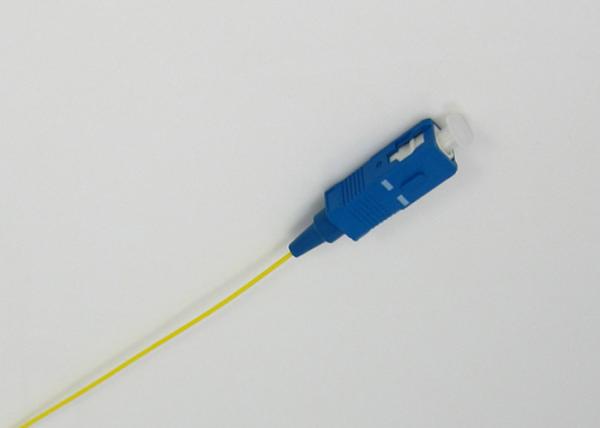

SC / UPC 9 / 125 Tight Buffered G652D OS2 Splicing Fiber Optic Cable
SC / UPC 9 / 125 Tight Buffered G652D OS2 Splicing Fiber Optic Cable
SC / UPC 9 / 125 Tight Buffered G652D OS2 Splicing Fiber Optic Cable
SC / UPC 9 / 125 Tight Buffered G652D OS2 Splicing Fiber Optic Cable
Specifications
Brand Name :
FURONG
Model Number :
PIGTAIL-SCA
Certification :
ROHS, SGS, ISO
Place of Origin :
CHINA
MOQ :
1
Price :
NEGOTIABLE
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20000PCS
Delivery Time :
DEPENDS ON QUANTITY
Packaging Details :
PE BAG
CABLE DIAMETER :
0.9MM OR 2.0 OR 3.0
FIBER TYPE :
G652D OS2
STRUCTURE :
TIGHT BUFFERED
CONNECTOR TYPE :
SC / UPC
LENGTH :
CUSTOMIZED
FIBER CORE :
SINGLE FIBER OR MUTLICORE
Description

Description:

SC UPC SM fiber optic pigtail is with singlemode fiber cable one side terminated with SC UPC connectors. The pigtails are utilised in terminationg optical fibers either by fusion or mechanical splicing, typically the fiber optic pigtails are using 0.9mm tight buffered, semi loose tube, loose tube fiber cable with various connectors. High quality pigtails combined with correct fusion splicing practices offer the best performance possible for fiber optic cable terminations.

The fiber optic pigtail connectors are compliant to IEC, TIA/EIA, NTT and JIS specifications. It is with one piece construction and pulls proof design. Low cost but high performance, which makes it one of the most popular cables. We supply the single mode 9/125, multimode 50/125 , multimode 10Gb 50/125 and multimode 62.5/125 types fiber optic pigtail cables. They are with various PC, UPC, and APC connectors respectively. Our fiber pigtails are available in simplex or duplex versions, with custom design available

Features:

1. Low insertion loss and high return loss

2. Good Exchange ablility and durability

3. Semi tight, loose tube, tight buffered fiber cable avaiable

4. 0.9mm, 2.0mm, 3.0mm diameter pigtai available

5. Bundle type and ribbon fanout fiber pigtail available

6. IEC, RoHS ext international standard compliant

7. Data sheet is with each cable

Applications for the SC UPC fiber optic pigtail:
1. CATV, metro test equipment;
2. Telecommunication networks;
3. Local area networks (LAN);
4. Wide area networks (WAN);
5. Premise installations;
6. Data processing networks;
7. Video and military active device termination.

Optical Characteristics:

Fiber Type Various SM MM
Connector Type FC, SC, ST, LC, MU FC, SC, ST, LC, MU
Insertion Loss (Typical) ≤0.3dB ≤0.3dB
Return Loss (typical) PC ≥50dB ≥35dB
UPC ≥55dB ≥35dB
APC ≥65dB
Mating Durability ≤0.2dB
Storage Temperature 40℃～+ 80℃
Durability ≥1000 times
Working Temperature - 20℃～+ 80℃

SC / UPC 9 / 125 Tight Buffered G652D OS2 Splicing Fiber Optic CableSC / UPC 9 / 125 Tight Buffered G652D OS2 Splicing Fiber Optic Cable
