GYTC8S SM / MM Self - Support Outdoor Fiber Optical Cable for Communication
GYTC8S SM / MM Self - Support Outdoor Fiber Optical Cable for Communication
GYTC8S SM / MM Self - Support Outdoor Fiber Optical Cable for Communication
GYTC8S SM / MM Self - Support Outdoor Fiber Optical Cable for Communication
Specifications
Brand Name :
Furong
Model Number :
GYTC8S
Certification :
SGS, ISO
Place of Origin :
DONGGUANG CHINA
MOQ :
2KM
Price :
NEGOTIABLE
Supply Ability :
2000KM/DAY
Packaging Details :
WOODEN DRUM
Jacket :
PE
Strength Member :
METAL
Fiber Core :
2-144
FIBER TYPE :
SM OR MM
Structure :
Figure 8
Messenger :
Steel
Description

Description:

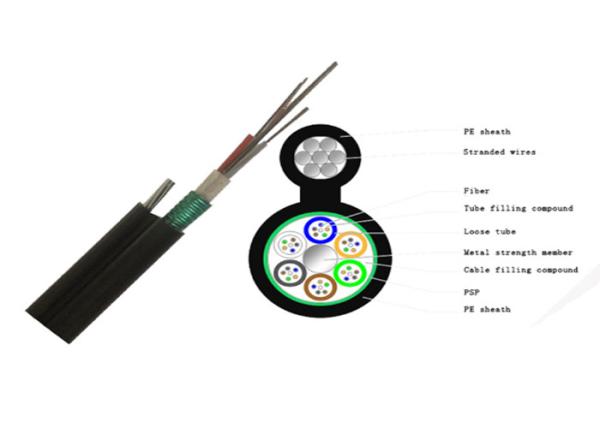

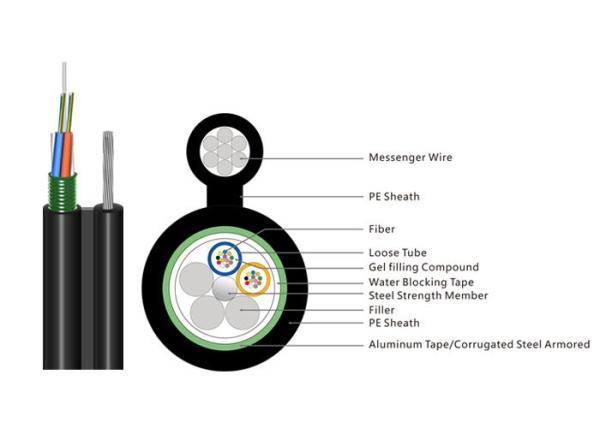

In the GYTC8S cable, single-mode/multimode fibers are positioned in the loose tubes, while the loose tubes strand together around metallic central strength member into a compact and circular cable core, and the water-blocking materials are distributed into interstices of it. After a PSP/APL is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a PE sheath to be a figure-8 structure.

Features

--Low dispersion and attenuation.
--Loose tube is filled with special ointment for a key fiber protection.
--The armoring of corrugated steel tape makes cable have nice moisture resistance and crush resistance performance.
--Small cable diameter, light cable weight, self-supporting, easily to install.


Specification:

Cable Count Out sheath
Diameter		 Weight

Minimum allowable

Tensile Strength
(N)

minimum allowable

Crush Load
(N/100mm)

Minimum Bending

Radius
(MM)

 Storage
temperature
(MM) (KG) short term long term short term long term short term long term (°C)
6 3.0×9.8 54.00 1000 200 1000 200 20D 10D -40+60
12 3.0×9.8 54.00 1000 200 1000 200 20D 10D -40+60
24 7.0×14.5 210.0 3000 1000 3000 1000 20D 10D -40+60
36 7.0×14.5 210.0 3000 1000 3000 1000 20D 10D -40+60
42 7.0×14.5 210.0 3000 1000 3000 1000 20D 10D -40+60
48 7.0×15.5 210.0 3000 1000 3000 1000 20D 10D -40+60
72 7.0×15.5 245.0 3000 1000 3000 1000 20D 10D -40+60
144 7.0×15.5 285.0 3000 1000 3000 1000 20D 10D -40+60

GYTC8S SM / MM Self - Support Outdoor Fiber Optical Cable for CommunicationGYTC8S SM / MM Self - Support Outdoor Fiber Optical Cable for Communication
