GYXTW53 Central Tube Direct Burial Outdoor Fiber Optic Cable 2 to 24 Fiber Count
GYXTW53 Central Tube Direct Burial Outdoor Fiber Optic Cable 2 to 24 Fiber Count
GYXTW53 Central Tube Direct Burial Outdoor Fiber Optic Cable 2 to 24 Fiber Count
GYXTW53 Central Tube Direct Burial Outdoor Fiber Optic Cable 2 to 24 Fiber Count
Specifications
Brand Name :
Furong
Model Number :
GYXTW53
Certification :
SGS, ISO
Place of Origin :
DONGGUANG CHINA
MOQ :
2KM
Price :
NEGOTIABLE
Supply Ability :
2000KM/DAY
Packaging Details :
WOODEN DRUM
Water Resistance :
YES
Application :
Direct buried
Fiber Core :
2-24
Package :
Wooden Drum 1-4km/drum
OEM :
Accepted
Structure :
Central Loose Tube
Description

Description:

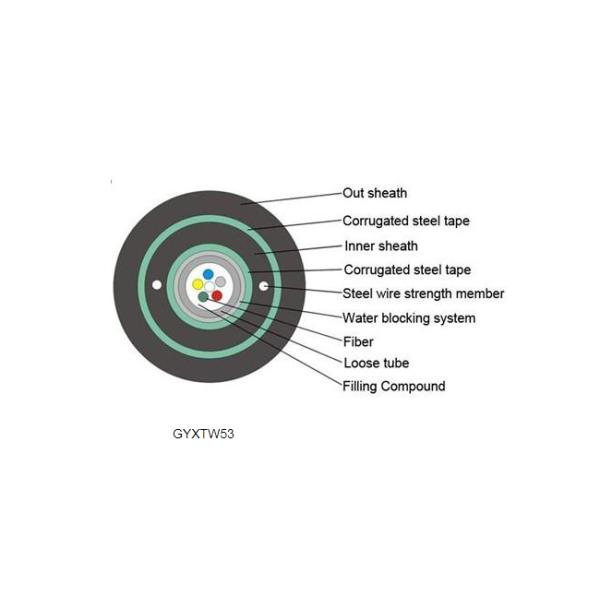

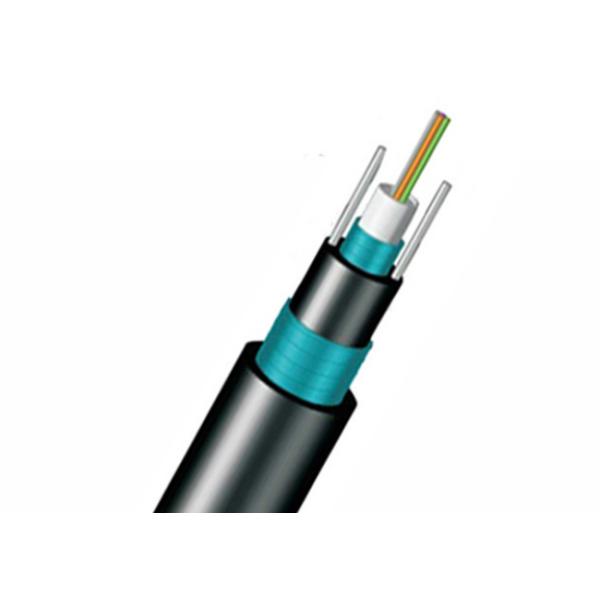

GYXTW53 is an Outdoor Communication Optical Fiber Cable of the loose tube jelly-filled structure, with polyethylene laminated sheath longitudinally covered with corrugated steel-tape armored polyethylene outer sheath..

Features

1. Full cross-section water-blocking structure to ensure good water blocking and moisture resistance.
2. Loose tube is filled with special ointment for key protection of optical fiber.
3. Double-sided vertically-clad corrugated steel-tape armor effectively improves the resistance to lateral pressure.
4. More than 30 years of service life

5. Steel-wire parallel member, filler protect tube fiber , and steel tape amored.
6. Excellent mechanical and environmental performance
7. can be installed conveniently and operated simply.

Application

--Adopted to Outdoor distribution.
--Suitable for aerial duct and buried method
--Long distance and local area network communication

Cable

Count

 Outer sheath
Diameter		 Weight Minimum allowable Tensile minimum allowable Crush Load
(N/100mm)		 Minimum Bending Storage
temperature
(MM) (KG) short term long term short term long term short term long term Degree
2 12.0 165.00 3000 1000 1500 500 20D 10D -40+60
4 12.0 165.00 3000 1000 1500 500 20D 10D -40+60
6 12.0 165.00 3000 1000 1500 500 20D 10D -40+60
8 12.0 165.00 3000 1000 1500 500 20D 10D -40+60
10 12.0 165.00 3000 1000 1500 500 20D 10D -40+60
12 12.0 165.00 3000 1000 1500 500 20D 10D -40+60
24 12.0 165.00 3000 1000 1500 500 20D 10D -40+60

GYXTW53 Central Tube Direct Burial Outdoor Fiber Optic Cable 2 to 24 Fiber CountGYXTW53 Central Tube Direct Burial Outdoor Fiber Optic Cable 2 to 24 Fiber Count
