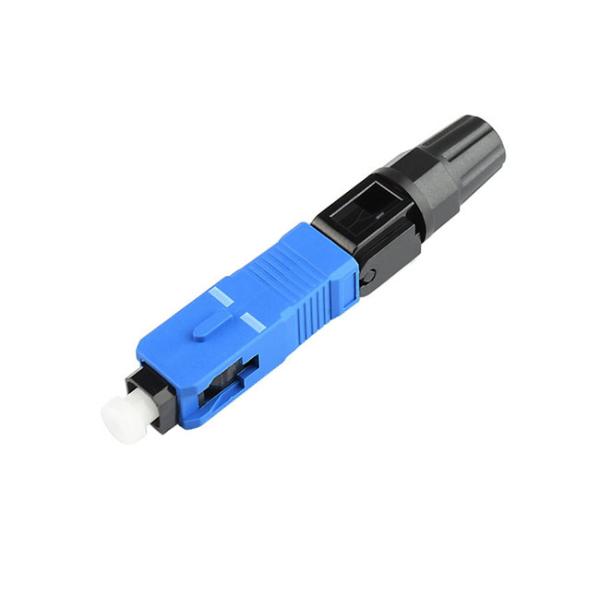

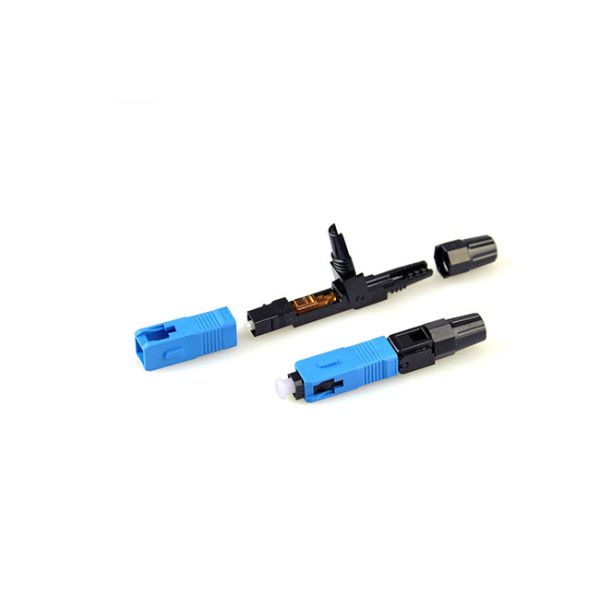

SC / UPC Fiber Optic Fast Connector for FTTH Projects Field Termination
SC / UPC Fiber Optic Fast Connector for FTTH Projects Field Termination
SC / UPC Fiber Optic Fast Connector for FTTH Projects Field Termination
SC / UPC Fiber Optic Fast Connector for FTTH Projects Field Termination
Specifications
Brand Name :
FURONG
Model Number :
FASTCSC60
Certification :
ISO , ROHS
Place of Origin :
SHENZHEN
MOQ :
100
Price :
NEGOTIABLE
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300000PCS
Packaging Details :
PLASTIC TRAY
Connector Type :
SC
Endface :
UPC
Insertion Los :
0.3dB
Operation Temperature :
-40~+85°C
Fiber :
Singlemode
Coating Diameter :
250um
Description

Fast connectors make fiber terminations fast, easy and reliable. These fiber optic connectors offer terminations without any hassles and require no epoxy, no polishing, no splicing, no heating and can achieve similar excellent transmission parameters as standard polishing and splicing technology. Assembly of the quickly assembly fiber connector requires only normal fiber preparation tools, no electrical power supply is needed.

Features

1. Easy to operate can save time

2. 100% qualified, reduce the maintenance cost.

3. Easy to assembling with mechanical splice and no polishing

4. High stablity low insertion loss ,high return loss

Application:

1) CATV & FTTH

2) Telecommunication networks

3) Local area networks (LAN)

4) Wide area networks (WAN)

5) Premise installations

6) Data processing networks

7) Video and military active device termination

8) Optical Distribution Frame

9) Optical Network Equipments

Optical Characteristics :

ITEM Technical Parameters
Applicable for φ2.0mm.φ3.0mmφ0.90 mm cable and FTTH drop cable 2x3mm
Optical fiber diameter 125μm ( SM&OM3&62.5 )
Tight buffer diameter 250μm
Fiber mode Single
Operation time About 100s(no fiber cut)
Insert loss ≤ 0.3dB(1310nm & 1550nm)
Return loss ≤ -55dB
Fastening strength of naked fiber >2N
Fastening strength of naked fiber holder >10 N
Tensile strength >40 N
Using temperature -40～+75℃
On-line tensile strength (20 N) △ IL ≤ 0.3dB △ RL ≤ 5dB
Mechanical durability (500 times) △ IL ≤ 0.3dB △ RL ≤ 5dB

Drop-off test (drop-off height 4m,

once per direction, totally 3 times)

 △ IL ≤ 0.3dB △ RL ≤ 5dB

SC / UPC Fiber Optic Fast Connector for FTTH Projects Field TerminationSC / UPC Fiber Optic Fast Connector for FTTH Projects Field Termination
