12 Core Single Mode GYXTC8S Outdoor Fiber Optical Cable for Long Haul Communication
12 Core Single Mode GYXTC8S Outdoor Fiber Optical Cable for Long Haul Communication
12 Core Single Mode GYXTC8S Outdoor Fiber Optical Cable for Long Haul Communication
12 Core Single Mode GYXTC8S Outdoor Fiber Optical Cable for Long Haul Communication
Specifications
Brand Name :
Furong
Model Number :
GYXTC8S
Certification :
SGS, ISO
Place of Origin :
DONGGUANG CHINA
MOQ :
2KM
Price :
NEGOTIABLE
Supply Ability :
2000KM/DAY
Packaging Details :
WOODEN DRUM
Loose Tube Material :
PBT
Application :
Ariel
Fiber Core :
12
Strength Member :
Steel Wire
OEM :
Accepted
Structure :
Central Loose Tube
Description

Description:

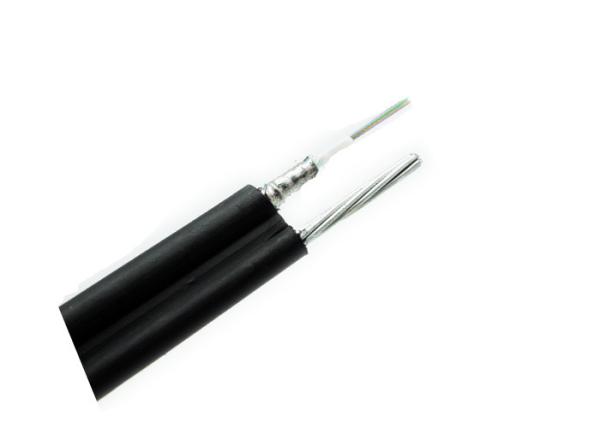

GYXTC8S fiber optic cable is a figure 8 structure cable suitable for installation in aerial environment for long haul communications. This optical cable is 2cores to 24 cores types available.

GYXTC8S features the centrally situated loose tube with good excess length and minimize the influence of lateral crush. The water resistant tape provides water tight property. Corrugated steel tape armor and the PE outer sheath of GYXTC8S fiber optic cable provide crush resistance and gun shot resistance. The cross section shows figure 8. Stranded wires as self supporting member providing excellent strain performance and convenient installation for this GYXTC8S fiber cable.

Features

--High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cast

--Good mechanical and temperature performance

--High strength loose tube that is hydrolysis resistant

--Special tube filling compound ensure a critical protection of fiber

Specification

Fiber

Count

 Tubes Fillers

Cable

Diameter

(mm)

Cable

Weight

(kg/km)

Tensile

Strength

Long/Short

Term (N)

Crush

Resistance

Long/Short

Term (N/100mm)

Bending

Radius

Static/Dynamic

(mm)
2~6 1 4 6.8*9.2*1.8 214 600/1500 300/1000 10D/20D
8~12 2 3 6.8*9.2*1.8 214 600/1500 300/1000 10D/20D
14~18 3 2 6.8*9.2* 1.8 214 600/1500 300/1000 10D/20D
20~24 4 1 6.8*9.2* 1.8 214 600/1500 300/1000 10D/20D
26~30 5 0 6.8*9.2* 1.8 214 600/1500 300/1000 10D/20D
12 Core Single Mode GYXTC8S Outdoor Fiber Optical Cable for Long Haul Communication12 Core Single Mode GYXTC8S Outdoor Fiber Optical Cable for Long Haul Communication
