Corrugated Steel Armoured Fiber Optic Cable GYTS Multi Loose Tube
Corrugated Steel Armoured Fiber Optic Cable GYTS Multi Loose Tube
Corrugated Steel Armoured Fiber Optic Cable GYTS Multi Loose Tube
Corrugated Steel Armoured Fiber Optic Cable GYTS Multi Loose Tube
Specifications
Brand Name :
Furong
Model Number :
GYTS
Certification :
SGS, ISO
Place of Origin :
DONGGUANG CHINA
MOQ :
2KM
Price :
NEGOTIABLE
Supply Ability :
2000KM/DAY
Packaging Details :
WOODEN DRUM
Outer Jacket :
PE UV Resistance
Central Strength Member :
FRP OR STEEL
Moister Armored :
Corrugated steel tape
Package :
Wooden Drum 1-4km/drum
OEM :
Accepted
Fiber Type :
singlemode or multimode
Description

Description:

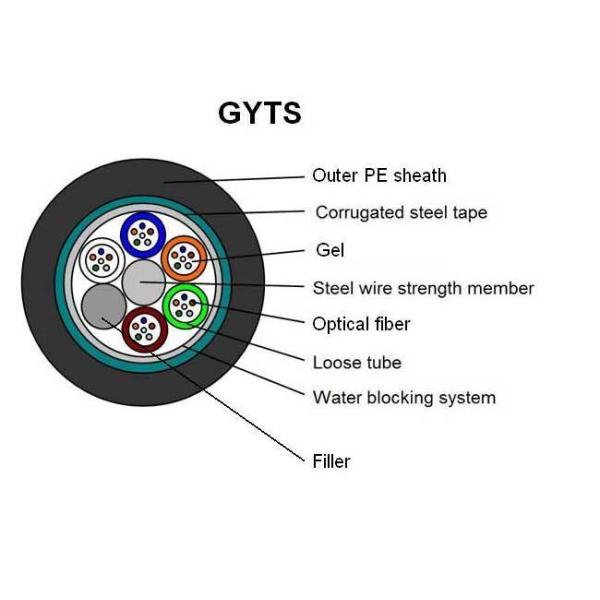

The type of this fiber with single-mode or multimode with a loose tube which is made of high modulus plastic. There is used a water-resistant filling compound for filling. The center used a steel wire locates as a metallic strength member. For some cable, a steel wire sometimes sheathed with polyethylene. The tubes ( and filers ) are stranded around the strength member into a compact and circular cable core. Double sides chromium for PSP with PE as sheath. By single or double wire for installation, also with PE for outer sheath.

Features

1. Good mechanical and temperature performance.
2. Heigh strength loose tube that is hydrolysis resistand
3. Specially tube filling compound ensure a critical protection of fiber
4. Specially designed compact structure is good at preventing loose tubes from shrinking
5. PE sheath protects cable from ultraviolet radiation
6. Steel wire used as the central strength member
7.100% cable filling core filling
8. Loose tubes filling compound
9. APL moisture barrier

Cable Parameters

Fiber Type G.652 G.655 50/125^m 62.5/125^m

Attenuation

(+20X)

 850 nm <3.0 dB/km <3.3 dB/km
1300 nm <1.0 dB/km <1.0 dB/km
1310 nm <0.36 dB/km <0.40 dB/km
1550 nm <0.22 dB/km <0.23 dB/km
Bandwidth 850 nm >500 MHz-km >200 Mhz-km
1300 nm >500 MHz-km >500 Mhz-km
Numerical Aperture 0.200±0.015 NA 0.275±0.015 NA
Cable Cut-off Wavelength cc <1260 nm <1450 nm

Fiber

Count

Nominal

Diameter

(mm)

Nominal

Weight

(kg/km)

 Max Fiber
Per Tube		 Max No. of
(Tubes+fillers)

Allowable Tensile Load

(N)

 Allowable Crush Resistance
(N/100mm)
Short Term Long Term Short Term Long Term
2~30 9.7 96 6 5 1500 600 1800 800
32~48 10.7 111 8 6 1500 600 1800 800
50~72 11.6 136 12 8 2000 600 1800 800
74~96 13.0 166 12 10 2000 600 1800 800
98~144 15.1 228 12 12 2500 600 1800 800
