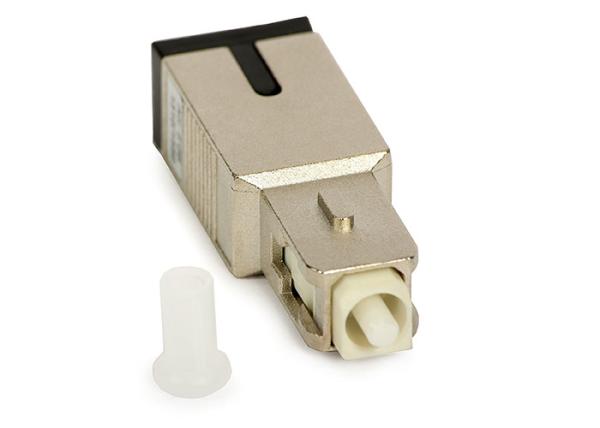

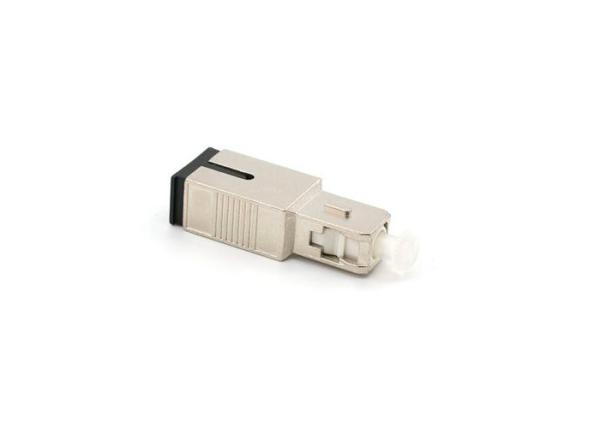

Female to Male 1310/1550nm Singlemode Fiber Optic Attenuator with SC Connectors - UPC Polish
Female to Male 1310/1550nm Singlemode Fiber Optic Attenuator with SC Connectors - UPC Polish
Female to Male 1310/1550nm Singlemode Fiber Optic Attenuator with SC Connectors - UPC Polish
Female to Male 1310/1550nm Singlemode Fiber Optic Attenuator with SC Connectors - UPC Polish
Specifications
Brand Name :
FURONG
Model Number :
ATT-SC-XDB
Certification :
ROHS
Place of Origin :
CHINA
MOQ :
1
Price :
NEGOTIABLE
Supply Ability :
10000000
Delivery Time :
1-8DAYS
Packaging Details :
CARTON
HOUSING :
PLASTIC
CONNECTOR TYPE :
SC MALE TO SC FEMALE
TOLERANCE :
10%
ATTENUATION LEVEL :
0-30DB
POLARIZATION Dependent Loss :
≤0.1dB
STRUCTURE :
PLUG IN
Description

Fiber optic attenuators are used in the fiber optic communications to reduce the optical fiber power at a certain level, the most commonly used type is female to male plug type fiber optic attenuator, it has the optical fiber connector at one side and the other side is a female type fiber optic adapter, fiber optic attenuator name is based on the connector type and the attenuation level.SC 5dB fiber optic attenuator means this attenuator uses SC fiber optic connector and it can reduce the optical fiber power level by 5dB. Commonly used attenuation range is from 1dB to 20dB.

Adjustable fiber optic attenuator, also called variable fiber optic attenuator , usually is inline type, the appearance like fiber optic patch cord; it is with an adjustable component in the middle of the device to change the attenuation level to a certain figure. There are also handheld variable fiber optic attenuators; they are used as test equipment, and we have the inline fiber optic attenuators .

PARAMETERS

Attenuation Value 1dB ~ 30dB
Operating Wavelength 1240 ~ 1620nm (Dual 1310/1550nm)
Premium
Return Loss UPC >55dB
APC >65dB

Attenuation

Accuracy

 1 ~ 7 dB ±0.5dB
8 ~ 12 dB ±0.7dB
13 ~ 17 dB ±1.0dB
18 ~ 25 dB ±1.3dB
Maximum Optical Input Power 1000mW
Polarization Dependent Loss ≤0.1dB
Operating Temperature Range -40 to 75
Storage Temperature Range -40 to 85
Humidity 95%RH

Female to Male 1310/1550nm Singlemode Fiber Optic Attenuator with SC Connectors - UPC PolishFemale to Male 1310/1550nm Singlemode Fiber Optic Attenuator with SC Connectors - UPC Polish
