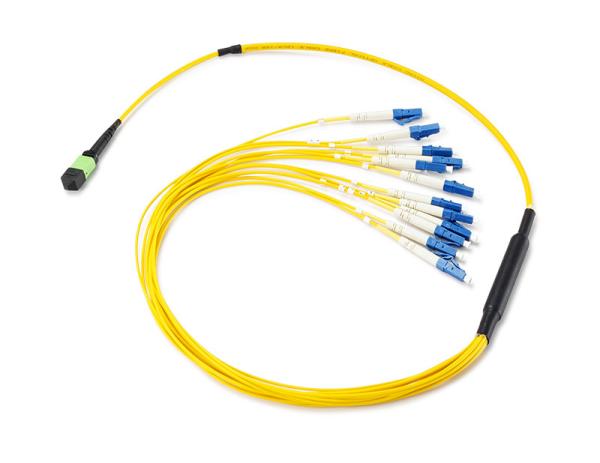

Flat Round MPO MTP Fiber Optic Patch Cord , 12 Core Ribbon Fiber Cable OFNR Jacket
Flat Round MPO MTP Fiber Optic Patch Cord , 12 Core Ribbon Fiber Cable OFNR Jacket
Flat Round MPO MTP Fiber Optic Patch Cord , 12 Core Ribbon Fiber Cable OFNR Jacket
Flat Round MPO MTP Fiber Optic Patch Cord , 12 Core Ribbon Fiber Cable OFNR Jacket
Flat Round MPO MTP Fiber Optic Patch Cord , 12 Core Ribbon Fiber Cable OFNR Jacket
Flat Round MPO MTP Fiber Optic Patch Cord , 12 Core Ribbon Fiber Cable OFNR Jacket
Flat Round MPO MTP Fiber Optic Patch Cord , 12 Core Ribbon Fiber Cable OFNR Jacket
Flat Round MPO MTP Fiber Optic Patch Cord , 12 Core Ribbon Fiber Cable OFNR Jacket
Specifications
Brand Name :
FURONG
Model Number :
MPO fiber patch cord
Certification :
ROHS
Place of Origin :
Guangdong China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
30,000 per month
Delivery Time :
3-10 working days after received your payment
Packaging Details :
Per fiber optic patch cord will have Individual Plastic Poly Bag
Fiber Types :
G652D, G655,G657A,G657B,OM1,OM2,OM3, OM4
Optional Connectors :
LC,SC,FC,ST,MU,MTRJ,MTP,MPO,E2000,ESCON,DIN,D4,SMA,
Mode :
SingldeMode, MultiMode
Insertion Loss :
UPC< 0.2dB, APC<0.3dB
Return Loss (Back Reflection) :
UPC>55dB, APC>65dB
Polishing type :
UPC, APC
Jacket material :
PVC
Outer Diameter :
2.0mm,3.0mm
Description

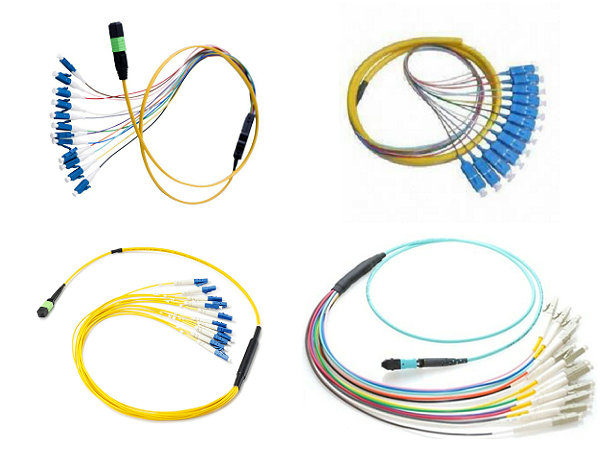

Flat Round MPO MTP Fiber Optic Patch Cord , 12 Core Ribbon Fiber Cable OFNR Jacket

Quick Details:

  1. Name: MPO fiber patch cord
  2. Ferrule End-face: PC, UPC, APC
  3. Mode: OS1, OS2, OM1, OM2, OM3, OM4
  4. Cable Type: Ribbon fiber optic cable, Flat and Round
  5. Cable Jacket: LSZH, OFNR, OFNP, PVC
  6. Cable core: 4core, 6core, 8core, 12core, 24core


Desciption:


MTP/MPO fiber optic patch cord is used in Ribbon type multi fiber assemblies, unlike simplex or duplex.

There are several fiberglass connections in one MTP/MPO fiber optic patch cord, for example, 4 fibers,

8 fibers, 12fibers, 24 fibers.

Features:

  1. Single mode and Multimode (Flat/Round) available
  2. Fiber in single connector: 4, 8, 12 24
  3. Insert/Pull latching connector
  4. High reflection loss with APC
  5. Comply with Telcordia GR-1435-CORE specification and Rosh standard
  6. High fiber density (maximum 24 fibers for Multimode)


Applications:

  1. Video transmission , Data transmission
  2. Active Device Termination
  3. Premise Installations
  4. FTTH , CATV, LAN, MAN, WAN, Test &Measuremen
  5. Telecommunication and Data processing Networks
  6. Systems Integration for Railway, Metro and Access Network
  7. Fiber to the Indoor (FTTX) Test


Specification:



Fiber Connector

Connector Type

Fiber MPO/MTP (non-pinned)

Ferrule of end-face

UPC(MM); APC(SM)

Housing Color

MM (Beige), MM Elite (Aqua), SM (Yellow/Green)

Insertion Loss, Typical

≤ 0.10 dB

Insertion loss, max.

≤ 0.35 dB

Durability(500 Matings)

< 0.2dB


Fiber Cable

Fiber Type

OS2, OM1, OM2, OM3, OM4

Fiber Count

12, 24, 48, 72, 96, 144 cores

Cable Outer diameter

12cores:4.5±0.2mm ; 24cores:5.4±0.2mm

Outer jacket Color

OS2(Yellow),OM2(Orange),OM3(Aqua),OM4(Violet)

Outer jacket material

LSZH,OFNP,OFNR

Tensile strength

500N

Operating Temperature

-20 ~ +60°C

Storage Temperature

-40 ~ +70°C

Our advantage


1. Professional cable manufacturer.
2. We provide good quality Fiber Optic cable with manufacture competitive price
3. Best delivery time
4. OEM service provide,Your own logo and own design are welcomed.
5. Long distance factory review by video talk
6. Can be customized production of fiber optic cable
7. 30 years cable service life , even 60 years cable service life.

Flat Round MPO MTP Fiber Optic Patch Cord , 12 Core Ribbon Fiber Cable OFNR Jacket
