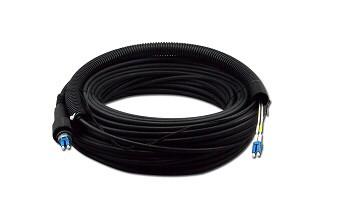

Optical Cable Assembly ST-LC Multimode Fiber Patch Cable For Industrial
Optical Cable Assembly ST-LC Multimode Fiber Patch Cable For Industrial
Specifications
Brand Name :
FURONG
Model Number :
Outdoor PDLC Black Fiber Optic Cable
Certification :
ROHS
Place of Origin :
Guangdong China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
30,000 per month
Delivery Time :
3-10 working days after received your payment
Packaging Details :
Per fiber optic patch cord will have Individual Plastic Poly Bag
Fiber Types :
G652D, G655,G657A,G657B,OM1,OM2,OM3, OM4
Optional Connectors :
LC,SC,FC,ST,MU,MTRJ,MTP,MPO,E2000,ESCON,DIN,D4,SMA
Mode :
SingldeMode, MultiMode
Insertion Loss :
UPC< 0.2dB, APC<0.3dB
Return Loss (Back Reflection) :
UPC>55dB, APC>65dB
Polishing type :
UPC, APC
Jacket material :
PVC, LSZH
Outer Diameter :
7.0mm
Description

Optical Cable Assembly ST-LC Multimode Fiber Patch Cable For Industrial

Optical Cable Assembly,DLC/PC,DLC/PC,Multi-mode,GYFJH 2A1a(LSZH),100m,7.0mm,2 Cores,0.03m/0.34m,2mm,Outdoor Protected Branch Cable

Description:

The PDLC connectors, together with the support optical cable, are becoming the standard interface specified in 3G, 4G and WiMax Base Station remote radios and Fiber-to-the-Antenna applications. The product however, is not limited to the above applications.

The PDLC cable assemblies have passed tests like salt mist, vibration and shock and meet protection class IP67.

They are well suited for Industrial and Aerospace and Defense applications.

Best solution for Fiber To the Antenna; Soft, flexible, water blocked, UV resistant; Customized products accept.


Features:

  • Open bulkhead for easy access to SFP
  • Positive mechanical feedback to operator when fully mated
  • One-hand mating
  • Multimode and single mode
  • Water proof, dust proof and corrosion resistant
  • Expansion to RJ45 and Power possible
  • Plug has tolerance free design, fully free floating on Z-axis
  • No Cable buckling during or after installatoin
  • Cost effective metal die cast bulkhead
  • Field installable version available
  • Duplex LC interface
  • Bulkhead cutout allows for removal of transceiver through the bulkhead (no need to open PRH for
  • transceiver replacement)
  • Robust bayonet locking for easy, fast, and secure mating

Applications:

  • 3G 4G base station used
  • Aerospace & Defence
  • Equipment diagnosis
  • FTTA ,FTTP, FTTX,WIMAX
  • BBU, RRU, RRH, LTE

PDLC Outdoor Armoured Fiber Assembly Specifications

Item

Data

Insertion Loss

≤0.3dB

Mechanical life

500cycles

Working temperature

-40°C~+70°C

Storage temperature

-40°C~+70°C

Operating temperature

-10°C~+50°C

Protection Level

IP67

Tensile Data

Tensile between junction and fiber cable≥180N

Out shell inflaming retarding

UL94 V-0

Out shell Uvioresistant

UL 746C

Authentication

Meet with RoHS

GYFJH 7.0mm fiber cable Specification

Item

Data

fiber

Single mode G.657A1 or G.657A2

Fiber diameter

7.0mm

Material & color for jacket

LSZH black

Tension member

Aramid fiber

Max. attenuation

≤ 0.4dB/km at 1310nm

≤0.3dB/km at 1550nm

Tensile resistance(short term)

500N(no breakage)

Crush resistance(short term/long term)

1000N/100mm

inflaming retarding

IEC 60332-3

Temperature

-40~+70°C

Uvioresistant

PASS

Authentication

Meet with RoHS &UL

Optical Cable Assembly ST-LC Multimode Fiber Patch Cable For Industrial
