Duplex Zipcord Indoor Fiber Optic Cable 2 Core With PVC or LSZH Jacket
Duplex Zipcord Indoor Fiber Optic Cable 2 Core With PVC or LSZH Jacket
Duplex Zipcord Indoor Fiber Optic Cable 2 Core With PVC or LSZH Jacket
Duplex Zipcord Indoor Fiber Optic Cable 2 Core With PVC or LSZH Jacket
Duplex Zipcord Indoor Fiber Optic Cable 2 Core With PVC or LSZH Jacket
Duplex Zipcord Indoor Fiber Optic Cable 2 Core With PVC or LSZH Jacket
Duplex Zipcord Indoor Fiber Optic Cable 2 Core With PVC or LSZH Jacket
Duplex Zipcord Indoor Fiber Optic Cable 2 Core With PVC or LSZH Jacket
Duplex Zipcord Indoor Fiber Optic Cable 2 Core With PVC or LSZH Jacket
Duplex Zipcord Indoor Fiber Optic Cable 2 Core With PVC or LSZH Jacket
Specifications
Brand Name :
FURONG
Model Number :
duplex zipcord cable
Certification :
ROHS
Place of Origin :
Guangdong China
MOQ :
10KM
Price :
negotiation
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
6000Km per Month
Delivery Time :
3-10 working days after received your payment
Packaging Details :
Wooden Drum or Iron wood tray
Fiber Count :
2
Fiber :
652D or 657A
Jacket material :
PVC or LSZH
Operation temp :
-20℃~ +70℃
Color :
yellow or orange
Mode :
Single mode or Multi mode
Description

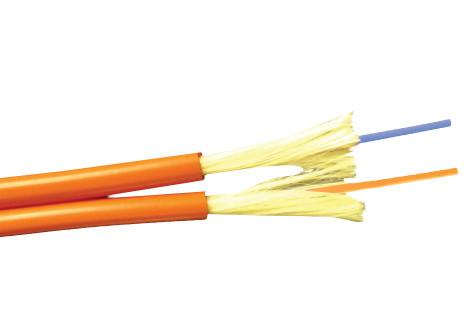

Duplex Zipcord Indoor Fiber Optic Cable 2 Core With PVC or LSZH Jacket

Fiber count

Outer diameter(mm)

Nominal weight

Min bending
radius(mm)

Max tensile strength

dynamic

static

Short term

Long term

2

1.6*3.3~2.8*5.7

5.7~13.2

20H

10H

160

300



Specification

Fiber count

2

Outer diameter(mm)

1.6*3.3

1.8*3.7

2.0*4.1

2.8*5.7

Nominal weight(kg/km)

5.7

6.7

8.2

13.2

Max.tensile strength(N)

Short term

160

160

200

300

Long term

80

80

100

160

Min bending radius

dynamic

20H

static

10H

Max.crush resistance(N/100m㎡)

1000



Description

High strength aramid yarn strength member ensures high tensile strength and long term stable transmission for optical faibers.
Small outer diameter,lightweight,flame-retartant,easy to strip, low attenuation,physically soft
Direct splicing between tight buffered cables without the need of tie-in box or pigtail,suitable for installation,operation and convenient for maintenance.

Applications

As building to building connecting cable.
As indoor soft cable along the wall,ceiling,between layers and in conduits
As pigtails,movable connectors and patch cords for communication equipment


Features

1. Good mechanical and environmental performance;
2. Flame-retardant properties to meet the requirements of the relevant standards;
3. The mechanical characteristics meet the requirements of the relevant standards;
4. Soft,flexible,easy to splice,and with big capacity date transmission;
5. Meet various requirements of market and clients.

Our advantage

1. Professional cable manufacturer.
2. We provide good quality Fiber Optic cable with manufacture competitive price
3. Best delivery time
4. OEM service provide,Your own logo and own design are welcomed.
5. Long distance factory review by video talk
6. Can be customized production of fiber optic cable
7. 30 years cable service life , even 60 years cable service life.


Duplex Zipcord Indoor Fiber Optic Cable 2 Core With PVC or LSZH Jacket
