High Density Compact SM 24 Strand LSZH Indoor Ribbon Fiber Optic Cable
High Density Compact SM 24 Strand LSZH Indoor Ribbon Fiber Optic Cable
High Density Compact SM 24 Strand LSZH Indoor Ribbon Fiber Optic Cable
High Density Compact SM 24 Strand LSZH Indoor Ribbon Fiber Optic Cable
High Density Compact SM 24 Strand LSZH Indoor Ribbon Fiber Optic Cable
High Density Compact SM 24 Strand LSZH Indoor Ribbon Fiber Optic Cable
High Density Compact SM 24 Strand LSZH Indoor Ribbon Fiber Optic Cable
High Density Compact SM 24 Strand LSZH Indoor Ribbon Fiber Optic Cable
High Density Compact SM 24 Strand LSZH Indoor Ribbon Fiber Optic Cable
High Density Compact SM 24 Strand LSZH Indoor Ribbon Fiber Optic Cable
Specifications
Brand Name :
FURONG
Model Number :
24 core ribbon cable GJDFJV
Certification :
ROHS
Place of Origin :
Guangdong China
MOQ :
10KM
Price :
negotiation
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
6000Km per Month
Delivery Time :
3-10 working days after received your payment
Packaging Details :
Wooden Drum or Iron wood tray
Fiber Count :
24
Fiber :
652D or 657A
Jacket material :
PVC or LSZH
Operation temp :
-20℃~ +70℃
Color :
yellow or orange
Mode :
Single mode or Multi mode
Description

24 Strand LSZH Indoor Ribbon Fiber Optic Cable With High Fiber Density , Compact

Fiber

Fiber type(core/cladding dimension)

9/125,50/125,62.5/125

Transmission Characteristics

SMF

50/125

62.5/125

1310/1550(nm)

850/1300(nm)

850/1300(nm)

Max Attenuation(dB/km)

0.45/0.30

3.5/1.5

3.5/1.5

AVG Max Attenuation(dB/km)

0.40/0.25

3.0/1.0

3.0/1.0

Mini Bandwidth(MHZ·km)

---

400/400

160/500

Description

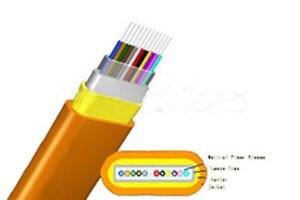

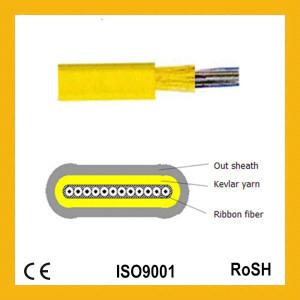

The flat 24core ribbon fiber are evenly bound with high tensile aramid yarn and protected by high quality outer sheath.


Characteristics

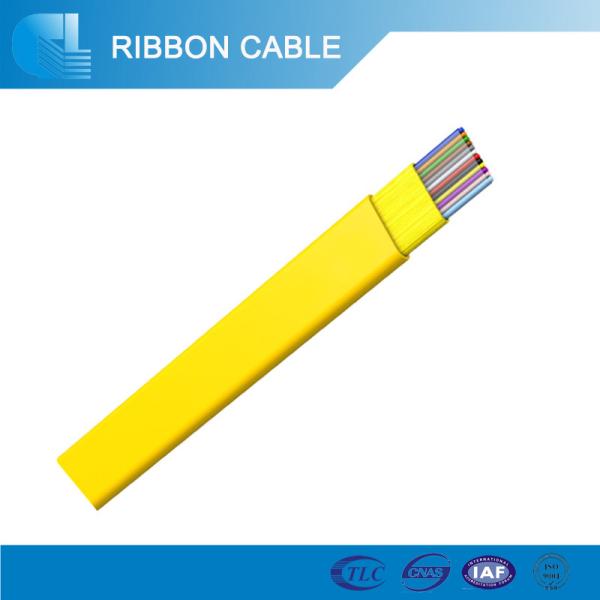

GJDFJV flat fiber ribbon cable uses as optical communication medium, the fiber wrapped with a layer of aramid yarn as strength member units, and the cable is completed with a flat PVC or LSZH jacket.
Aramid yarn as strength member make cable have excellent tensile strength
Compact structure with high fiber density, good performance of flexibility and crush resistance
The jacket anti-corrosion, anti-water, anti-ultraviolet radiation, flame-retardant and harmless to environment etc.
All dielectric structure protect it from electromagnetic influence
Scientific design with serious processing art

Standards:

Comply with standard 1258.4-2005, ICEA-596, GR-409, IEC 60794-2-30/31,etc; and meet the requirements of UL approval for OFNR.


Application:

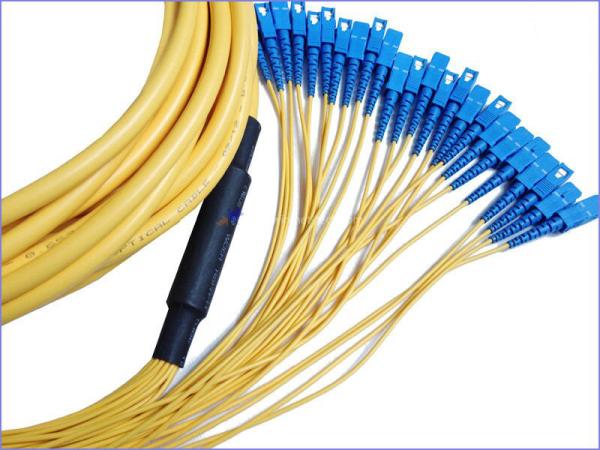

Ribbon optical fiber jumper and pigtail
Indoor cable distribution for any purpose
Interconnect between optical fiber cable distribution equipment

Our advantage

1. Professional cable manufacturer.
2. We provide good quality Fiber Optic cable with manufacture competitive price
3. Best delivery time
4. OEM service provide,Your own logo and own design are welcomed.
5. Long distance factory review by video talk
6. Can be customized production of fiber optic cable
7. 30 years cable service life , even 60 years cable service life.

High Density Compact SM 24 Strand LSZH Indoor Ribbon Fiber Optic Cable
