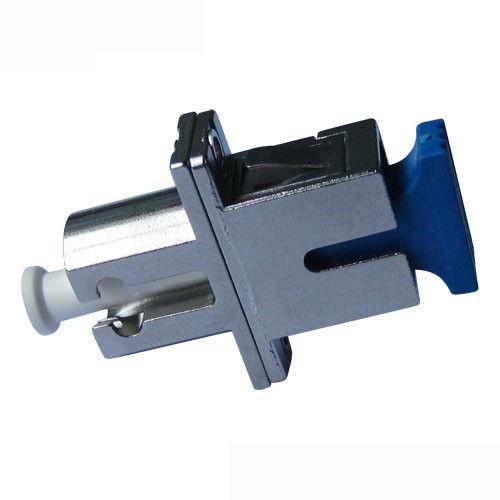

Hybrid Multimode Fiber Optic SC-LC ST-LC Optical Cable Adapter Pass ROHS SGS
Hybrid Multimode Fiber Optic SC-LC ST-LC Optical Cable Adapter Pass ROHS SGS
Hybrid Multimode Fiber Optic SC-LC ST-LC Optical Cable Adapter Pass ROHS SGS
Hybrid Multimode Fiber Optic SC-LC ST-LC Optical Cable Adapter Pass ROHS SGS
Hybrid Multimode Fiber Optic SC-LC ST-LC Optical Cable Adapter Pass ROHS SGS
Hybrid Multimode Fiber Optic SC-LC ST-LC Optical Cable Adapter Pass ROHS SGS
Hybrid Multimode Fiber Optic SC-LC ST-LC Optical Cable Adapter Pass ROHS SGS
Hybrid Multimode Fiber Optic SC-LC ST-LC Optical Cable Adapter Pass ROHS SGS
Specifications
Brand Name :
FURONG
Model Number :
Fiber Optic Adapter
Certification :
ROHS SGS
Place of Origin :
Guangdong, China
MOQ :
10 PCS
Price :
Neogotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30000 PCS per day
Delivery Time :
3-10 days
Packaging Details :
1 PCS per bag
Description

Hybrid Multimode Fiber Optic SC-LC ST-LC Optical Cable Adapter Pass ROHS SGS

Quick Details

  1. Type: FC-LC, SC-LC, ST-LC, FC-SC....
  2. Mode: Singlemode and Multimode
  3. End-face: UPC, APC
  4. Sleeve: Ceramic sleeve, Bronze sleeve
  5. Housing: Zinc alloy, Bronze, Plastic
  6. ROHS, SGS

Description:

An adapter is a mechanical device designed to align fiber-optic connectors. It contains the interconnect sleeve, that holds the two ferrules together.

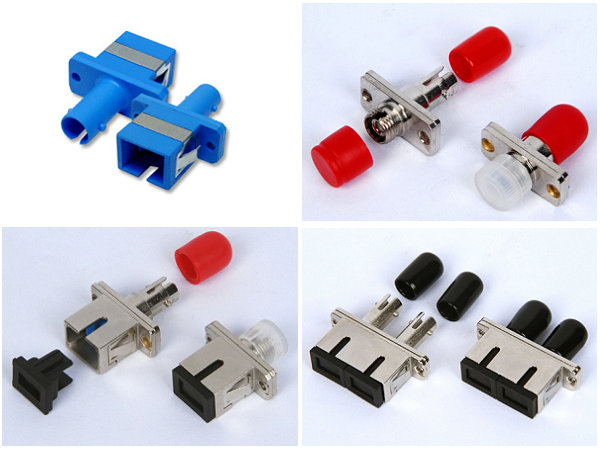

Hybrid fiber optic adapters offer a solution for hybrid applications where the two different kinds of fiber connectors or cable assemblies need to be linked with each other.

Features:

  1. Excellent Insertion Loss
  2. Good inerchangeability
  3. Applicable standard: IEC 61754-13
  4. Optional Hybrid adapter
  5. Environmentally Stable and Reliable
  6. Accurate Size

Application:

  1. Fiber optic communication network
  2. Optical Broadband Access Network
  3. CATV system
  4. Optic instrumentation
  5. Optic LAN
  6. Adapter docking

Specification:

Type SC/FC/ST/LC/MU/MTRJ/MPO
Insertion Loss(dB) SM≤0.2dB, MM≤0.3dB
Repeatability(dB) ≤0.1dB
Mechanism Durability(500 cycles, dB) ≤0.2dB
Temperature Range -40°C-+85°C
Material of sleeve Zirconia or Bronze

Reliability testing:

Item Test Name Additional Insertion Loss Additional Return Loss
1 Mechanical durability <0.2dB <5dB
2 Repeatability <0.2dB <5dB
3 Lock strength <0.2dB <5dB
4 Low strength <0.2dB <5dB
5 High temperature <0.2dB <5dB
6 Steaming <0.2dB <5dB
7 Temperature cycle <0.2dB <5dB
8 Vibration <0.2dB <5dB
9 Drop <0.2dB <5dB

Our advantage


1. Professional cable manufacturer.
2. We provide good quality Fiber Optic cable with manufacture competitive price
3. Best delivery time
4. OEM service provide,Your own logo and own design are welcomed.
5. Long distance factory review by video talk
6. Can be customized production of fiber optic cable
7. 30 years cable service life , even 60 years cable service life.

Hybrid Multimode Fiber Optic SC-LC ST-LC Optical Cable Adapter Pass ROHS SGS
