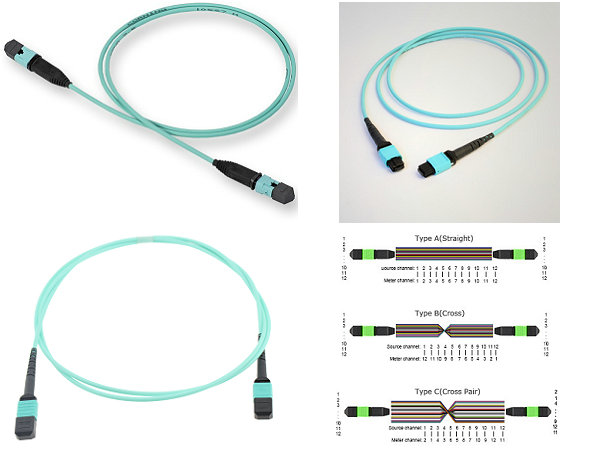

MTP 24 Core Fiber Optic Patch Cord MPO Trunk Cable OM3 OM4 with Aqua Color

Desciption:

MTP patch cords are used to make the interconnections between the MTP cassettes or connections to

active equipment with MPO/MTP interface. In cases where an MTP patch cord is connected (through an

MTP coupler) to another MTP patch cord, one of the two MTP connectors must be male (equipped with

pins).

The MPO / MTP harness cable assemblies, is deployed inside plug and play cassette modules.

This solution is a 12-colored 0.9mm cable utilizing a MPO / MTP connector on one end and generic

connectors (such as LC, SC, FC, etc.) on the other end. They are available for purchase as a bundle

with Gigalight's plug and play modules, MPO / MTP Adapter Plates, and other solutions. Available in

8/12/24 fibers versions as well as Multi-mode (Standard 50/125, 62.5/125, BI 10Gig 50/125) and

Single-mode fiber types.

Features:

1. MTP patch cords are available in 3 different wire map configurations: Straight, Total Flipped or Pair
2. Flipped
3. MTP patch cables are available in multi-mode and single-mode fiber cable.
4. Small Form Factor, 12Fibers or 24Fibers push/pull optical connectors
5. Jacketed cable is compliant with NFPA 262 Optical Fiber Nonconductive Plenum (OFNP) or
6. IEC-60332 Low Smoke Zero Halogen (LSZH) flame rating, compliant with Directive 2002/95/EC
7. (RoHS) and REACH SvHC.
8. MPO connector complies with IEC-61754-7 & EIA/TIA-604-5.
9. MPO / MTP on one end, with single-fiber connectors on another end.
10. MPO / MTP in 8/12/24 fibers interface for choices.
11. Single-fiber connector interface available in LC, SC, FC, E2000, etc.
12. 12-colored 0.9mm loose tube according to TIA-568C to cater for easy fiber loading.

Applications:

1. Telecommunication Networks
2. Computer networks
3. CATV networks
4. FTTx Termination
5. Gigabit Ethernet
6. Space saving in central offices, POPs and data centers
7. 40GBASE-SR4 and 100GBASE-SR10 per IEEE 802.3ba
8. Telecommunications networks and CATV networks.
9. LAN/WAN Premises.

Pre-eliminated MPO Technology-Polarity

The three polarity methods Type A, Type B and Type C are used to guarantee the right bi-directional

allocation

Specification:
