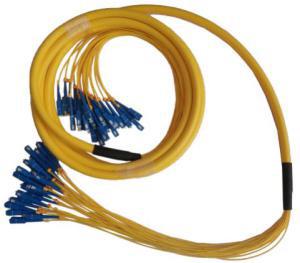

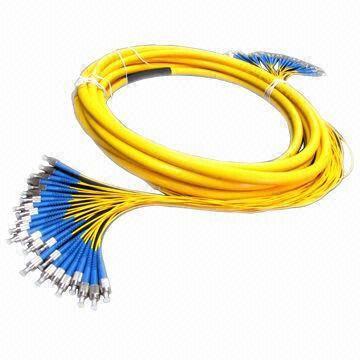

24 Fiber Breakout Optical Fiber Patch Cord PVC Jacket , Universal Fiber Optic Jumper
24 Fiber Breakout Optical Fiber Patch Cord PVC Jacket , Universal Fiber Optic Jumper
24 Fiber Breakout Optical Fiber Patch Cord PVC Jacket , Universal Fiber Optic Jumper
24 Fiber Breakout Optical Fiber Patch Cord PVC Jacket , Universal Fiber Optic Jumper
24 Fiber Breakout Optical Fiber Patch Cord PVC Jacket , Universal Fiber Optic Jumper
24 Fiber Breakout Optical Fiber Patch Cord PVC Jacket , Universal Fiber Optic Jumper
24 Fiber Breakout Optical Fiber Patch Cord PVC Jacket , Universal Fiber Optic Jumper
24 Fiber Breakout Optical Fiber Patch Cord PVC Jacket , Universal Fiber Optic Jumper
Specifications
Brand Name :
FURONG
Model Number :
SC-SC Break out patch cord
Certification :
ROHS
Place of Origin :
Guangdong China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
30,000 per month
Delivery Time :
3-10 working days after received your payment
Packaging Details :
Per fiber optic patch cord will have Individual Plastic Poly Bag
Cable Outer Diameter :
0.9mm, 2.0mm, 3.0mm
Fiber Types :
G652D, G655,G657A,G657B,OM1,OM2,OM3, OM4
Optional Connectors :
LC/ SC/FC/ST
Mode :
SingldeMode, MultiMode
Insertion Loss :
UPC< 0.2dB, APC<0.3dB
Return Loss (Back Reflection) :
UPC>55dB, APC>65dB
Polishing type :
UPC, APC
Jacket material :
PVC, LSZH, PU
Cores :
2,4,6,8~144cores
Description

24 Fiber Breakout Optical Fiber Patch Cord PVC Jacket , Universal Fiber Optic Jumper

Description:

Fiber Patch Cord consists of Ferrule, Connector parts and Cable.

SC connector is a push-on, pull-off connector with a locking tab.

Typical matched SC connectors are rated for 500 mating cycles and have an insertion loss of 0.2 dB.

Connector Type: FC,SC,LC,ST,MPO, MU, MTRJ, E2000, etc

Cable Type: G652, G655, G657, OM2, OM3, OM4

Jacket Material: PVC, LSZH, OFNP

Color: red, yellow, grey, aqua or customized.

Features:

  • Meets RoHS and Bell core GR 326-core standards
  • Custom Configurations Available at No Extra Charge
  • 3D fiber interferometer is available
  • Low insertion loss and high return loss
  • 12core, 24core, 48core, 72core, 96core, 144core...Availabe
  • Reliable performance, universal use
  • Available for many connector types
  • Low insertion loss, high return loss
  • Realize the active link of optic fiber transmission

Applications:

  • Optical access network
  • Telecommunication networks
  • Data processing networks
  • Fiber optic communication networks
  • CATV, LAN, WAN, Test &Measurement

Specification:

Parameter

Single Mode

Multi Mode

Basic

Fiber connector

FC, SC, LC, ST, MU, MTRJ, MPO, E2000

Ferrule End-face

PC

UPC

APC

UPC

Insertion Loss

≤0.2dB

≤0.2dB

≤0.3dB

≤0.2dB

Return Loss

≥50dB

≥55dB

≥60dB

≥35dB

Ceramic Ferrule Specification

125.5um concentricity

deviations:<=1um

127um concentricity

deviations:<=3um

Suitable Fiber

9/125um

50/125um,62.5/125um

End-face

Geometry

Radius of Curvature

7~25mm

5~12mm

N/A

Fiber Protrusion

≤50nm

≤100nm

N/A

Fiber Under Cut

≤100nm

≤100nm

N/A

Apex offset

≤50um

Mechanical

Exchangeability

≤0.2dB

Salt Spray

≤0.1dB

Drop

≤0.2dB(1.5M, 5 drops)

Vibration

IL ≤0.2dB(550Hz, 1.5mm)

Repeatability

≤ 0.1dB(1000 times)

Durability

> 1000 times

Operating Temperature

-40°C ~ +85°C

Our advantage


1. Professional cable manufacturer.
2. We provide good quality Fiber Optic cable with manufacture competitive price
3. Best delivery time
4. OEM service provide,Your own logo and own design are welcomed.
5. Long distance factory review by video talk
6. Can be customized production of fiber optic cable
7. 30 years cable service life , even 60 years cable service life.
