High Performance Single Mode And Multimode Fiber To Rj45 Media Converter

Description:

10/100M, 10/100/1000M remote manageable fiber media converters offer a high price/performance ratio; cover all functions of non-manageable fiber media converter including variety of data rate, SM/MM, single fiber and double fiber etc. with simple set-up and complete function management interface, it supports protocols like SNMP, WEB,TELNET and CONSOLE, and realizes the integrated management to all chassis.

Feature:

◆ Support 10Base-T, 100Base-TX,1000Base-T.

◆ Meet standards IEEE802.3z, IEEE802.3u, IEEE802.3x and IEEE802.3ah.

◆ With high performance auto-sensing exchanging chipset meeting industrial standard, securing steady and non-traffic jam data transmission and exchanging.

◆ Max.2046bytes packet at store-and-forward mode, Max. 9K bytes packet at cut-through mode.

◆ AUTO-MDIX at electrical port, convenient for the user.

◆ Max safety power 100W to ensure the stable work of the equipments.

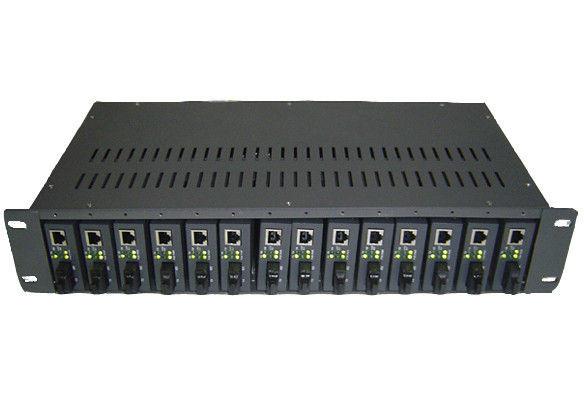

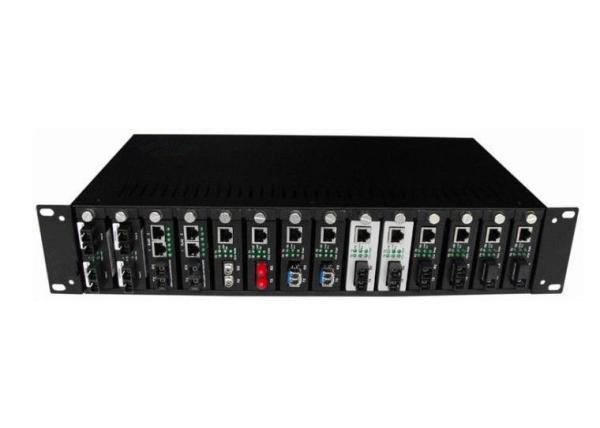

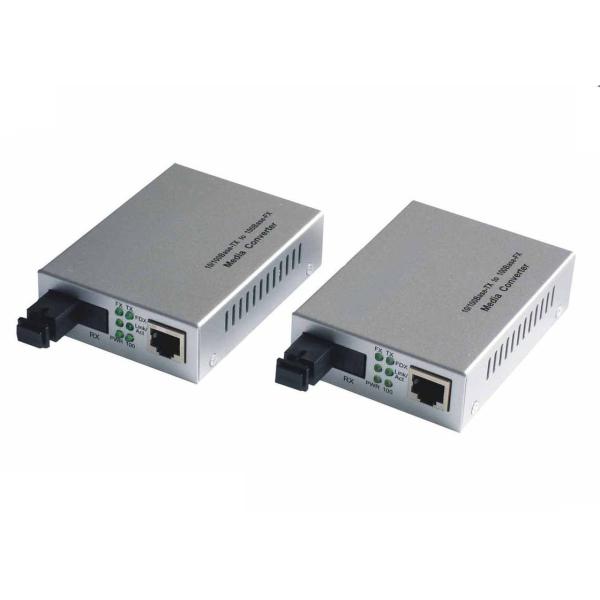

◆ Hot swap media converter( in card type) and management card,single fiber or double fiber(single fiber media converters should be used in pair), standalone t type or 16 slots chassis are optional

◆ Low power consumption, low heat, standalone type with 10W special communication power supply, chassis with dual redundant power supply.

Fiber Port:

◆ Connector: ST, SC, FC
◆ Operating wavelength: 850nm, 1310nm at Multi-mode; 1310nm, 1550nm at single mode.
◆ Optical fibers: Multi-mode: 50/125,62.5/125,100/140um;
Single-mode: 8.3/125,8.7/125,9/125,10/125um

Ethernet Interface:

◆ Meet standards: IEEE802.3z, IEEE802.3u, IEEE802.3x and IEEE802.3ah
◆ Data rate: 10Mbps, 100Mbps, 1000M half/full duplex auto-sensing
◆ Connector: RJ-45
◆ UTP CAT5 or CAT5E connecting with RJ-45, transmission distance at 100m.

Our advantage

1. Professional manufacturer.
2. We provide good quality Fiber Optic solution with manufacture competitive price
3. Best delivery time
4. OEM service provide,Your own logo and own design are welcomed.
5. Long distance factory review by video talk
6. Can be customized production of fiber optic solution

Basic working environment:

◆ Storage Temp: -10~70℃

◆ Operating Temp: 0~50℃
◆ Humidity: 5%~90%(non-condensing)
◆ Dimension(standalone): 156mm(W)*128mm(D)*32mm(H)
◆ Power supply: 85VAC~265VAC or -40VDC~-57VDC
