SPC Polishing MU Fiber Optic Connector 1.25mm Ferrule for CATV Network
SPC Polishing MU Fiber Optic Connector 1.25mm Ferrule for CATV Network
SPC Polishing MU Fiber Optic Connector 1.25mm Ferrule for CATV Network
SPC Polishing MU Fiber Optic Connector 1.25mm Ferrule for CATV Network
Specifications
Brand Name :
FURONG
Model Number :
Fiber Optic Connector
Certification :
ROHS SGS
Place of Origin :
Guangdong, China
MOQ :
1000 PCS
Price :
Neogotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30000 PCS per day
Delivery Time :
3-10 days
Packaging Details :
200 PCS per bag
Description

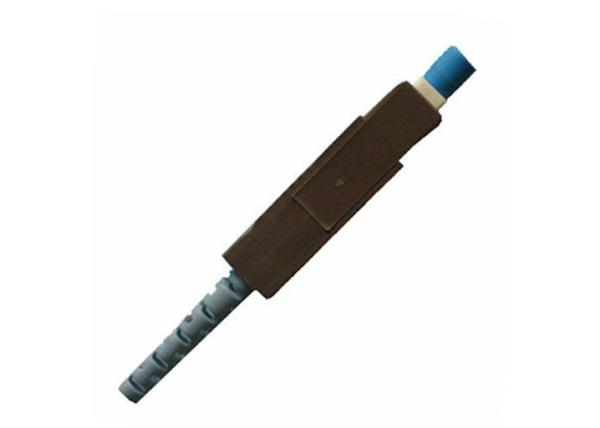

SPC Polishing MU Fiber Optic Connector 1.25mm Ferrule for CATV Network

Qick Detail:

  1. Name:MU optical fiber connector
  2. Include: Dust cap, Housing, Stopper, Spring, Boot
  3. Type: duplex
  4. Material: Plastic, Zinc Alloy, Bronze
  5. Housing color: blue, Beige, Green, Aqua
  6. Boot color: Yellow, Beige, Aqua, White, Red, Black, Green…

Features:

  1. Superior qualified standard PC, APC, UPC, SPC polishing
  2. FC, SC, LC, MU, ST, MT-RJ, etc connector
  3. Good exchange ability and good durability;
  4. Available in fiber bunch, ribbon fan-out, pigtail available;
  5. φ0.9mm, φ2.0mm, φ3.0mm fiber optic cable optional
  6. Single mode (9125) or multi mode (50125 or 62.5125) fiber available

Applications:

  1. CATV, metro Test equipment

  2. Telecommunication networks

  3. Local area networks (LAN)

  4. Wide area networks (WAN)

  5. Optical Fiber Test and Measurement Systems
  6. Optical Fiber Communication
  7. Optical Transmission Backbone

Specification:

Parameter Unit Data
FC/PC FC/APC SC/PC SC/APC ST/PC ST/APC MU/PC LC/PC LC/APC
Insertion Loss dB ≤0.3(single mode); ≤0.1(multi mode)
Repeatability dB ≤0.1
Interchangeability dB ≤0.2
Return Loss SM dB ≥45 ≥60 ≥45 ≥60 ≥45 ≥60 ≥50 ≥50 ≥60
MM dB ≥36without APC connector
Mating cycle cycle 1000
Operating temperature -40~+80 -25~+70 -40~+80 -25~+70

Our advantage


1. Professional manufacturer.
2. We provide good quality Fiber Optic solution with manufacture competitive price
3. Best delivery time
4. OEM service provide,Your own logo and own design are welcomed.
5. Long distance factory review by video talk
6. Can be customized production of fiber optic solution
