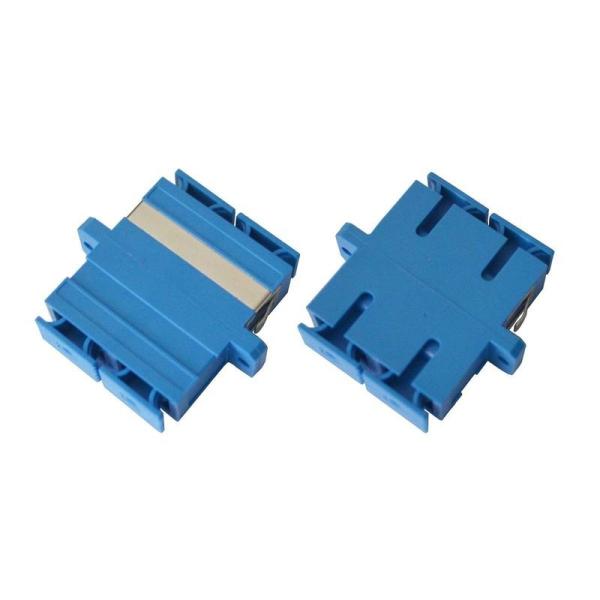

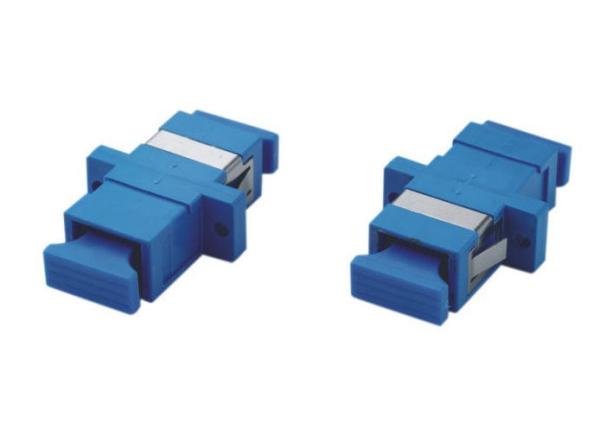

Optic LAN UPC SC SM Fiber Optic Network Adapter with Ceramic Sleeve
Optic LAN UPC SC SM Fiber Optic Network Adapter with Ceramic Sleeve
Optic LAN UPC SC SM Fiber Optic Network Adapter with Ceramic Sleeve
Optic LAN UPC SC SM Fiber Optic Network Adapter with Ceramic Sleeve
Optic LAN UPC SC SM Fiber Optic Network Adapter with Ceramic Sleeve
Optic LAN UPC SC SM Fiber Optic Network Adapter with Ceramic Sleeve
Optic LAN UPC SC SM Fiber Optic Network Adapter with Ceramic Sleeve
Optic LAN UPC SC SM Fiber Optic Network Adapter with Ceramic Sleeve
Specifications
Brand Name :
FURONG
Model Number :
Fiber Optic Adapter
Certification :
ROHS SGS
Place of Origin :
Guangdong, China
MOQ :
10 PCS
Price :
Neogotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
30000 PCS per day
Delivery Time :
3-10 days
Packaging Details :
1 PCS per bag
MATERIAL :
PLASTIC
FIBER CORE :
SIMPLE OR DUPLEX
SLEEVE :
CERAMIC
FLANGE :
WITH OR WITHOUT
INSERTION LOSS :
0.2DB
MATING TIMES :
500
Description

Optic LAN UPC SC SM Fiber Optic Network Adapter with Ceramic Sleeve

Quick Details

  1. Type: SC/UPC
  2. Mode: Singlemode
  3. Fiber core: Simplex, Duplex
  4. Structure: with flange, without flange
  5. Sleeve: Ceramic sleeve
  6. Housing: Plastic housing

Description:

Fiber Optic Adapter is the mechanical device designed to align fiber optic connectors. It contains the interconnect sleeve, that holds the two ferrules together.

Features:

  1. SC used pluggable tight locking structure
  2. Standardization and Uniformization of Metal Casing
  3. Zirconia or Bronze Sleeve
  4. Low Insertion Loss, high Return loss
  5. Precision mechanical dimension
  6. Good repeatability, interchangeability and environmental stability

Application:

  1. Equipment Test
  2. Local Area Network
  3. Optic instrumentation
  4. CATV system, Optic LAN
  5. Telecommunication Networks
  6. Fiber optic communication network
  7. Optical Broadband Access Network

Specification:

Type SC/FC/ST/LC/MU/MTRJ/MPO
Insertion Loss(dB) SM≤0.2dB, MM≤0.3dB
Repeatability(dB) ≤0.1dB
Mechanism Durability(500 cycles, dB) ≤0.2dB
Temperature Range -40°C-+85°C
Material of sleeve Zirconia or Bronze

Reliability testing:

Item Test Name Additional Insertion Loss Additional Return Loss
1 Mechanical durability <0.2dB <5dB
2 Repeatability <0.2dB <5dB
3 Lock strength <0.2dB <5dB
4 Low strength <0.2dB <5dB
5 High temperature <0.2dB <5dB
6 Steaming <0.2dB <5dB
7 Temperature cycle <0.2dB <5dB
8 Vibration <0.2dB <5dB
9 Drop <0.2dB <5dB

Our advantage


1. Professional manufacturer.
2. We provide good quality Fiber Optic solution with manufacture competitive price
3. Best delivery time
4. OEM service provide,Your own logo and own design are welcomed.
5. Long distance factory review by video talk
6. Can be customized production of fiber optic solution

Optic LAN UPC SC SM Fiber Optic Network Adapter with Ceramic Sleeve

Product tags

sma fiber optic connector

,

sma connector fiber optic

,

12 port sc fiber patch panel
