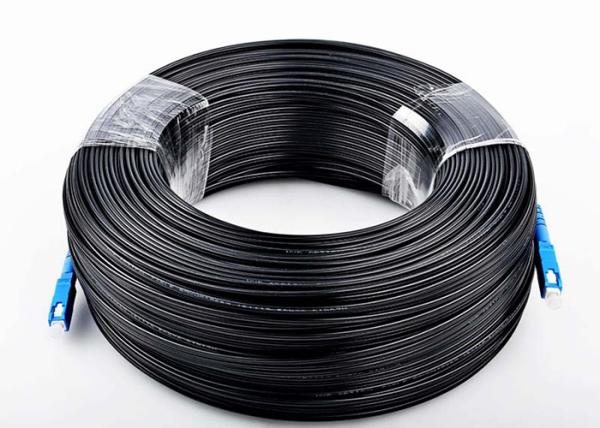

SC-SC Fiber Optic Drop Cable Patch Cord Singlemode G657A For FTTH Projects
SC-SC Fiber Optic Drop Cable Patch Cord Singlemode G657A For FTTH Projects
SC-SC Fiber Optic Drop Cable Patch Cord Singlemode G657A For FTTH Projects
SC-SC Fiber Optic Drop Cable Patch Cord Singlemode G657A For FTTH Projects
Specifications
Brand Name :
FURONG
Model Number :
SCSCSMDR00X
Certification :
ROHS, SGS, ISO
Place of Origin :
CHINA
MOQ :
1
Price :
NEGOTIABLE
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20000PCS
Delivery Time :
DEPENDS ON QUANTITY
Packaging Details :
PE BAG
FIBER TYPE :
G657A1, G657A2
JACKET MATERIAL :
PVC, LSZH
FIBER STRAND :
Simplex or Duplex or 4Core
CONNECTOR TYPE :
SC, SCAPC
STANDARD :
SGS, ROHS, TELCORDIA, IEC
CABLE LENGTH :
CUSTOMIZED
Description

Description:

The solution for passing the fiber to the end-user is called FTTH, which means Fiber To The Home. As the development of FTTH project deployments, FTTH is easily affordable technology with many advantage, such as more bandwidth, reliability and low cost in order to meet the next generation customers' demand. FTTH can provide the customers with information such as DATA, VOICE, VIDEO (TRIPLE PLAY) using only one fiber. According to this situation, to better compatible with FTTH drop cable, a new type of connector-SC FTTH Connector, with PC, APC polishing, which has been well used in the FTTH project.

Features:

--Low cost;

--High return loss;

--Low insertion loss;

--Compliant with RoHS;

--100% factory tested before delivery;

--Cable Material: PVC or LSZH optional;

--Designed for the FTTH drop cable;

--Better compliant with the requirements of installation;

--Compliant with Telcordia GR-326-CORE;

Applications :
1. CATV, metro test equipment;
2. Telecommunication networks;
3. Local area networks (LAN);
4. Wide area networks (WAN);
5. Premise installations;
6. FTTH projects

Optical Characteristics:

Fiber Type Various SM MM
Connector Type FC, SC, ST, LC, MU FC, SC, ST, LC, MU
Insertion Loss (Typical) ≤0.3dB ≤0.3dB
Return Loss (typical) PC ≥50dB ≥35dB
UPC ≥55dB ≥35dB
APC ≥65dB
Mating Durability ≤0.2dB
Storage Temperature 40℃～+ 80℃
Durability ≥1000 times
Working Temperature - 20℃～+ 80℃

SC-SC Fiber Optic Drop Cable Patch Cord Singlemode G657A For FTTH ProjectsSC-SC Fiber Optic Drop Cable Patch Cord Singlemode G657A For FTTH Projects
