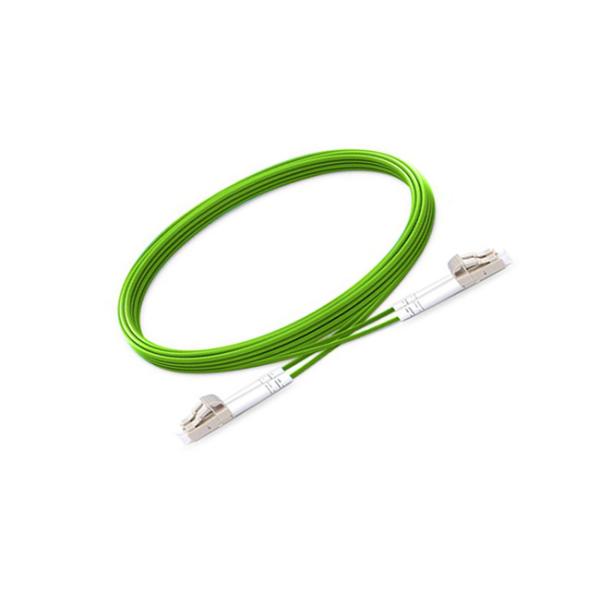

100G OM5 50 / 125 Wide Band Multimode LC LC Fiber Optic Patch Cables PVC / LSZH
100G OM5 50 / 125 Wide Band Multimode LC LC Fiber Optic Patch Cables PVC / LSZH
100G OM5 50 / 125 Wide Band Multimode LC LC Fiber Optic Patch Cables PVC / LSZH
100G OM5 50 / 125 Wide Band Multimode LC LC Fiber Optic Patch Cables PVC / LSZH
Specifications
Brand Name :
FURONG
Model Number :
SCLCOM5DX00x
Certification :
ROHS, SGS, ISO
Place of Origin :
CHINA
MOQ :
1
Price :
NEGOTIABLE
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20000PCS
Delivery Time :
DEPENDS ON QUANTITY
Packaging Details :
PE BAG
CABLE DIAMETER :
2.0 OR 3.0
FIBER TYPE :
OM5, Wide band multimode fiber
STRUCTURE :
simplex or duplex
CONNECTOR TYPE :
LC TO LC
Cable Color :
Lime Green
CABLE LENGTH :
1M OR CUSTOMIZED
Description

Description:

Fiber patch cord is an optical cable, used to connect optical device to another for signal routing. Each end of the cable is attached to a connector, so the cord may be plugged in. The MMF is a cost effecitive and relatively low connection los at each connector interface.

The OM5 is new MM fiber type cable compatible with OM4 and OM3 fiber cable but supporting higher bandwidth to meet the high speed rate requirement for the data center and higher speed internet requirement. OM5 fiber support at least four low cost wavelength int he 850-950nm range. enabling optimal support of emerging SWDM application.

Our fiber optic patch cords include single mode and multi mode cables available in a variety of lengths and colors

Features:

1. Plenum, Riser, LSZH fiber jacket for option

2. Good Exchange ablility and durability

3. Simplex or duplex or multicore available

4. User configurable length anc connector type

5. IEC, RoHS ext international standard compliant

6. Each product with test report

7. Compatible with OM3, OM4 fibers

Applications :
1. Short wavelength division multiplexing
2. 100G network installation
3. Local area networks (LAN);
4. Wide area networks (WAN);
5. Premise installations;
6. Data processing networks;
7. Video and military active device termination.

Optical Characteristics:

Fiber Type Various SM MM
Connector Type FC, SC, ST, LC, MU FC, SC, ST, LC, MU
Insertion Loss (Typical) ≤0.3dB ≤0.3dB
Return Loss (typical) PC ≥50dB ≥35dB
UPC ≥55dB ≥35dB
APC ≥65dB
Mating Durability ≤0.2dB
Storage Temperature 40℃～+ 80℃
Durability ≥1000 times
Working Temperature - 20℃～+ 80℃

100G OM5 50 / 125 Wide Band Multimode LC LC Fiber Optic Patch Cables PVC / LSZH100G OM5 50 / 125 Wide Band Multimode LC LC Fiber Optic Patch Cables PVC / LSZH
