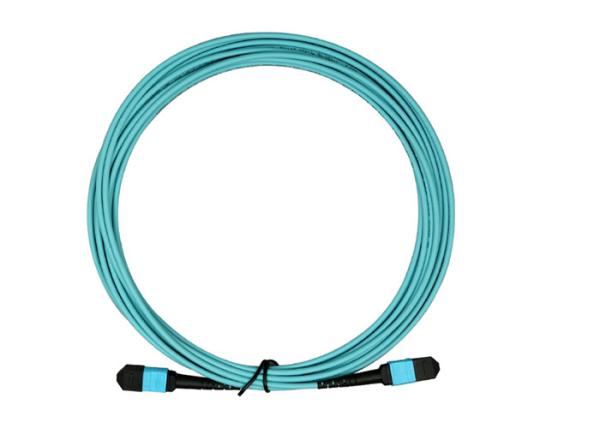

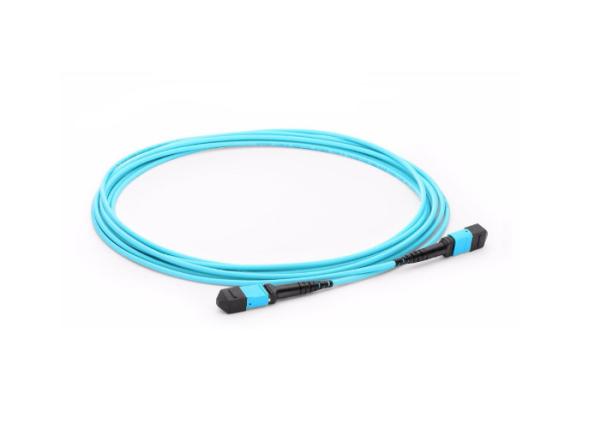

MPO Female - MPO Female 24C Premium Quality Fiber Optic Patch Cord for Data Center
MPO Female - MPO Female 24C Premium Quality Fiber Optic Patch Cord for Data Center
MPO Female - MPO Female 24C Premium Quality Fiber Optic Patch Cord for Data Center
MPO Female - MPO Female 24C Premium Quality Fiber Optic Patch Cord for Data Center
Specifications
Brand Name :
FURONG
Model Number :
MPO-MPO
Certification :
ROHS, SGS, ISO
Place of Origin :
CHINA
MOQ :
1
Price :
NEGOTIABLE
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
20000PCS
Delivery Time :
DEPENDS ON QUANTITY
Packaging Details :
PE BAG
FIBER TYPE :
OM4
0.9 FIBER :
TIGHT BUFFERED
FIBER STRAND :
24C
CONNECTOR TYPE :
MPO-MPO
POLISH :
UPC
COLOR :
AQUA
Description

Description:

MTP trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.
Please note: The US Conec MTP connectors are fully compliant with the MPO standards, achieving higher performance levels when compared to generic MPO connectors

Features:

--Compatible with OM3/OM4 Fiber trunks

--Customized cable length

--The cable can be in ribbon or bundle mini version

--MPO can be female or male version

Applications :

--Storag Area Networks using FCoE

--Equipment and work area cords in fiber 0ptic telecommunications and FTTH (Fiber To The Home)

--Large digital file transfer and direct links to Cisco 10G base+hardware

--Idea solution for data cnetre backbone infrustructure

Optical Characteristics:

PARAMETER VALUES UNIT
Single Mode Single Mode (Low Loss) Multi Mode
Insertion Loss ≤0.75 ≤0.35 ≤0.7 + Cable Length *0.003 dB
Return Loss ≥55 ≥20 dB
Endurance ≤0.2 ≤0.3 dB
Operating Temperature -10 ~ 70 ℃
Storage Temperature -40 ~ 85 ℃
Cable Length 0 ~ 100 M

MPO Female - MPO Female 24C Premium Quality Fiber Optic Patch Cord for Data CenterMPO Female - MPO Female 24C Premium Quality Fiber Optic Patch Cord for Data Center
