Amoured Fiber Optic Patch Cord with GYXTW Cable for Communication Network
Amoured Fiber Optic Patch Cord with GYXTW Cable for Communication Network
Amoured Fiber Optic Patch Cord with GYXTW Cable for Communication Network
Amoured Fiber Optic Patch Cord with GYXTW Cable for Communication Network
Amoured Fiber Optic Patch Cord with GYXTW Cable for Communication Network
Amoured Fiber Optic Patch Cord with GYXTW Cable for Communication Network
Specifications
Brand Name :
FURONG
Model Number :
GYXTW patch cord
Certification :
ROHS
Place of Origin :
Guangdong China
MOQ :
100pcs
Price :
Negotiation
Payment Terms :
Western Union, L/C, T/T
Supply Ability :
30,000 per month
Delivery Time :
3-10 working days after received your payment
Packaging Details :
Per fiber optic patch cord will have Individual Plastic Poly Bag
Fiber Types :
G652D, G655,G657A,G657B,OM1,OM2,OM3, OM4
Optional Connectors :
LC/ SC/FC/ST
Mode :
SingldeMode, MultiMode
Insertion Loss :
UPC< 0.2dB, APC<0.3dB
Return Loss (Back Reflection) :
UPC>55dB, APC>65dB
Polishing type :
UPC, APC
Jacket material :
PE, LSZH
Cores :
2,4,6,8~144cores
Description

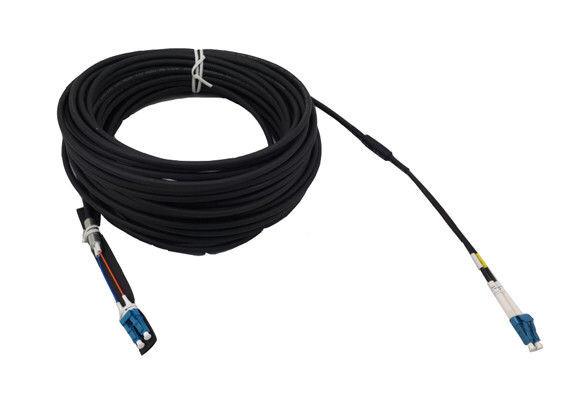

Amoured Fiber Optic Patch Cord with GYXTW Cable for Communication Network

Quick Details:

  1. Type: Outdoor Fiber Patch Cord
  2. Mode: Single mode and Multimode
  3. Cable Fan-out: 0.5M, 1M
  4. Ferrule End-face: PC, UPC, APC
  5. Cable core: 2core, 4core, 6core...customized
  6. Cable length: 1M, 2M, 3M….customized

Description:

Outdoor cable includes 2~144core bare fiber inside. The fan-out could be 0.9mm, 2.0mm and 3.0mm.

And the fan-out cable length is 0.5M or 1M.

Features:

  1. High tensile coefficient and stress coefficient
  2. Manufacture without damage to cable
  3. Cost cutting for maintenance
  4. Convenient for application, highly security
  5. Application without damage to cable
  6. Meets Telcordia End-face Geometry Requirements
  7. Custom Configurations Available at No Extra Charge

Applications:

  1. Telecommunication networks
  2. CATV, LAN, MAN, WAN, Test &Measurement
  3. Optical access network
  4. Fiber optic communication networks

Specification:

Item

Single mode

Ferrule End-face

PC

UPC

APC

Insert attenuation

≤0.3dB

≤0.3dB

≤0.3dB

Return loss

≥45dB

≥50dB

≥55dB

repeatability

≤0.1dB

≤0.1dB

≤0.1dB

Operation temperature

-20°C~+70°C(PVC)/-40°C~+90°C(LSZH/PU)

Outer diameter

1.6mm




Technical Data


Parameter


Unit


FC, SC, LC


ST, MU


MTRJ, MPO


E2000


SM


MM


SM


MM


SM


MM


SM


PC


UPC


APC


PC


PC


UPC


PC


PC


UPC


PC


PC


APC


Insertion Loss


dB


≤0.3


≤0.2


≤0.3


≤0.2


≤0.3


≤0.2


≤0.2


≤0.3


≤0.2


≤0.2


≤0.3


≤0.3


Return Loss


dB


≥45


≥50


≥60


≥30


≥45


≥50


≥30


≥45


≥50


≥35


≥55


≥75


Repeatability


dB


≤0.1


Durability


dB


≤0.2dB typical change, 1000 matings


Operating temperature


ºC


-20 ~ +75


Storage temperature


ºC


-40 ~ +85



Ordering Information


Connector


Fiber Core


Cable
Diameter


Fiber Type


Polishing


Cable Jacket


Cable Color


Fiber
Length


LC
SC
FC
ST
D4
MU
DIN
SMA
MPO
MTRJ
E2000


Simplex
Duplex


0.9mm
2.0mm
3.0mm


SM:9/125um
MM:50/125um
MM:62.5/125um
OM3


PC
UPC
APC


PVC
LSZH


Yellow
Orange
Aqua
others


1M
2M
3M

10M
20M
30M


Our advantage
1. Professional cable manufacturer.
2. We provide good quality Fiber Optic cable with manufacture competitive price
3. Best delivery time
4. OEM service provide,Your own logo and own design are welcomed.
5. Long distance factory review by video talk
6. Can be customized production of fiber optic cable
7. 30 years cable service life , even 60 years cable service life.
