LSZH FTTX / FTTH Drop Cable , Single Mode Aerial Fiber Optic Cable
LSZH FTTX / FTTH Drop Cable , Single Mode Aerial Fiber Optic Cable
LSZH FTTX / FTTH Drop Cable , Single Mode Aerial Fiber Optic Cable
LSZH FTTX / FTTH Drop Cable , Single Mode Aerial Fiber Optic Cable
LSZH FTTX / FTTH Drop Cable , Single Mode Aerial Fiber Optic Cable
LSZH FTTX / FTTH Drop Cable , Single Mode Aerial Fiber Optic Cable
Specifications
Brand Name :
FURONG
Model Number :
GJYFXCH
Certification :
ISO9001
Place of Origin :
Guangdong, China
MOQ :
100 Km
Price :
negotiation
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
10,000KM per Month
Delivery Time :
3-10 days
Packaging Details :
1Km per wooden drum
Description

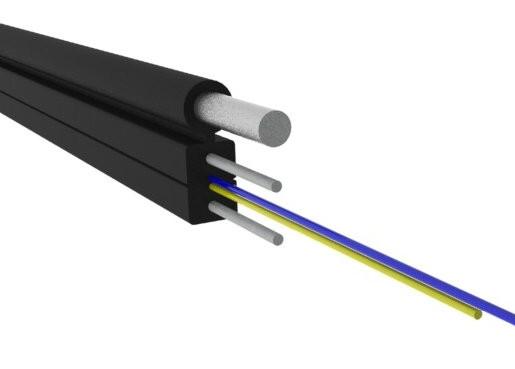

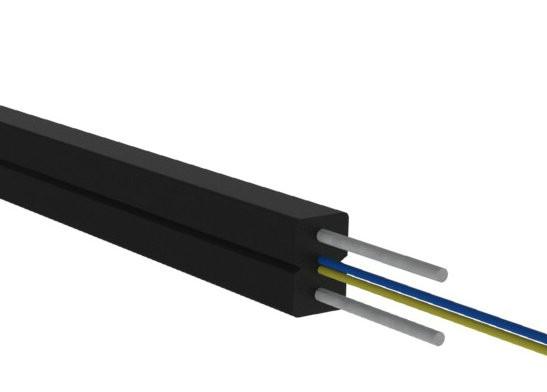

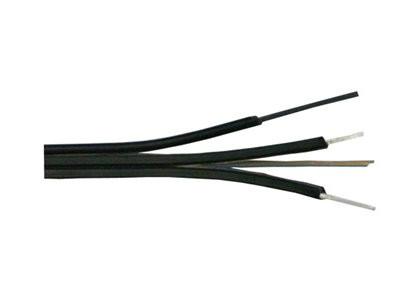

LSZH FTTX / FTTH Drop Cable , Single Mode Aerial Fiber Optic Cable

FTTH & FTTX cables include indoor and outdoor applications. Fiber count from 1fiber to 8fibers as per requested, G652D and G657A fibers available, with LSZH jacket, FRP strength member & Steel strength member. part number: GJXH, GJXFH, GJYXCH, GJYXFCH, GYPHA, GYPFHA...

Characteristics

Special fiber provides high bandwidth and excellent communication transmission property

Two parallel strength members ensuring good performance of crush resistance to protect the fiber

Simple structure, light weight and high practicability

Novel flute design, easily strip and splice, simplify the installation and maintenance

Single steel wire as additional strength member ensuring good performance of tensile strength

·Fiber Parameters

No

Item

Unit

Specification

G.657A1

1

Mode Filed Diameter

1310nm

μm

9.0±0.4

1550nm

μm

10.1±0.5

2

Cladding Diameter

μm

124.8±0.7

3

Cladding Non- Circularity

%

≤0.7

4

Core-Cladding Concentricity Error

μm

≤0.5

5

Coating Diameter

μm

245±5

6

Coating Non-Circularity

%

≤6.0

7

Cladding -Cladding Concentricity Error

μm

≤12.0

8

Water Cutoff Wavelength

nm

λcc ≤1260

9

Attenuation(max.)

1310nm

dB/km

≤0.4

1550nm

dB/km

≤0.3

10

Macro-Bending Loss

1turn ×radius @1550nm

dB

≤0.75

1turn ×radius @1550nm

dB

≤1.5

·Cable Parameters

Items

Specifications

Fiber Count

2

Colored Coating Fiber

Dimension

250±15μm

Color

Blue, Orange

Strength Member

Dimension

0.5mm

Material

FRP

Self--Supporting Member

Dimension

1.0mm

Material

Steel

jacket

Dimension

5.0±0.2mm×2.0±0.1mm

Material

LSZH

Color

Black

·Mechanical and Environmental Characteristics

Items

Unit

Specifications

Tension (Long Term)

N

300

Tension (Short Term)

N

600

Crush (Long Term)

N/10cm

500

Crush (Short Term)

N/10cm

1000

Min. Bend Radius (Dynamic)

mm

10D

Min. Bend Radius (Static)

mm

20D

Installation Temperature

℃

-10~+50

Operating Temperature

℃

-20~+60

Storage Temperature

℃

-20~+60

Shiping

1. from 1km to 4km or other required,1 drum with cartoon box, 18drums/package

2. pakcing size:depend on cable size and packing length

3. Item shipped in 3-15 working days after payment is received depends on the quantity of the order.

Our advantage


1. Professional cable manufacturer.
2. We provide good quality Fiber Optic cable with manufacture competitive price
3. Best delivery time
4. OEM service provide,Your own logo and own design are welcomed.
5. Long distance factory review by video talk
6. Can be customized production of fiber optic cable
7. 30 years cable service life , even 60 years cable service life.
