1 - 4 Core Metal Non-Metal Ftth Fiber Optic Drop Cable With 2 Strength Member
1 - 4 Core Metal Non-Metal Ftth Fiber Optic Drop Cable With 2 Strength Member
1 - 4 Core Metal Non-Metal Ftth Fiber Optic Drop Cable With 2 Strength Member
1 - 4 Core Metal Non-Metal Ftth Fiber Optic Drop Cable With 2 Strength Member
Specifications
Brand Name :
FURONG
Model Number :
FTTH Self Support Bow-type 2 core
Certification :
ROHS
Place of Origin :
Guangdong, China (Mainland)
MOQ :
100KM
Price :
negotiation
Payment Terms :
T/T or western Union, D/P
Supply Ability :
10,000km per month
Delivery Time :
7 working days after received your payment
Packaging Details :
Wooden drum，paper case
Jacke :
PVC or LSZH
Steel :
0.45mm
core :
2
Fiber :
G652D, G657A
Shape or structure :
can be produced as per buyer's request
OEM :
acceptable
Description

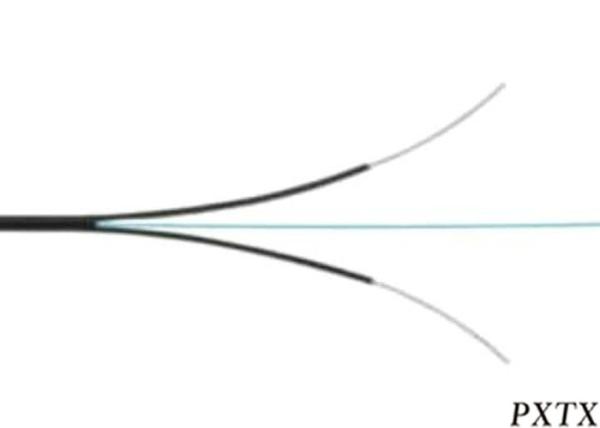

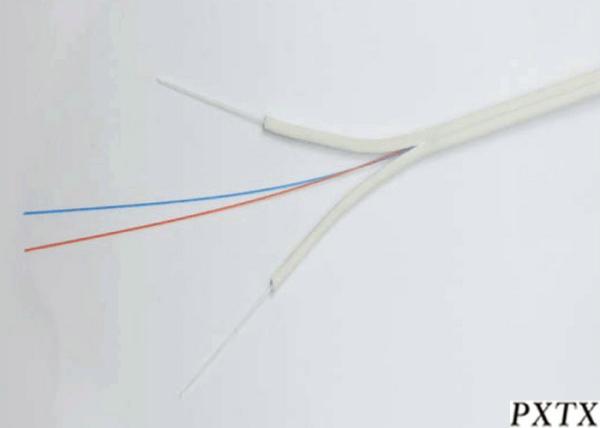

1 - 4 Core Metal Non-Metal Ftth Fiber Optic Drop Cable With 2 Strength Member

FTTH & FTTX cables include indoor and outdoor applications. Fiber count from 1fiber to 8fibers as per requested, G652D and G657A fibers available, with LSZH jacket, FRP strength member & Steel strength member. part number: GJXH, GJXFH, GJYXCH, GJYXFCH, GYPHA, GYPFHA...

Cable Parameters

Fiber core

Cable

type

Size

mm

Weight

kg/km

Tensile force

long/short term

(N)

Crush force

long/short term

(N/100mm)

Applicable temperature range

1-4

GJXFH

3.0x2.0

9.0

40

80

500

1000

-20°C~+60°C

1-4

GJXH

3.0x2.0

9.5

100

200

1000

2200

Features

1, Good mechanical and environmental performance;

2, Flame-retardant properties to meet the requirements of the relevant standards;

3, The mechanical characteristics meet the requirements of the relevant standards;

4, Soft,flexible,easy to splice,and with big capacity date transmission;

5, Meet various requirements of market and clients.

Options

1, Fiber Type:G.652A/BCD,G6.57 or G655A/B/C single-mode fiber,A1a or A1b multimode fiber,or other types of fiber;

2, Jacket Material: Environmental flame-retardant polyvinyl chloride(PVC),environmental low smoke zero halogen flame-retardant polyolefin (LSZH),environmental thermoplastic polyurethane(TPU),or other contracted material;

3, Jacket Color:(including color of fiber )meets the requirements of relevant standards,or other contracted dimension;

4, Delivery Length:1KM or 2km ,or other contracted length

5, Other Requirements:other contracted special requests.

Application

  1. Adopted to FTTH indoor distribution
  2. As pigtail of communication equipment
  3. Suitable for communication equipment
  4. Can be installed conveniently

Our advantage

  1. Professional cable manufacturer.
  2. We provide good quality FTTH cable with manufacture competitive price
  3. Best delivery time
  4. OEM service provide,Your own logo and own design are welcomed.
  5. Long distance factory review by video talk
  6. Can be customized production of fiber optic cable
  7. 30 years cable service life , even 60 years cable service life.

1 - 4 Core Metal Non-Metal Ftth Fiber Optic Drop Cable With 2 Strength Member
