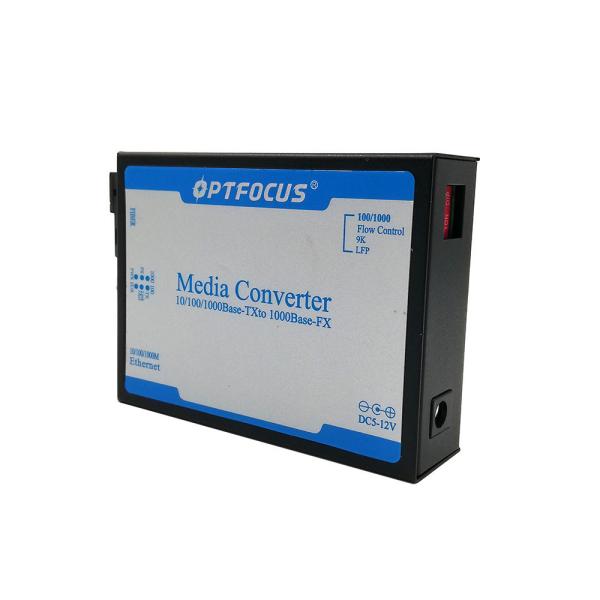

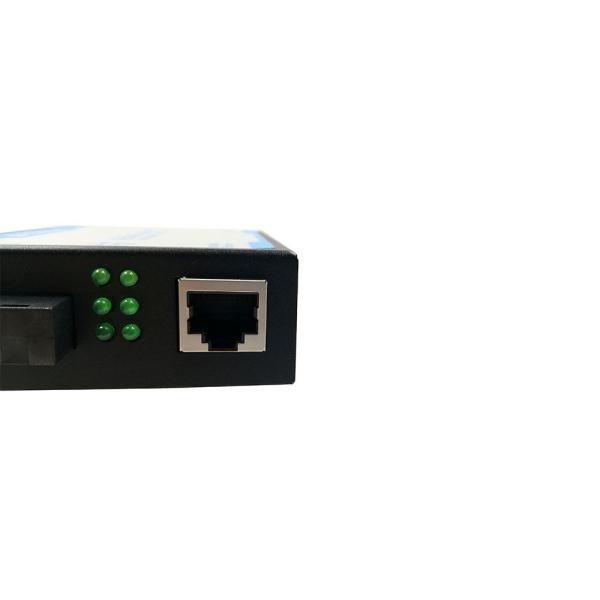

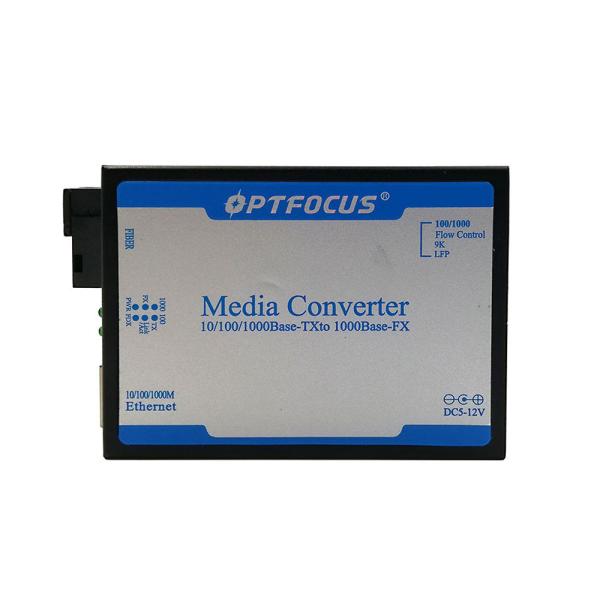

10 / 100M Fiber Media Converter Single Fiber SM SC 80KM , Black or Silver
10 / 100M Fiber Media Converter Single Fiber SM SC 80KM , Black or Silver
10 / 100M Fiber Media Converter Single Fiber SM SC 80KM , Black or Silver
10 / 100M Fiber Media Converter Single Fiber SM SC 80KM , Black or Silver
10 / 100M Fiber Media Converter Single Fiber SM SC 80KM , Black or Silver
10 / 100M Fiber Media Converter Single Fiber SM SC 80KM , Black or Silver
10 / 100M Fiber Media Converter Single Fiber SM SC 80KM , Black or Silver
10 / 100M Fiber Media Converter Single Fiber SM SC 80KM , Black or Silver
10 / 100M Fiber Media Converter Single Fiber SM SC 80KM , Black or Silver
10 / 100M Fiber Media Converter Single Fiber SM SC 80KM , Black or Silver
10 / 100M Fiber Media Converter Single Fiber SM SC 80KM , Black or Silver
10 / 100M Fiber Media Converter Single Fiber SM SC 80KM , Black or Silver
Specifications
Brand Name :
OPTFOCUS
Model Number :
OFS-WS01/02-80
Certification :
CE,FCC
Place of Origin :
Guangdong, China (Mainland)
MOQ :
10 Pairs
Price :
negotiated
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
30000 Pairs per Month
Delivery Time :
3-5 working days after received your payment
Packaging Details :
48*42.5*38 CM 40pcs per carton
Operating standards :
IEEE802.3u,10/100Base-TX and 100Base-FX
Connectors :
UTP Connector: RJ-45, 10/100Mbps; Fiber Connector: SC, 100Mbps
MAC addresses table :
1K
Fiber ( Singlemode) :
8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 90km)
Half Duplex :
back pressure
Full Duplex :
IEEE802.3xIEEE802.3x
Description

10 / 100M Fiber Media Converter Single Fiber SM SC 80KM , Black or Silver

OFS-WS01/02-80 : 10/100M Singlemode Single Fiber Media Converter

Main features

◆ The UTP port supports MDI/MDI-X auto crossover.

◆ Supporting 1600 bytes packet for management.

◆ The transmission of a channel optical signals can be completed by single fiber. It has doubled in quantity of fiber data transmission compared with twin fiber type.

◆ Auto negotiation function allows UTP port to auto select 10M or 100M and Full Duplex or Half Duplex

◆ Internal circuit of prevented thunder could greatly reduce damage of converters caused by thunderbolt induction.

◆ Indicator function of link fault (LFP): When optical fiber is at fault, the converter could stop all the link.

◆ Converter working mode could be chosen: Store and forward switch mode, Modified cut-through switch mode, or Converter mode.

Technical Specifications

Operating standards IEEE802.3u,10/100Base-TX and 100Base-FX
MAC addresses table

1K
Data buffer 128K
Connectors UTP Connector: RJ-45, 10/100Mbps; Fiber Connector: SC, 100Mbps
Cable UTP: Cat. 5 UTP cable (the max distance up to100m)
Fiber ( Singlemode) 8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 90km)
Flow Control

Full Duplex: IEEE802.3x

Half Duplex: back pressure


Order Information

Model

Product description

OFS

WS01/02

-xx

10/100M Singlemode Single Fiber Converters must be used and orderd in couples.

One set of WS01 must be connected with another set of WS02 for using.

WS01 transmitted optical wavelength 1310nm, receive optical wavelength 1550nm;

WS02 transmitted optical wavelength 1550nm, receive optical wavelength 1310nm.

The max distance of fiber is up to 20, 40, 60, 80 ,100,120km. XX is the amount of distance.

Fiber Optic Information

Type connector Max distance Wavelength TX power Sensitivity Link Budget
OFS-WS01/02-20 SC/FC/ST 20km 1310/1550nm -14~-6dBm -32dBm 18dBm
OFS-WS01/02-40 SC/FC/ST 40km 1310/1550nm -8/-9~-3dBm -35dBm 27/26dBm
OFS-WS01/02-60 SC/FC/ST 60km 1310/1550nm -5/-7~0dBm -37dBm 32/30dBm
OFS-WS01/02-80 SC/FC/ST 80km 1310/1550nm -3/-5~2dBm -37dBm 34/32dBm
