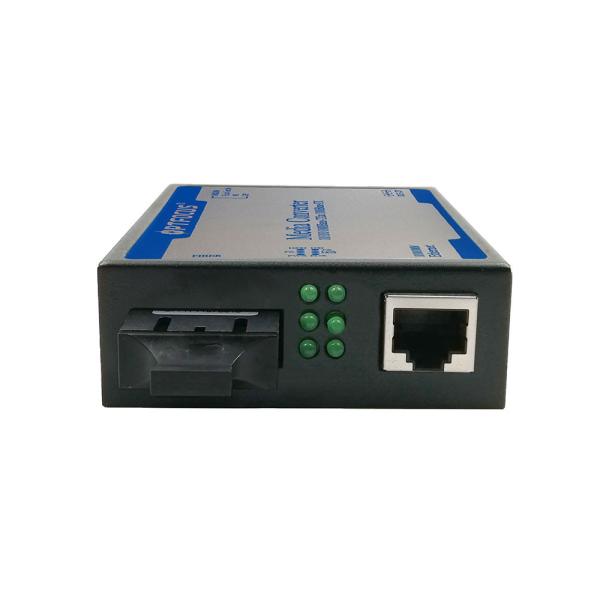

Gigabit Fiber Optical Media Converter 10 / 100 / 1000M 40Km 1310nm
Gigabit Fiber Optical Media Converter 10 / 100 / 1000M 40Km 1310nm
Gigabit Fiber Optical Media Converter 10 / 100 / 1000M 40Km 1310nm
Gigabit Fiber Optical Media Converter 10 / 100 / 1000M 40Km 1310nm
Specifications
Brand Name :
OPTFOCUS
Model Number :
OFS-GS-40
Certification :
CE,FCC
Place of Origin :
Guangdong, China(Mainland)
MOQ :
2 pieces
Price :
negotiated
Payment Terms :
T/T, L/C, Western Union, Paypal
Supply Ability :
10000 Pieces per Month
Delivery Time :
3-5 Working Days after Payment Received
Packaging Details :
48*42.5*38 CM 40pcs per carton
Products :
Media Convertors
Max distance :
40 KM
Power :
5V 1A/ 2A
Delivery Detail :
3-8 working days
Data Rate :
10/100/1000M
Fiber type :
Single Fiber
Description

Gigabit Fiber Optical Media Converter 10 / 100 / 1000M 40Km 1310nm

OFS-GS-40 : 10/100/1000M Gigabyte Optical Fiber Media Converter

It is easy for users to observe and diagnose the failure of converters.OFS Series Gigabit Converters could be used alone; but Converter Card should be inserted to 16 slots RACK supplied by OFS Crop. which is suitable for the use of Network Centre.

OFS Series Gigabit Fiber Media Converter can convert Optical－Electric Ethernet signals between 10/100/1000MUTP interface (TX) and 1000M optical fiber interface (FX). The traditional 10/100/1000M gigabit Ethernet can be extended to the distance of 100km through optical fiber link.

The performance and quality of the products are excellent because of adopting latest Gigabit IC from USA and Taiwan. 6 Group LED indicated lights could fully monitor the working conditions of converters.

Technical Specifications

Operating standards IEEE802.3z/AB, 1000Base-T and 1000Base-SX/LX
MAC address table 4K
Data Buffer 256K
Connector UTP: RJ-45,10/100/1000Mbps; Fiber: SC,1000Mbps
Power

AC 220V(170-260V) 50Hz; DC 5V,2A
Flow control

Full Duplex: IEEE802.3x

Half Duplex: back pressure.
Storage temperature -20 ～ +70℃
Ambient temperature 0 ～ +50℃
Humidity 5% ～ 90%
Dimensions 40 (high) x 110 (width) x 140 (length) mm
Cable

UTP cable: Cat 5e or Cat 6 (the max distance up to 100m)

Fiber : multimode : 50/125, 62.5/125μm (the max distance up to 550/224m)

singlemode : 8.3/125, 8.7/125, 9/125μm (the max distance up to 100km)

Fiber Information

Model Connector Fiber type Max distance Wavelength

TX power

 Sensitivity Link Budget
OFS-GM SC Multimode 220/ 550m 850nm -11～-3dBm -18dBm 7dBm
OFS -GS-20 SC Singlemode 20km 1310nm -10～-3dBm -21dBm 11dBm
OFS -GS-40 SC Singlemode 40km 1310nm -4～0dBm -25dBm 21dBm
OFS -GS-60 SC Singlemode 60km 1310nm 0～3dBm -26dBm 26dBm
OFS -GS-80 SC Singlemode 80km 1550nm -2～2dBm -26dBm 24dBm
OFS -GS-100 SC Singlemode 100km 1550nm 1～3dBm -27dBm

28dBm

Main features

◆Supporting flow control

◆Adopting internal power supply

◆Auto negotiation function allows UTP ports to auto select 10/100/1000M and Full Duplex or Half Duplex.

◆The UTP port supports the connection of MDI/MDI-X auto crossover.

◆Multimode Fiber: the max distance up to 220m/ 550m

Singlemode Fiber: the max distance up to 100km

◆Supporting the max 1536 byte Ethernet packet


Order Information

Model

Product description

OFS -GM

10/100/1000M Ethernet Multimode Converter: optical wavelength 850nm, optical fiber max distance up to 224m for 62.5μm , 550m for 50μm

OFS –GS-xx

10/100/1000M Ethernet Singlemode Fiber Converter: optical wavelength 1310 or 1550nm, optical fiber max distance up to 20, 40, 60, 80,100, or 120km, xx for the amount of distance.
