Specifications
Brand Name :
OPTFOCUS
Model Number :
OFS-GSF2DT16
Certification :
RoHS, CE
Place of Origin :
CHINA
MOQ :
1 pcs
Price :
negotiable
Payment Terms :
Western Union, T/T, L/C, paypal
Supply Ability :
5000 pcs per week
Delivery Time :
5-7 working days
Packaging Details :
300mm×230mm×95mm
Product Name :
16-port 10/100Mbps + 2-port 1000Mbps SFP Fiber
Product Model :
OFS-GSF2DT16
Power Supply :
Input Voltage: DC52V (48～55V)
Output Voltage :
DC48V
Product Weight :
0.5 KG
Product size :
207mm×140mm× 45mm
Description

Stable power supply Power Over Ethernet POE Switch 16 port10 / 100 / 1000M +2 Uplink 10 / 100 / 1000M for ip cameras

Product Description

Technical items Description
Product Name 16-port 10/100Mbps + 2-port 1000Mbps SFP Fiber
Product Model OFS-GSF2DT16
Network Protocols IEEE802.3 10BASE-T; IEEE802.3i 10Base-T;IEEE802.3u;100Base-TX;IEEE802.3ab 100Base-T; IEEE802.3z 1000Base-X; IEEE802.3x;
Network Media 10BASE-T: Cat3,4,5 UTP(≤100 meter)
100BASE-TX: Cat5 or later UTP(≤100 meter)
Fiber Media Multi-mode: 2KM
Single-mode: 20/40/60/80KM
Performance Specification Bandwidth:7.2Gbps
Packet Buffer Memory:2M
Packet Forwarding Rate:148800pps/port
MAC Address Table:1K /port
PoE Specification PoE Standard: IEEE802.3af/ IEEE802.3at
PoE ports:16 port support PoE
Power Output:
Max. 15.4 watts (IEEE 802.3af)
Max. 30 watts (IEEE 802.3at)
PoE port Auto detect AF/AT devices
Output Voltage: DC48V
Power Pin Assignment:4/5+;7/8-
Power Type: End-span( Mid-span optional)
Forwarding Mode Store-and-Forward
LED Indicators Power: PWR; Link;POE ; Link/Act
Power Supply Input Voltage: DC52V (48～55V)
Working Environment Working temperature: -10～55℃ ; Storage temperature: -20～75℃
Relative Humidity: 5%~95 %( no condensation)
Installation DIN-Rail or Wall mounts,Optional,Default device is not
Packing List 1× Media Converter
1×User Manual/Certificate of quality/Warranty card
1×power adapter
MTBF 100,000 hours
Weight & Size Product Weight: 0.5 KG
Packing weight: 1.1 KG
Product size (L×W×H): 207mm×140mm× 45mm
Packing size(L×W×H): 300mm×230mm×95mm
Warranty 1-years

Feature:

  • 16 Port 10/100Mbps with Auto Uplink™ , 2 port 1000Mbps SFP Slot
  • 16 Port support PoE, supports IEEE 802.3af(15.4W),IEEE802.3at PoE (30W)
  • Automatic MAC address learning and aging
  • 10/100Mbps Auto-negotiation , auto-MDI-MDI-X
  • LED indicators for monitoring power/link/activity
  • Supports10/100Mbps-Full/Half-duplex
  • Supports Wall-mount and DIN-Rail installation ,Optional.
  • Supports Broadcast Storm Control
  • Supports Relay output for power failure
  • Excellent heat elimination without cooling fan.
  • Apply to Urban Intelligent Traffic Monitoring System (ITS), Safe City.
  • Harsh environment or higher requirement
  • -10℃-55℃operating temperature range.

Product Exhibition

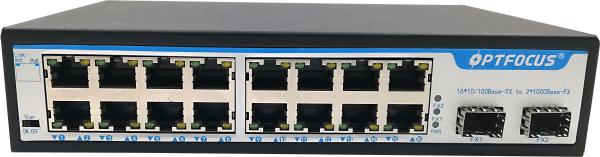

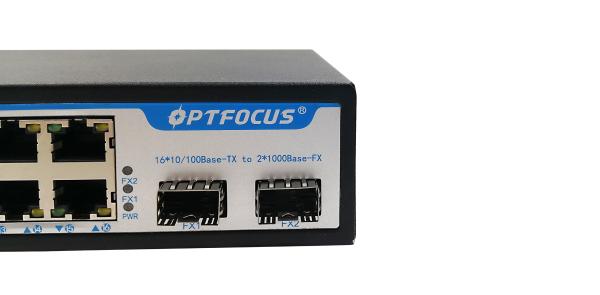

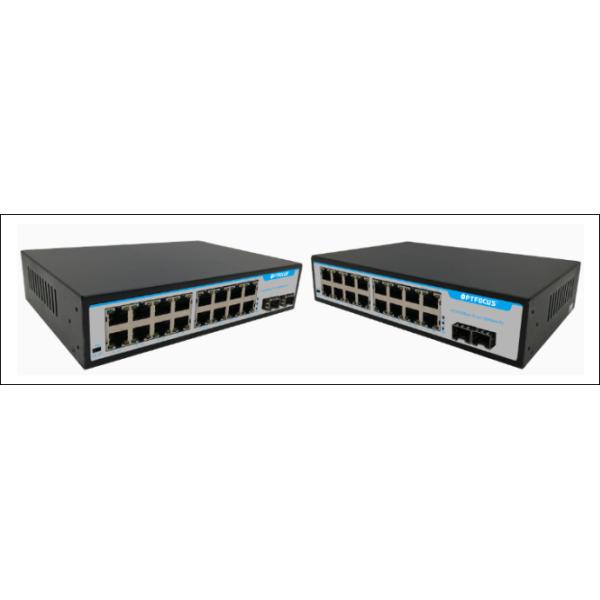

16ports 100M PSE + 2ports 1000M SFP Fiber Optical Ethernet switch

Stable Power Supply PoE Network Switch 16 Port 10 / 100 / 1000M 2 Uplink 10 / 100 / 1000M For Ip Cameras

Stable Power Supply PoE Network Switch 16 Port 10 / 100 / 1000M 2 Uplink 10 / 100 / 1000M For Ip Cameras

Stable Power Supply PoE Network Switch 16 Port 10 / 100 / 1000M 2 Uplink 10 / 100 / 1000M For Ip Cameras

Stable Power Supply PoE Network Switch 16 Port 10 / 100 / 1000M 2 Uplink 10 / 100 / 1000M For Ip Cameras

Application

Stable Power Supply PoE Network Switch 16 Port 10 / 100 / 1000M 2 Uplink 10 / 100 / 1000M For Ip Cameras
